This guide will cover how to replace the windshield wipers in a 2019 Chevrolet Colorado.

The guide covers how to take off the windshield wipers as well as how to reinstall the wipers. This is a truck so some may need to use a step stool in order to reach the wipers depending on how high your truck is raised.

This is a fairly easy task that only requires your hands to disassemble and reassemble.

Before you start this guide make sure your truck is off, parked, and on a flat surface just to ensure that you are completing this guide in a safe manner.

  1. MApeQt3UWZbLZU6M
    • Identify where the buttons are on the windshield wipers are.

    • Once the buttons are identified make note of where they are located on both wipers because of the different sizes they are slightly different on each.

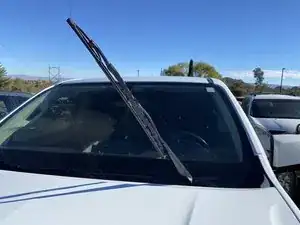

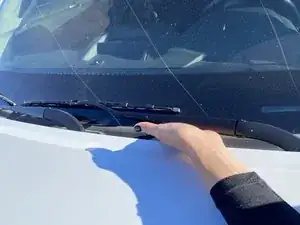

  2. j5oXjiZve5JhZ5Bh
    j5oXjiZve5JhZ5Bh
    MSOFoZyrjSiS53RR
    • Lift the drive side wiper up so that it is no longer touching the windshield.

    • This allows you to have better access to the wipers.

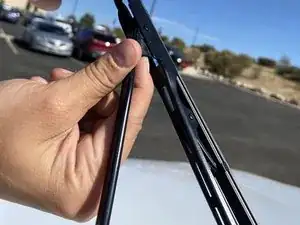

  3. JVIf2SsjLIsjLXNM
    JVIf2SsjLIsjLXNM
    gT3hkExCvjYP4HgG
    • Disconnect the blade on the driver side by pushing the small button down in order to release the wiper.

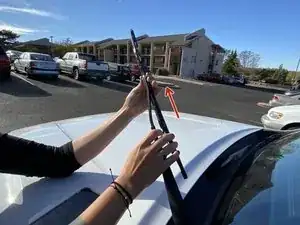

  4. rbMlYHNoYNVkeCab
    rbMlYHNoYNVkeCab
    mlvevlhqwv6bVMrx
    eQCspBVYvYcFtAnW

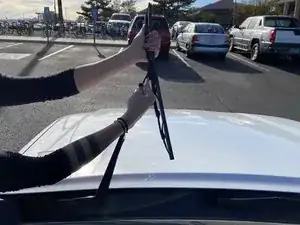

    • Slowly slide the wiper off of the wiper arm by pulling it back and away from the windshield.

    • The wiper arm is like a hook so make sure that you completely unhook the metal piece from the wiper blade.

    • Follow the direction of the arrows.

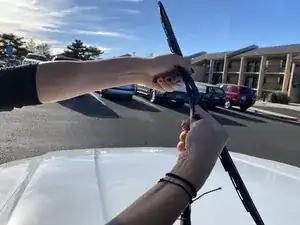

  5. 4gxFcApW3URdfQFQ
    4gxFcApW3URdfQFQ
    2R3P2BrokVPPVxAR
    sHE6E2x3waQU2QVW

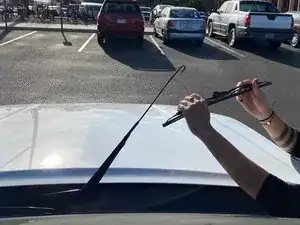

    • Repeat steps 1-4 on the passenger side wiper.

  6. QYEHfwMeR3OAAvrT
    QYEHfwMeR3OAAvrT
    Gu2KpwHhMtRK6r3R

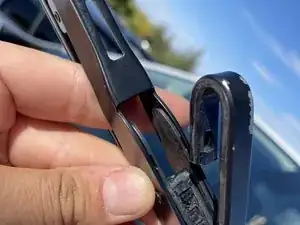

    • Grab the 22" wiper blade and position it on the wiper arm so that it is hooked into places as well as flush with the arm.

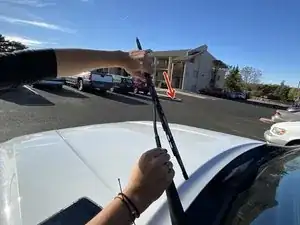

  7. YP6HXyMhZFYUXN54
    YP6HXyMhZFYUXN54
    pxwAuGxBHDMfkyhj
    juqbsVheS3rWkfAH
    • Pull the wiper blade down with your right hand and slowly push with your left onto the wiper arm until you hear it snap back into place.

    • Make sure that the wiper is securely fastened and that it cannot be removed without pushing the button.

    • Follow the direction of the arrow.

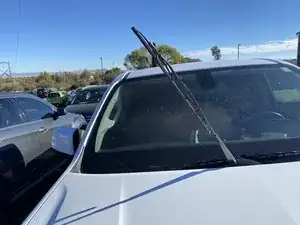

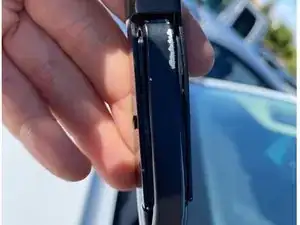

  8. tfYqxfHB4gcCXCd4
    tfYqxfHB4gcCXCd4
    AvkqWCZJ3JQJWhNa
    lTsyBwYUqYtykVGv
    • Repeat steps 6 and 7 on the passenger side wiper. Make sure you are using the 18" wiper for the passenger side replacement.

Abschluss

to reassemble your device, follow these instructions in reverse order
