360fly 4K Lens Replacement

Geschrieben von: Jacob Herron
  • Kommentare: 7
360fly 4K Lens Replacement

Schwierigkeitsgrad

Very easy

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

The 360fly is a lens, camera, and storage device all in one. Its internal battery and 32GB memory give users the power to capture approximately 2 hours of 360° HD footage each time out.

This lightweight camera provides everything users need to take entire surroundings from a single digital unit.

  • Powerful 16-megapixel image sensor and 4K video resolution 2880 x 2880 pixels up to 30 fps.
  • Eight glass element ultra-fish-eye lens is used to capture 360-degree video.

If you are unable to clearly capture an image or the lens has been damaged in some way, follow this guide to replace the lens.

Source: Quick Guide to 360 Fly Video Camera

  1. kFHN3TCFbivbMXSE

    • Flip the camera upside down and peel off the two plastic screw covers with the metal spudger to reveal the screws.

  2. fUDhglpuWUwPPbLX

    • Remove the two 5 mm screws from the bottom of the camera with a T4 screwdriver.

    In the older model for Fly360 camera, the screws are PH000.

    Renjamin -

    In the old 360Fly HD camera, the screw requires a #00 Philips head screwdriver. Unfortunately for me, one of the screws on mine was torqued down a bit too tight, that I ended up stripping the screw head trying to loosen it by hand.

    XzTS -

  3. jaWAnnIPJmPIVAOM
    jaWAnnIPJmPIVAOM
    bgi5t5ff1knG6S6X

    • Gently pry the plastic ring from around the charging plate with the metal spudger.

    • Remove the outside shell by pressing against the center of the charging plate and pulling the bottom shell away from the top shell.

  4. gQSNGGLyOHkmknm2

    • Remove the five 2 mm screws using a T4 screwdriver.

    • Pull off the charging plate assembly.

  5. d2GSFGwSppa5EFaS
    d2GSFGwSppa5EFaS
    KFbbImnIqGtJUT44

    • Gently pry the plug off the port on the circuit board with a plastic opening tool.

    • Remove the four 2 mm screws using a T4 screwdriver.

    • Remove the circuit board from the device.

  6. ERyBVO1Yy3RNEURh
    ERyBVO1Yy3RNEURh
    DcbfXaEBIGu1pxlc
    JPEFfglqgscNZtCD

    • Remove the five 4 mm screws around the battery assembly with a T4 screwdriver.

    • Lift the battery assembly and gently pry the plug out of its port on the board below with a plastic opening tool.

    • Press the battery from the back of the battery assembly to remove it with a plastic opening tool until the glue releases the battery.

    • Potential for device damage: Do not puncture or bend the battery. Use a small amount of heat to assist in softening the adhesive if necessary.

    Do I have to remove the battery to replace the SD card?

    BoB -

  7. kvpeAJVFtMTod2x5

    • Gently pry the plug from the motherboard and remove the motherboard from the assembly.

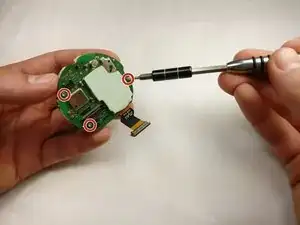

  8. lcC21bLjayE4TcQe

    • Remove the three 3 mm screws from the circuit assembly with a T4 screwdriver.

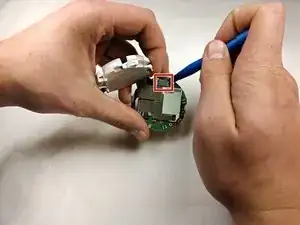

  9. jsquy4NaBDgOvdGs

    • Gently pry out the plug from the circuit assembly.

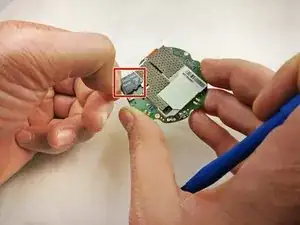

  10. BODwLkNbXEZgsBpc

    • Press and release the SD card to remove it from the circuit assembly.

    Does anyone know how large a card the 360fly can support? I’d like to put a 256gb card in if it will support it.

    BoB -

  11. 25F4v5YBTA1Q4Ubu

    • Unscrew the five 3mm screws with a T4 screwdriver.

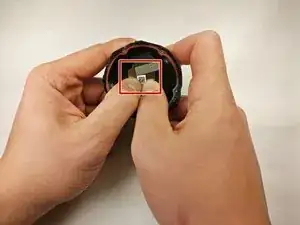

  12. KG5IkJfHLAFKcZyl

    • Gently push against the lens module to remove it from the 360fly 4K assembly.

    Boa Tarde...  Resido no Brasil a lente da minha FLY 360 4k Foi danificada onde consigo uma lente de reposição ?

    thiagoboesingg -

Abschluss

To reassemble your device, follow these instructions in reverse order.
