3DR Solo Gimbal Replacement

Geschrieben von: Aimee
  • Kommentare: 0
3DR Solo Gimbal Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

8 Minuten

Einleitung

The gimbal on the drone holds the action camera in place during flight.

  1. dTDl5Zsm5VGDEaQd

    • Grip the arm, which is located underneath the propeller, with one hand, and with your dominant hand grip the center of the propeller.

  2. bJExUEnKV4rxnCEh

    • Twist the propeller from the locked to unlocked position as indicated by the images of the lock.

    • You will need to twist in this direction for 2-3 full rotations before the propeller will detach.

  3. eVmqoN1QHKbK3CHT

    • Lift the propeller off the motor.

    • To remove the silver-top propellers, repeat these steps, turning the propellers in the opposite direction of the black-top propellers.

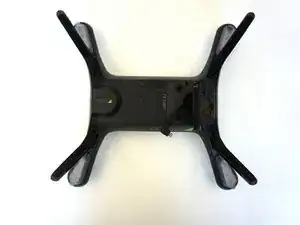

  4. fQSTWmcqOZu2Mk2U

    • Lay the drone flat with the side containing the gimbal face up.

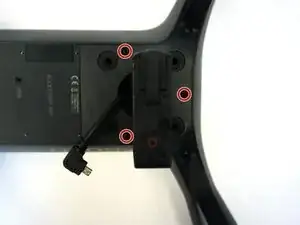

  5. Q4idVlFaSaJjQaym

    • Locate the three, 11mm screws surrounding the gimbal.

    • There should be a screw to the left, right, and one directly in the front of the gimbal.

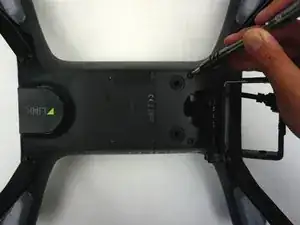

  6. iIo6DBUGwOEZmFyW

    • Using the J1 Phillips Head Screwdriver, unscrew each 11mm screw surrounding the gimbal.

    • Turn the driver in a counter-clockwise direction for each screw.

    • Note that the screws will loosen, but will not come out of their sockets completely.

    • Once all three screws are loosened, use the smaller, plastic opening tool to carefully lift the panel that encases the gimbal by placing the square shaped end of the opening tool into the crevice between the panel and the rest of the device.

    • Be sure that the end of the opening tool is facing inward, towards the screws.

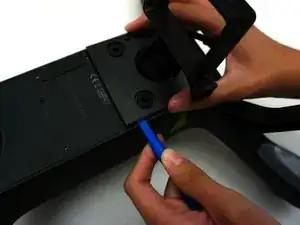

  8. tXfcTkQ3sDWVsIni

    • Gently begin lifting the panel with the opening tool by moving your hand in a downward motion, causing the panel to lift from the device.

    • Work your way around the entire square panel doing this same motion until it is loose enough for you to pull off with your hand.

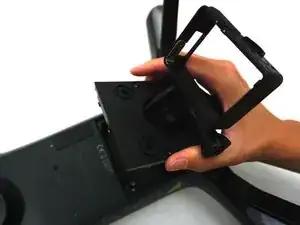

  9. 6WRbcMtZuW6Uv6DG
    6WRbcMtZuW6Uv6DG
    GBxHUp5ULMvP6lPa
    yZHAUdiHW4yNl5I2

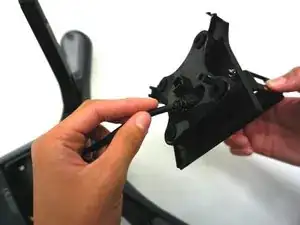

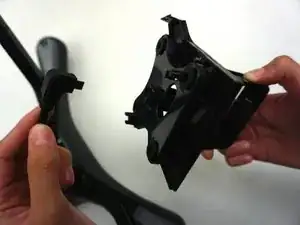

    • Once the gimbal and panel is loose enough to pull off with your hand, gently remove both the panel and the gimbal from the device.

    • When doing this, be sure to leave the micro SD cable inside the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
