3DR Solo Leg Replacement

Geschrieben von: Leia Harlow
  • Kommentare: 0
3DR Solo Leg Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to remove the legs on the bottom of the drone.

  1. dTDl5Zsm5VGDEaQd

    • Grip the arm, which is located underneath the propeller, with one hand, and with your dominant hand grip the center of the propeller.

  2. bJExUEnKV4rxnCEh

    • Twist the propeller from the locked to unlocked position as indicated by the images of the lock.

    • You will need to twist in this direction for 2-3 full rotations before the propeller will detach.

  3. eVmqoN1QHKbK3CHT

    • Lift the propeller off the motor.

    • To remove the silver-top propellers, repeat these steps, turning the propellers in the opposite direction of the black-top propellers.

  4. UgmIimTFE6A6oRbX

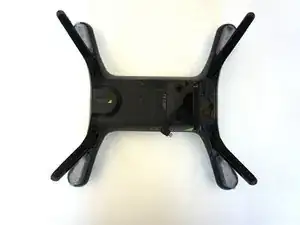

    • Place the controller on a flat surface with the battery side down.

  5. JJ3McSAmylAYAWXG
    JJ3McSAmylAYAWXG
    L2rkVu46RFKY6uVj
    aMRWlLebQwqYjkaE

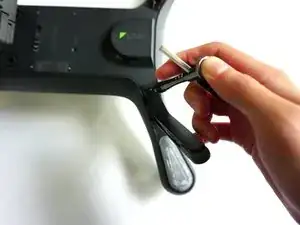

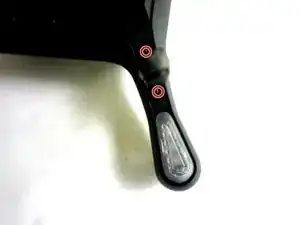

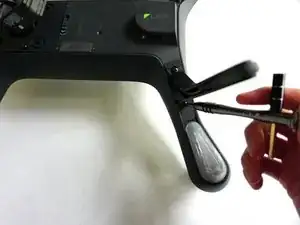

    • Locate the leg and remove the two 10mm screws that hold the leg in place.

  6. cJfZORyHfpjrxMMU

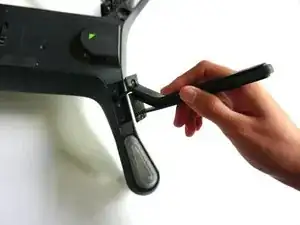

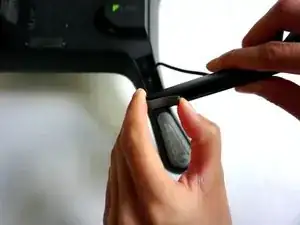

    • Gently pull the leg up to remove it from its position.

    • Leg should be connected by a black wire.

  7. bcSNyXUWYnwiTkL2
    bcSNyXUWYnwiTkL2
    gm2ghcMUnBavtGqv
    YnIvvIwKMTrMYKem

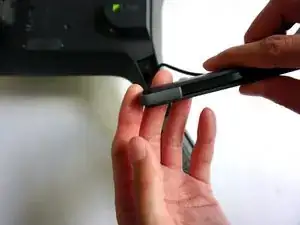

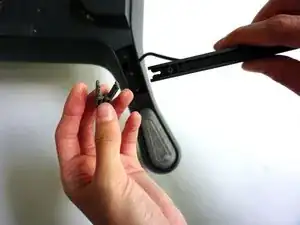

    • Locate the rubber grip at the end of the leg and, with your thumb, peel it back and pull it off.

  8. 2CaACRCAiPuUcOac
    2CaACRCAiPuUcOac
    nbrpcSM6RGaYwYRn

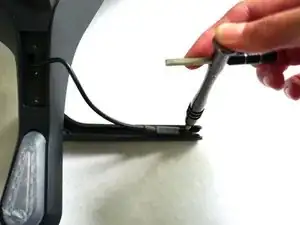

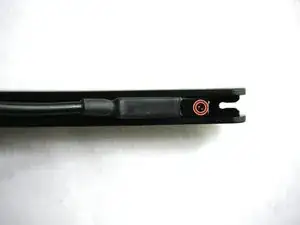

    • Leg type 1 will contain a 1mm screw at the base of the leg.

    • Unscrew the 1mm screw located at the end of the leg.

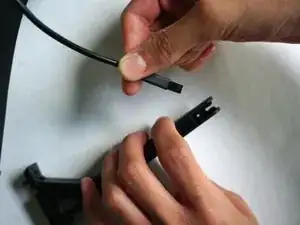

  9. ZLfYMvPZxeT3UjUK

    • Gently pull the black cord up to release it from the leg.

  10. 5hEG13cIYnDqcHhN
    5hEG13cIYnDqcHhN
    y6DPbLeDorGid4Hi
    mKFH5GxHtmQTK6Er

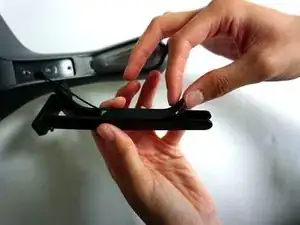

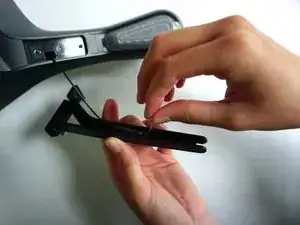

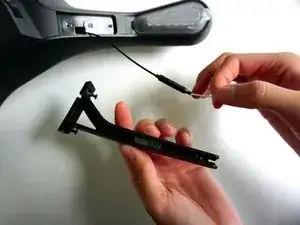

    • Leg type 2 will contain the antenna wire.

    • Gently pull up on and remove the plastic covering labeled "solo antenna".

    • Locate the antenna wire and carefully pull up and remove it.

    • The antenna wire is flimsy so use caution upon removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
