5 LED 6 Mode Rear Bike Light LED Replacement

Geschrieben von: Alex Sireci
  • Kommentare: 0
5 LED 6 Mode Rear Bike Light LED Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

The bike light in this guide is sold under various brand names, but in fact is a no-name brand and comes with no distinct markings on the packaging. Some uses for this guide are replacing broken LEDs and customizing the LED colors. This specific guide customizes the LED colors, but the process for replacing them is identical.

Note the type found here does not have a brand name on the device and are sold under various fake brand names.

  1. VFaG61RI5xttU2cE

    • Obtain the necessary tools

  2. OiENyE5wMHigvUMp
    OiENyE5wMHigvUMp
    EnOdUclUYQqcvqPW

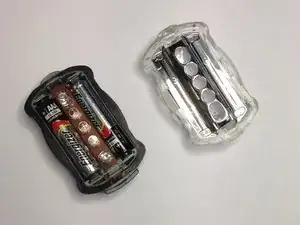

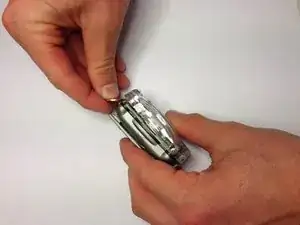

    • Insert coin or any flat object into edge of light cover

    • Pry open until cover loosens

  3. qfe3kSQRlHcX2XWI
    qfe3kSQRlHcX2XWI
    YwuUkUxZhXNI1bPs

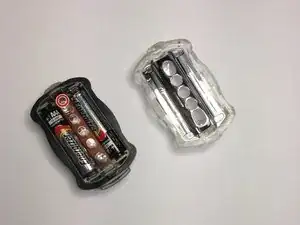

    • Remove the single Phillips #00 screw holding the circuit board in place

    • Remove both AAA batteries

  4. qEYJRqxrfJQHtF3A
    qEYJRqxrfJQHtF3A
    GPZEbS2ADUmK3GyG

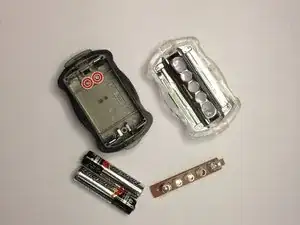

    • Remove both Phillips #00 screws holding the clip in place

    • Remove the clip with a flat object

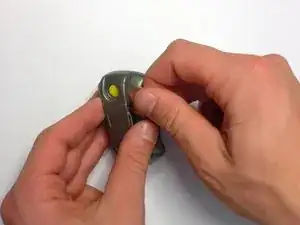

    • The button will fall out when removing the clip. Do not lose it!

  5. XBQnlsRA2NQwerGD

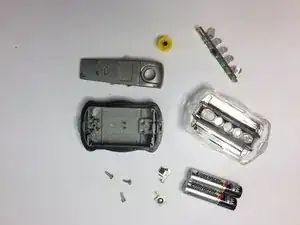

    • Congratulations! You completed your device teardown!

  6. 52hUISAjghNaguKd

    • Warm up the soldering iron

    • Tin the tip of the soldering iron

    • Apply a small amount of solder to the tip

    • Wipe on a damp sponge

    • Touch the tip of the soldering iron to the led solder to liquify it

    • Apply solder wick to absorb solder

    • This guide uses a desoldering pump instead of desoldering wick. The wick would work better.

  7. oGgsy3EL2WI5SpCX

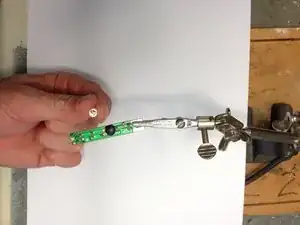

    • Once you remove enough solder, remove the LED

  8. XejOhMBSVY3RsiKi
    XejOhMBSVY3RsiKi
    DeOlhN6JF6pUJ4oR

    • Place the new LED through the open holes

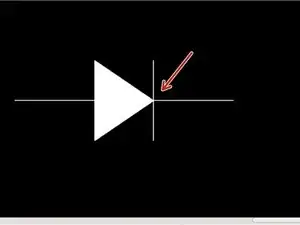

    • The LED should cover the schematic symbol on the circuit board and the flat edge of the LED should line up with the tip of the diode symbol shown by the arrow

    • If the LED does not stay, you can tape it in place on the opposite side of the board

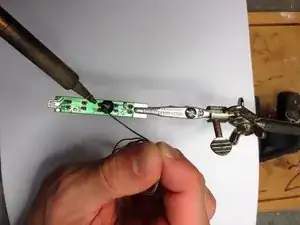

    • Warm up the trace on the circuit board and the LED lead with the soldering iron

    • Wipe your soldering iron on the damp sponge every time you pick it up

    • Apply solder to the lead until the hole completely fills with solder

  9. Reassemble by following the teardown in reverse order

    • Reassemble by following the teardown in reverse order

    • You now have a customized bike light or a working LED!

    • We replaced the middle LED with blue and the two outside LEDs with white. We set the bike light on the last mode. Enjoy!

    • Certain colors of LEDs may be illegal as rear bike lights. Use at your own risk or for a different application!
