Einleitung
Make sure you pay attention to the parts. When assembling the Left Tensioner make sure to only use parts with L or Left marking. When assembling the Right Tensioner make sure to only use parts with R or Right marking.
Printed parts needed:
None
Werkzeuge
Ersatzteile
-
-
Insert the Left Tensioner slide into the Left Bottom Tensioner mount.
-
Insert M4 hex head screw through the Left Tensioner slide.
-

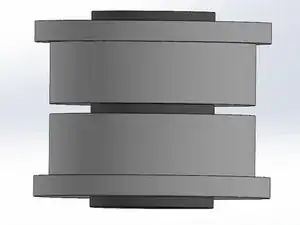

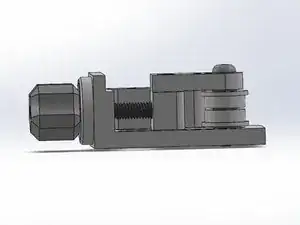

Make the bearing assembly with 3x M3 washers and 2x F623ZZ bearings.
-
-
-

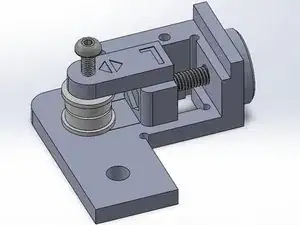

Insert a M3x18 button head screw to secure the bearing assembly to the tensioner slide.
-

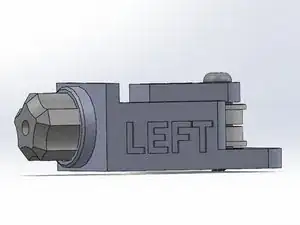

Thread the tensioner knob on to the M4 hex head screw
-

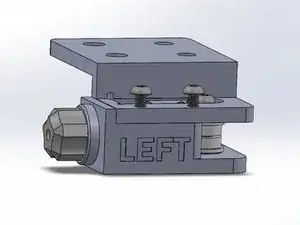

Thread the Left Tensioner Top Plate to the bottom assembly with 2x M3x18 button head screws. Do not tighten completely
-
-
-

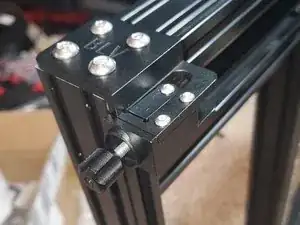

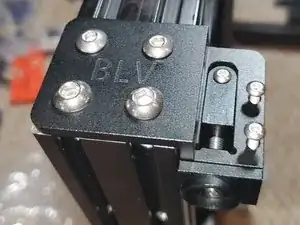

Mount the assembly to the left top of the frame using 2x M5x8 button head screws, 2x M5 T-Nuts and 2x M6x10 button head screws. Once the plate is straight tighten the screws
-
Tighten the M3x18 button head screws
-

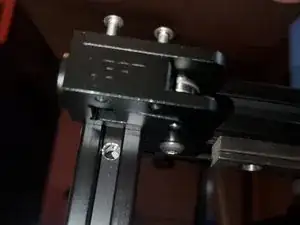

Secure the bottom of the tensioner to the underside of the 2040 with a M5x8 button head screw and M5 T-Nut
-
-
-

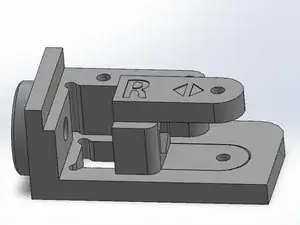

Insert the Right Tensioner slide into the Right Bottom Tensioner mount.
-

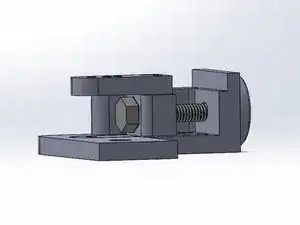

Insert M4 hex head screw through the Right Tensioner slide.
-
Make the bearing assembly with 3x M3 washers and 2x F623ZZ bearings.
-
Insert a M3x18 button head screw to secure the bearing assembly to the tensioner slide.
-
-
-
Thread the tensioner knob on to the M4 hex head screw
-

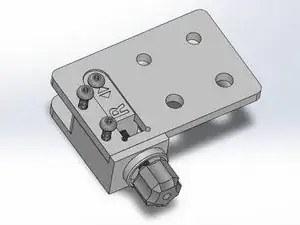

Thread the Right Tensioner Top Plate to the bottom assembly with 2x M3x18 button head screws. Do not tighten completely
-

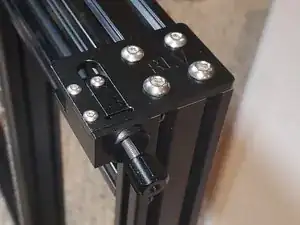

Mount the assembly to the right top of the frame using 2x M5x8 button head screws, 2x M5 T-Nuts and 2x M6x10 button head screws. Once the plate is straight tighten the screws.
-
Tighten the M3x18 button head screws
-
