68cc Gas Bike Compression Head Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

Have you ever wanted to improve your 68cc gas bike's performance? This FastFix will help you improve your bikes performance and speed.

  1. bk5JGFhqLf5VVEHP

    • Clean the compression head with an alcohol based cleaner to ensure a perfect fit on the engine.

    • DO NOT use soap or an acid based cleaner. They will ruin the compression head.

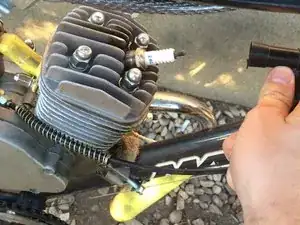

  2. lEsKiAGThfjabRQj
    lEsKiAGThfjabRQj
    FVdfqWHCUqZakbNR

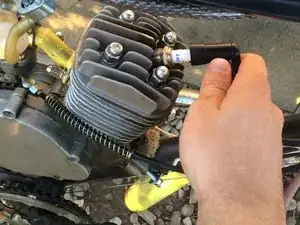

    • Detach the rubber CDI from the spark plug by gently pulling up and away from the engine.

    • The rubber part that grabs the spark plug on the CDI is very delicate and may break with excessive force, use minimal force

  3. 5IsR3VayBilxMUnG
    5IsR3VayBilxMUnG
    iZnAWfkxOKZWHxKa

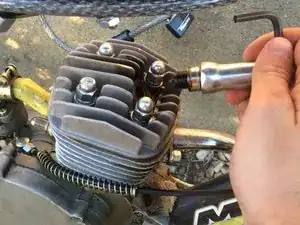

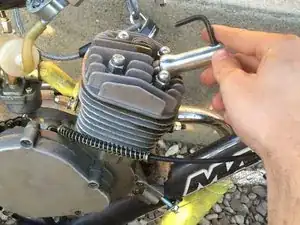

    • Place the spark plug tool on the spark plug and twist it counter clockwise to loosen it.

    • After loosening the spark plug all the way, remove it by lifting up.

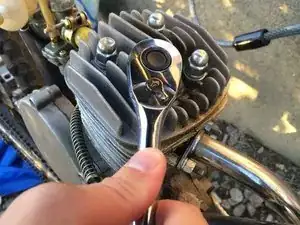

  4. NCMwdXyGQee54ARR
    NCMwdXyGQee54ARR
    nrluHvc6KiPOAQfO
    VnrMTEW1sNDGQAmX

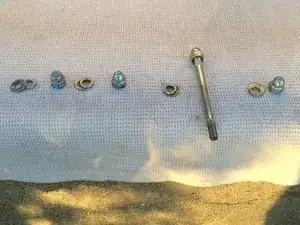

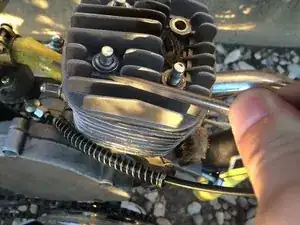

    • Place your 3/8" wrench on any of the four top cap nuts on the compression head currently on the bike.

    • Turn the wrench counter clock wise to loosen the cap nut and remove it. Then remove the washer and the locking washer. Repeat this for all cap nuts.

    • Keep the washers and lock washers with the cap nut they were with on the compression head, it is not recommended to mix them up.

    • Use the flat head screw driver to remove washers stuck to the compression head.

    • Sometimes the bolt gets stuck on the nut and comes out, do not worry, this is normal.

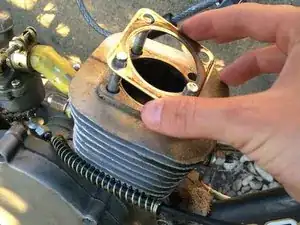

  5. QJNADPLYfvEQcyoG
    QJNADPLYfvEQcyoG
    WFPIb1lliFbp3Xn6
    mtCYShkhr6V3woeU

    • Remove the compression head by lifting up.

    • Remove the head gasket from the engine. Sometimes the head gasket gets stuck to the compression, remove the head gasket if it is stuck to the compression head.

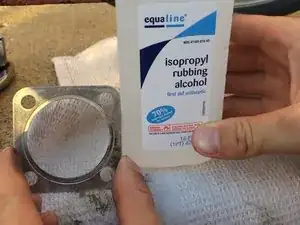

    • Clean metal head gasket with the rubbing alcohol.

    • Reinstall metal head gasket on the engine after cleaning.

    • Without the head gasket properly cleaned and replaced onto the engine the engine will not run properly.

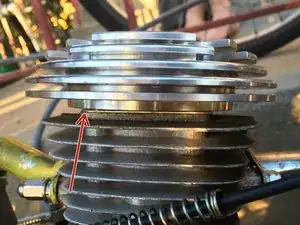

  6. 5DVTRQZdQrfEhkqV
    5DVTRQZdQrfEhkqV
    Z2TYCJNuDUJsa1mX
    OTSihVhYsoJLEwPj

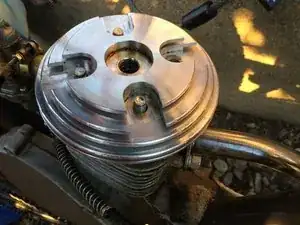

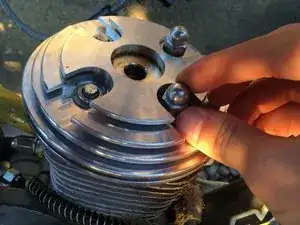

    • Place the new compression head on the engine.

    • Place the washers and locking washers back in their respective places and place the cap nuts on top. Hand tighten the bolts.

  7. WDqpJvPLkAXVxJmM
    WDqpJvPLkAXVxJmM
    3rkJ1YmeY5W4ymyX

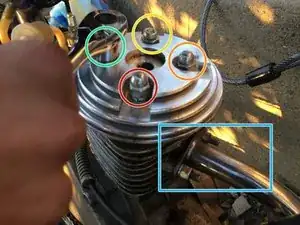

    • This is important information for the next few steps.

    • This is nut #1, the one on the right closest to the camera.

    • This is nut #2, the one on the right farthest from the camera.

    • This is nut #3, the one on the right farthest from the camera.

    • This is nut #4, the one on the left closest to the camera.

    • Pay close attention to the relation of the nuts to the carburetor and the exhaust.

    • If you are looking at the engine from this view the handle bars will be to your right and the seat will be to your left.

  8. Q1A43wOcrulQtIY1
    Q1A43wOcrulQtIY1
    F1SofkqYk2Bb4AGU

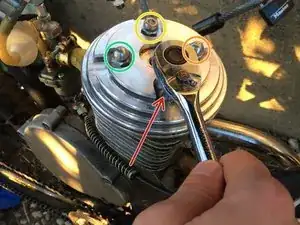

    • THE NEXT TWO STEPS ARE VERY IMPORTANT AND MAY HINDER PERFORMANCE OR CAUSE ENGINE FAILURE IF DONE INCORRECTLY.

    • Using your 3/8” wrench, place it on the first cap nut labeled in the picture above. This is the cap nut in the red circle. Tighten it 2 full turns clock wise.

    • Next, place the wrench on cap screw three and tighten it 2 full turns clock wise. Cap screw three is the one labeled with by yellow arrows or circles.

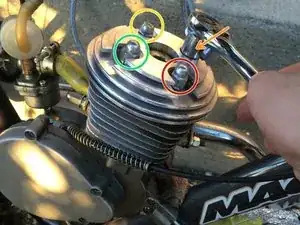

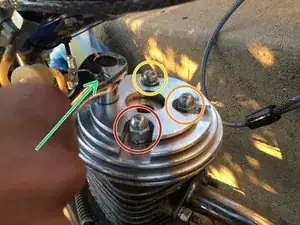

  9. OSSfvbl2HvUwYKOp
    OSSfvbl2HvUwYKOp
    XXxIOUXfshglSsCJ

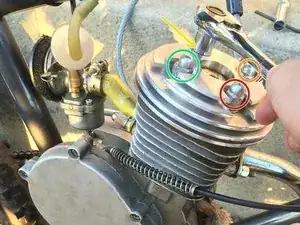

    • Place the wrench on cap screw two and tighten it 2 full turns clock wise. Cap screw three is the one labeled with by orange arrows or circles.

    • Place the wrench on cap screw four and tighten for 2 turns. Cap screw four is labeled in green.

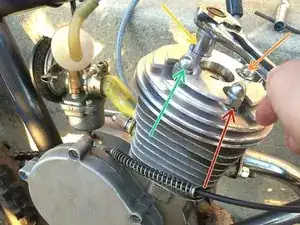

  10. 6QQCGiBUlHIUNJyA

    • Repeat the tightening pattern two more times to make sure that all screws have the same amount of tightness one them.

    • The tightening sequence is 1 to 3 to2 to 4, and repeat. Or color wise, red to yellow to orange to green.

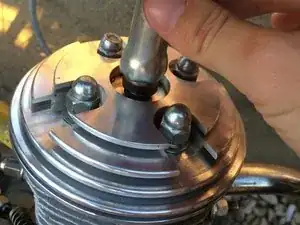

  11. MkpRS1vFfLXCQn2S
    MkpRS1vFfLXCQn2S
    EN3OWJnMWuPauwoF

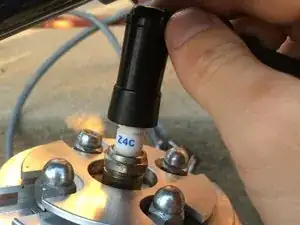

    • Use the spark plug tool to reinstall the spark plug by screwing it in clock wise.

    • Reattach the rubber CDI to the spark plug.

    • Make a quick visual inspection to make sure nothing looks out of the ordinary.

    • You have now installed a new compression head on your 68cc gas bike!

    • Go out for a short ride to test the new compression head to make sure all components are properly installed.
