7. X Carriage Assembly

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Printed parts needed:

1x X Carriage Wire Tube Holder.stl

1x X carriage shield for the metal kit.stl

One of the following:

1x Metal kit - BLtouch adapter.stl

1x BLTouch Front Mount Adapter.stl

  1. mHTYrRdsuHeOurnG
    mHTYrRdsuHeOurnG
    12SLuLFjM1fIKeWM
    1EO5KdhLFQqIxnhW

    • Using 2x M3x8 socket head screws mount the V6 Front Plate Mount to the front Plate.

    • Make sure it's level otherwise you will have inconsistent nozzle height.

    • Make sure the screws are tight. I've had these screws loosen up on me after 2 weeks.

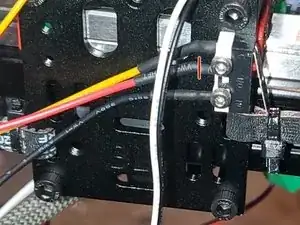

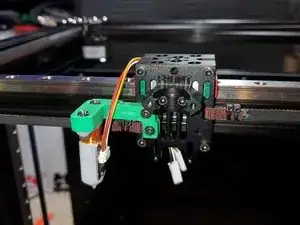

  2. 6jVobPZPXybriqjT
    6jVobPZPXybriqjT
    sApPHjq1YtoSXXhG
    6KmZLMApSMUHkdvb

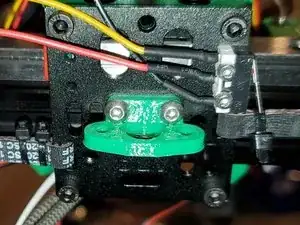

    • Using 2x M2 washers and 2x M2x8 button head screws mount the X Endstop on the rear late above the upper belt. Make sure the endstop lever is facing down

    • At this time, the endstop has all 3 wires connected. You will not have any reason to use the middle wire and if connected wrong it can short the endstop plug shutting off the printer. Since we don't need it, cut the red wire and discard

    • The original design has the BLTouch mounted on the rear of the carriage using 2x M3x6 button head screws to secure the mount to the Rear Plate.

    • Secure the BLTouch to the rear mount with 2x M3x8 button head screws and 2x M3 nuts

    • I have designed an optional variant that moves the BLTouch to the front of the X Carriage. You can find the files in the FYSETC Modified Printed Parts folder on my Github

    • Secure the mount to the Front Plate with 2x M3x6 button head screws

    • Secure the BLTouch to the Front Mount with 2x M3x10 button head screws and 2x M3 nuts

  3. WSKwN6oavOymyQEb
    WSKwN6oavOymyQEb
    gacMMSICsbqnEWag

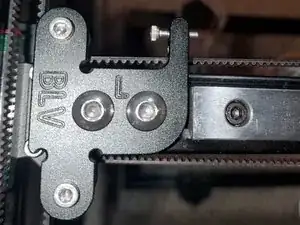

    • If using my BLTouch mount, the BLTouch will hit the X carriage before the endstop is triggered. To remedy this thread in a M2x8 socket head cap into the outside threaded hole on the Left X Mount.

    • The screw needs to protrude out the opposite side enough to trigger the endstop before the BLTouch mount hits. About 2-3mm

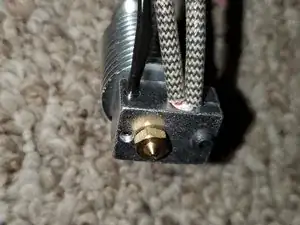

  4. GlSPZaCuXU42nNst
    GlSPZaCuXU42nNst
    iivRPVe6u4OYLVv6

    • Insert the Thermistor into the heat block and tighten the small set screw

    • Insert the heater cartridge into the heat block and tighten the M3 button head screw.

    • Install the silicone sock onto the heat block.

    • Using 2x M3x16 socket head screws secure the E3D and the E3D V6 Locker to the front plate.

    • While tightening the screws make sure the hotend stays straight. If it moves left or right, remove the hotend and tighten the screws for the V6 Front Plate Mount from step 1.

    • Make sure the thermistor and heater wires are to the left the hotend. This will prevent any wires from getting in the way of the X Endstop.

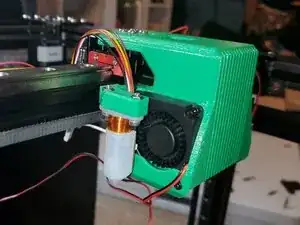

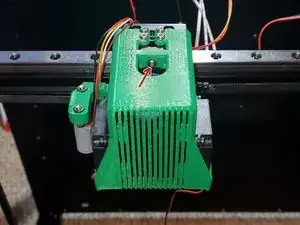

  5. MiinfDVjJWFsmPdr
    MiinfDVjJWFsmPdr
    VABAdhu4s6CywkJ2
    5OjY2LWNAsOsIKgP

    • At the time of writing this the kit contains a single 5015 radial fan. It's been found that it provides insufficient cooling and is no official mounts have been released for the metal kit. FYSETC has been made aware and in the process of upgrading the kits with dual 4010 Blower fans

    • Mount the 4010 fan with the longest wire into the block shield with 4x M3x12 screws

    • Insert the 2 blowers into the side mounts and secure with 2x M2.5x6 socket head screws(top) and 2x M2.5x12 socket head screws(bottom) on both sides.

    • Secure the block shield to the X Carriage with 5x M3x8 button head screws. Don't forget about the screw on the front.

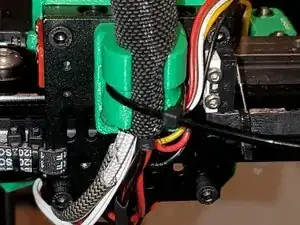

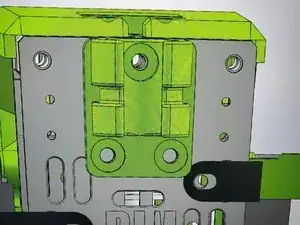

  6. TRBjwpXMNn6RiJCY
    TRBjwpXMNn6RiJCY
    peFVIAKKSkJlfFUE
    KyuWdYEYAgEcCfxc

    • Wiring is really a personal preference but I like everything as neat as possible which is why I made a wire locker mount for the metal kit. You can find the files in the FYSETC Modified Printed Parts folder on my Github

    • Note-This will not work if you have the BLTouch on the rear of the carriage

    • Using 2x M3x6 button head screws and 1x M3x10 button head screw mount the Wire Locker to the Rear Plate

    • Insert the hotend wires into the wire loom.

    • If you have a 24" zip-tie insert it into the wire loom with the wires(not included with the kit). This will help keep the wire loom up

    • Using a small zip-tie, lock the wire loom into the wire locker

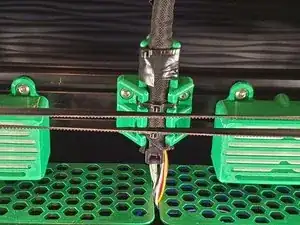

  7. VnE1qcQCA3ROabMG

    • Mount the Main_Cable_Tube_Holder to the rear of the frame using 2x M5x8 button head screws and 2x M5 T-nuts
