AARP RealPad MA7BX2 Screen Replacement

Geschrieben von: Alana Escue
  • Kommentare: 2
AARP RealPad MA7BX2 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 - 35 Minuten

Einleitung

This guide will show you in depth how to replace the screen. This guide will use two prerequisite guides. In order to complete this guide you will have to know how to use a screwdriver and a suction cup. This guide requires time and a lot of patience.

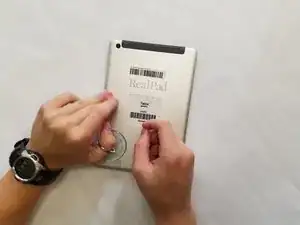

  1. GTfWcY6dr6oZJvU5
    GTfWcY6dr6oZJvU5
    EQWGeSQEJOK3YPI5

    • Loosen the back cover using the suction cup.

    • Pull up on the center of the back with the suction cup.

    • Pull up on all four corners of the back with the suction cup.

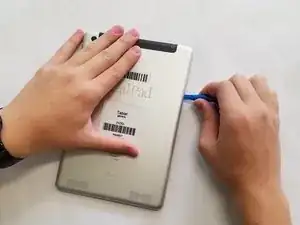

  2. nWIMdEXBxiaQNnCR

    • Remove the back cover by gently placing the small opening tool in the crevice created by loosening the back.

    • Slide the opening tool around the edges of the device.

    • Wedge it open using the opening tool.

    • Use the suction cup again if you're having trouble removing the back cover.

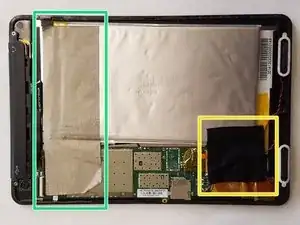

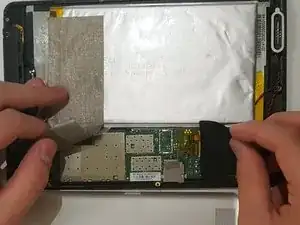

  3. YXMtumN5PYGOab3Y
    YXMtumN5PYGOab3Y
    dwjBYNIIsVI3FqO1

    • The black tape is stuck to delicate wires; remove with caution.

    • Peel off the silver tape.

    • Gently pull off the black tape.

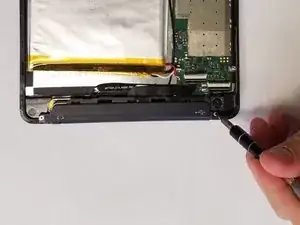

  4. lIWvywqUYvMmNb5x
    lIWvywqUYvMmNb5x
    XIS3yq5OSswYS3HX

    • Using a JIS #000 screwdriver, remove the two 2.5 mm screws.

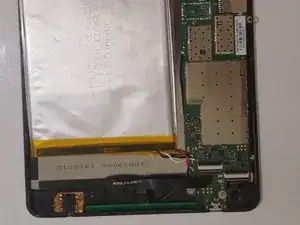

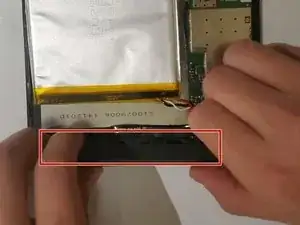

  5. dAPvko5IFGFhHCiR
    dAPvko5IFGFhHCiR
    JnSNnTQHALNk5rvS

    • Lift off the black audio cover.

    I added a blue box around the audio cover and relabeled your instruction to be a blue dot instead of a black dot.

    I also recommend retaking step 5's first photo with your hands out of the picture so that the person can see the whole black audio cover.

    matthew jones -

  6. ZFt2T5rRTjDPSPDi
    ZFt2T5rRTjDPSPDi
    4OQ21YmiitmKlYBO

    • Remove the two JIS #000 screws.

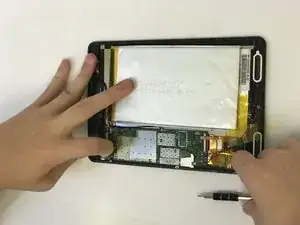

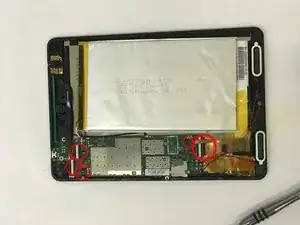

  7. aIRkntXDluHloJK1
    aIRkntXDluHloJK1
    rBtWf2HLqLJLlEWB

    • Flip up the small black connectors using a spudger or your nails.

    • Be careful when flipping them up. Too much force can cause them to break.

  8. BcuoZnfiA2jZoE1C

    • Remove battery.

    • Removing the battery may need some force. Be careful as to not break anything.

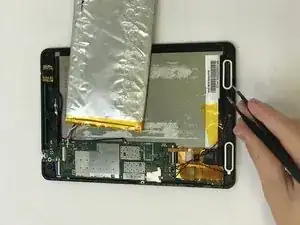

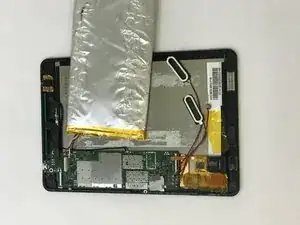

  9. psWaMoL5FN6PkFpt
    psWaMoL5FN6PkFpt
    31DvutTHuVkhtQSf

    • Use the tweezers to loosen up the sides of speakers by going into the gaps, before picking it up.

    • There are magnets holding down the speakers. Be careful as to not pick them up with the speakers.

    • The top of the speakers are very fragile and may fall out at the slightest touch. Be careful when picking them up.

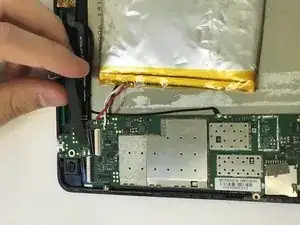

  10. iCjjNTQYAGf4mQPJ
    iCjjNTQYAGf4mQPJ
    vbc3JUKapEInP3Aw

    • Remove all wire connections by sliding them out of the connectors.

    • Be careful as to not forcefully pull out anything because the wires are very delicate.

  11. uqLYRYKahxiujcQQ

    • Take off the motherboard and set it aside. Your Finished product should look like this.

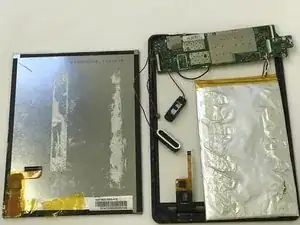

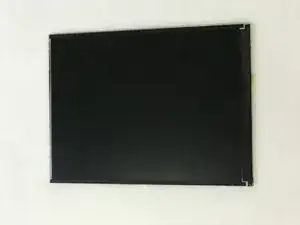

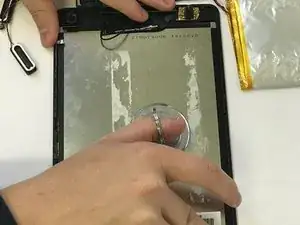

  12. 1kKslk2SLwcTcetN
    1kKslk2SLwcTcetN
    KXEIS4XYFt64ghEC
    NpwmRsC5aaWV3gVy

    • Use the suction cup to loosen and pull up the screen.

    • Be careful when pulling up screen. Too much force can lead to you breaking it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
