ACER Aspire 7750G-6645 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

9 - 10 Minuten

Einleitung

If your laptop is currently experiencing full memory then this guide below will show you step by step how to replace the ACER Aspire 7750G 6645 Hard Drive. Once the new Hard Drive is installed the memory of the laptop will be empty.

  1. IYVsTe4BdeScbg62

    • Remove three 60mm Phillips #00 screws that are holding the bottom cover in place.

  2. kJpZJmlhaiMCbouF

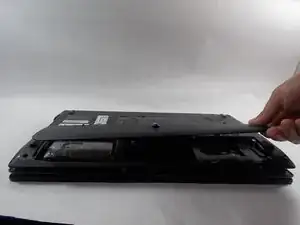

    • Lift up the back cover of the device, you may need to use a spudger to assist.

  3. FxUMYneNbGyy3DIy
    FxUMYneNbGyy3DIy
    MF354lSr3bmHPyvZ
    o1sTfWKvn32WKlnL

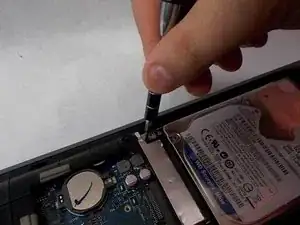

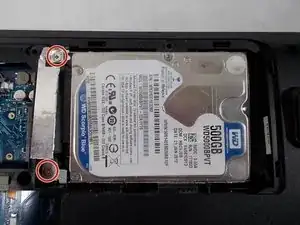

    • Remove two 4mm Phillips #00 screws that are holding the hard drive in place.

  4. QcmGPKOAicOmZ5xB
    QcmGPKOAicOmZ5xB
    VYbbrpMpvmCx1kiQ

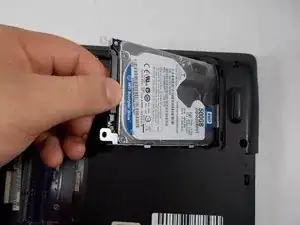

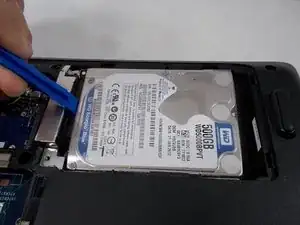

    • Push the hard drive to the right and push it upward to remove. You may need a spudger or plastic opening tool to assist you with this step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
