Having a hard time with your Acer Aspire 7750G-6645? Does your laptop have an unusual burning smell, freezes, or overheating? This may mean that your motherboard is in failing mode and needs to be replaced immediately. This guide will provide steps to follow to remove the motherboard from the laptop. Be sure to power off the device before beginning any repairs.
Werkzeuge
-
-

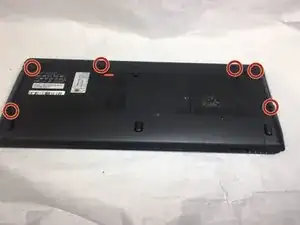

Remove the six 2.5mm Phillips #0 screws from the back of the laptop.
-

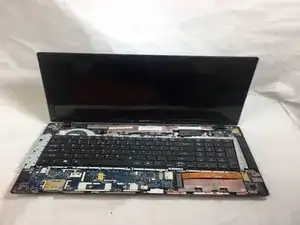

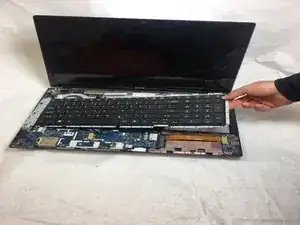

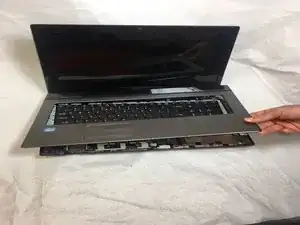

Flip the laptop over carefully.
-
-
-

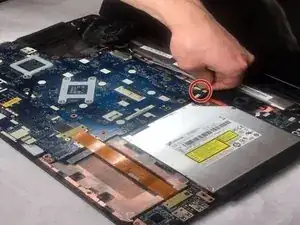

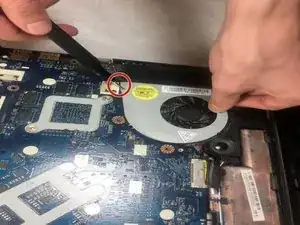

Remove the single 2.5mm Phillips #0 screw.
-
Remove the silver plating above the fan.
-

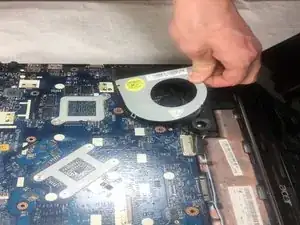

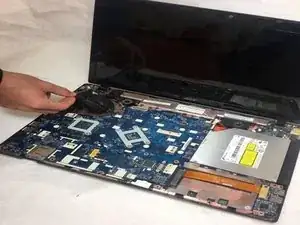

Pull out the fan.
-
-
-

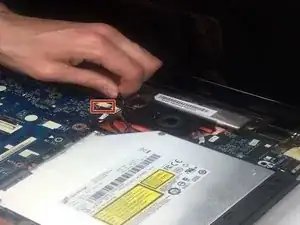

Disconnect the ribbon strip from the motherboard by removing the two 2.5mm Phillips #0 screws.
-
-
-

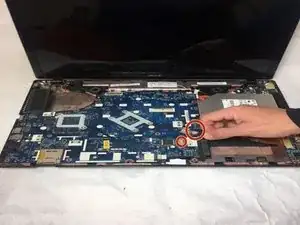

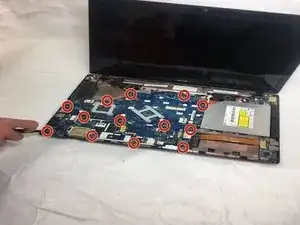

Remove the thirteen 2.5mm Phillips #0 screws connecting the motherboard to the body.
-

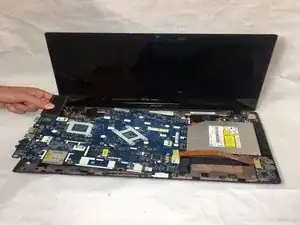

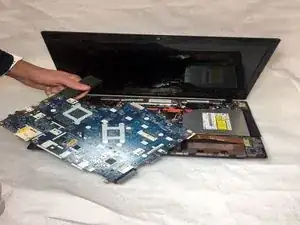

Remove the motherboard from the laptop body.
-
To reassemble your device, follow these instructions in reverse order.
