ACER Aspire E1-572-6870 Fan Replacement

Geschrieben von: Cody Lim

Kommentare: 5

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

20 Minuten

Einleitung

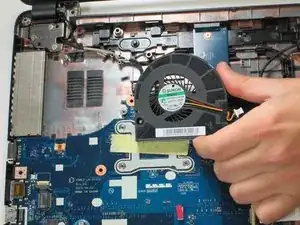

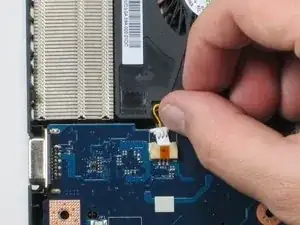

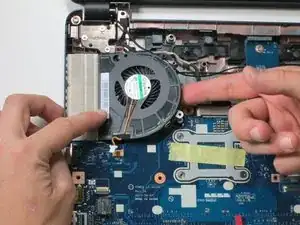

This guide will teach you how to replace the fan.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

Before you begin, be sure to turn off your laptop and unplug it from the outlet.
Flip your laptop over so the back panel is facing upwards.
Locate the lock switch below the battery.

Schritt 2

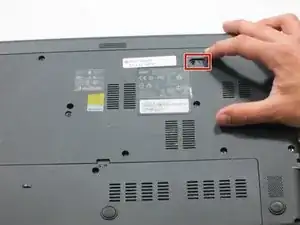

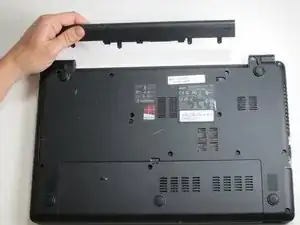

Slide the lock switch to the right using your finger or a spudger.
At the same time, grasp the battery with your other hand and slide it out of the laptop.
Remove the battery.
To reinsert or replace the battery, simply line up the tabs on the battery with the laptop and slide it straight back in. There is no need to move the lock switch.

Schritt 3

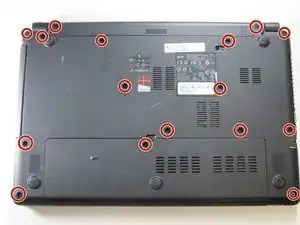

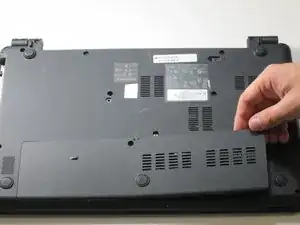

Remove the 16 2.5 x 8mm Phillips #0 screws from the back panel.

If you just want to replace the screen then skip this step and all the following steps up to Step 13.

I’ve followed this procedure several times trying to fix a dodgy screen on the same laptop. After the 4th time I realised that you do not need to disassemble the base part of the laptop at all. Just skip to Step 13, remove the 2 hinge screws and pull off the black screen surround. It needs a bit of jiggling but its much, much easier than trying to fight with the 3 ribbon cable connectors for the keyboard.

If you do actually need to replace the screen cable, then you have to follow the complete process.

Adrian Berry - 12/11/20

Schritt 4

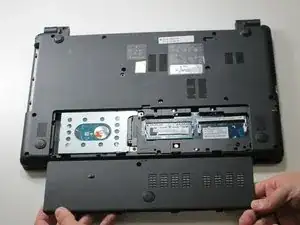

Remove the back panel by carefully disengaging it around the edges and then pull upwards.

Schritt 5

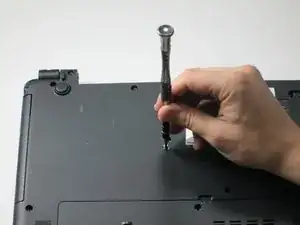

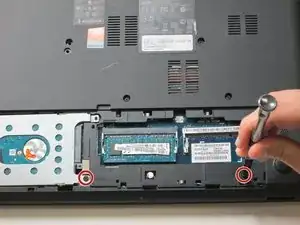

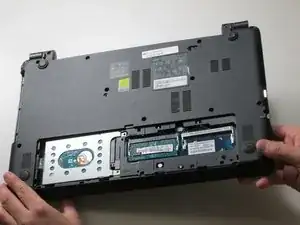

Unscrew the two remaining 2.5 x 8mm Phillips #0 screws from inside the bottom panel as designated in the image.

Schritt 6

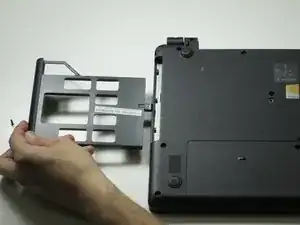

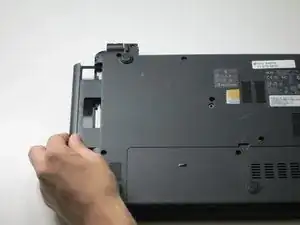

Slide out the plastic insert located on the left side, and remove, before returning the laptop to the face-up position.

Schritt 7

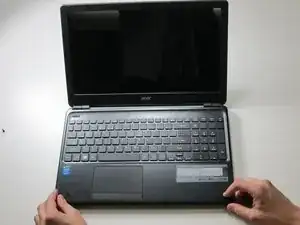

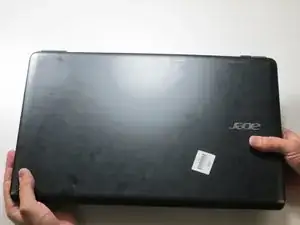

Carefully flip your laptop back over and open it up.

Schritt 8

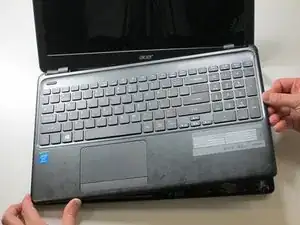

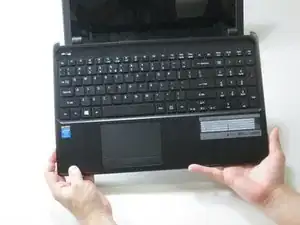

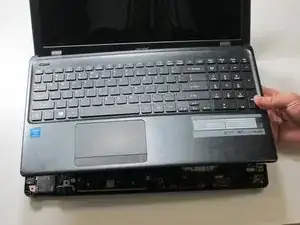

Carefully detach the top panel of the laptop and slowly lift it up to reveal the internal components.

The sides and front edge of the top panel have a lot of moulded in clips holding the top onto the bottom. I needed a spludger to lever the sides of the bottom case out to release the clips from the top

Adrian Berry - 04/05/20

Schritt 9

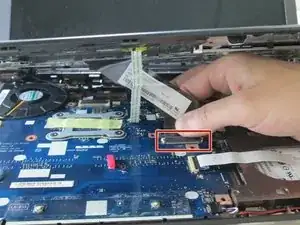

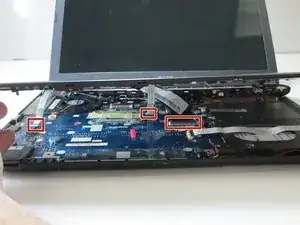

Locate the three ribbons that need to be unplugged, so the two halves of the device may be separated.

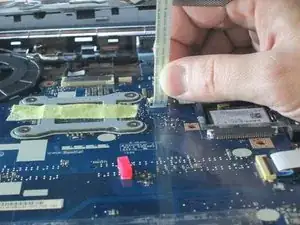

Unplug the large ribbon by sliding the retainer clip backward (toward the hinges), then gently pulling the cable out of the connector.

Schritt 10

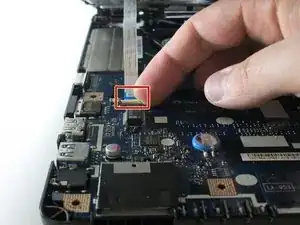

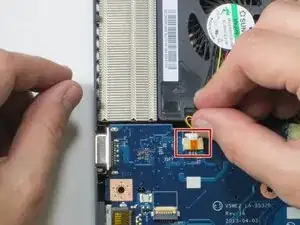

Remove the other two smaller ribbons by flipping open the small plastic tab that holds the ribbon in the connector.
Then simply pull the free ribbon out.

Schritt 11

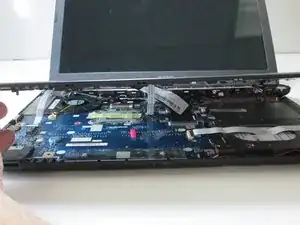

Lift the top panel all the way up and your laptop is now split into its two distinct halves.
