Einleitung
If you are ever in need to replace or upgrade the RAM for your ACER Aspire V5 laptop, this guide is for you! This guide will explain how to open up the back cover, and how to safely remove and insert RAM memory sticks into your laptop.
Werkzeuge
Ersatzteile
-
-
Make sure you completely power off the device before proceeding.
-

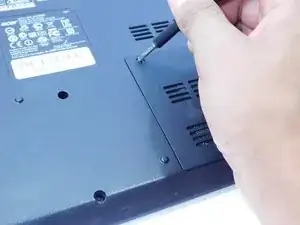

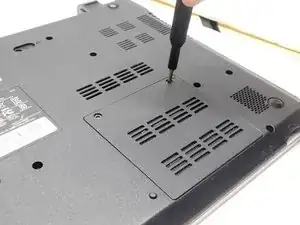

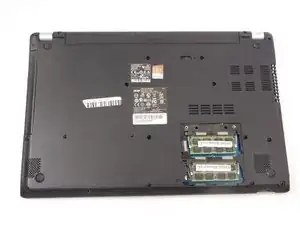

Turn over the device to display the back cover and remove the two marked Phillips #0 screws.
-
-
-

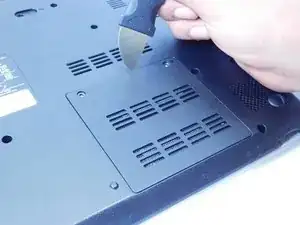

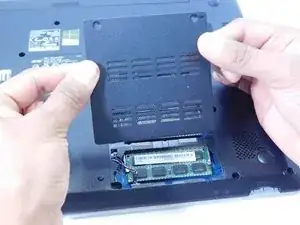

Once the screws have been removed, utilize a jimmy tool to pry open the back cover. Carefully lift the cover and set it aside for now.
-
-
-

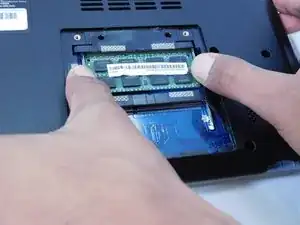

With two fingers, push the latches holding the DIMM to the sides.
-

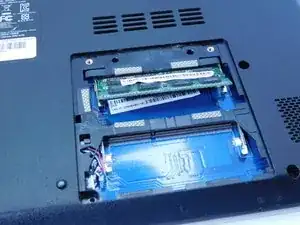

The DIMM will tilt upwards once it is released from the slot.
-

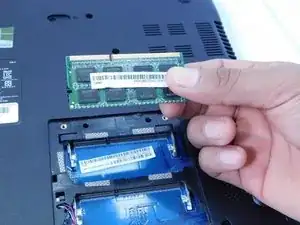

Carefully secure the DIMM and remove it.
-
-
-

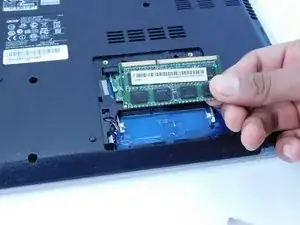

Insert the replacement DIMM into the slot.
-
Once inserted, push the DIMM down gently until it snaps into place.
-
To reassemble your device, follow these instructions in reverse order with new RAM cards.
