Einleitung

The speakers are necessary for audio communication while using the video phone's video call function. The speakers are not necessary for calls that do not involve video.

  1. CwALINBFRG3lawSU
    CwALINBFRG3lawSU
    wEBGAqtuuEjNRETN

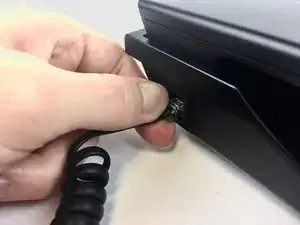

    • Press upwards with your index finger on the 4P4C connector as shown in the image.

    • Pull the connector gently out of its socket.

  2. PG3tRTuKqQlI5RWM
    • Flip the main body of the video phone so that the bottom is facing up.

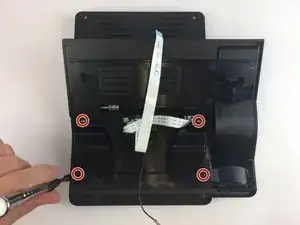

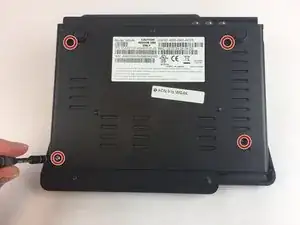

    • Use the Phillips #0 Screwdriver to remove the four Phillips head screws (6 mm) highlighted by the red circles.

  3. Q3l3R4pge3kL1qXL
    Q3l3R4pge3kL1qXL
    2WNvEJjr651qVfNQ
    • Lift the back case upwards to expose the inside components.

    • Red rectangles indicate the three ribbon cables.

    • The orange square indicates the blade connector.

  4. H1nJnykCkRaZiMbB
    H1nJnykCkRaZiMbB
    cjZIOWGvKBOu2UK4
    y6YS6PDqZIW4w4Vq

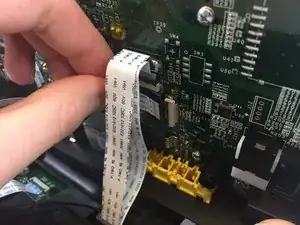

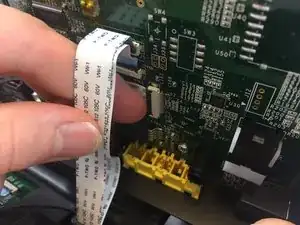

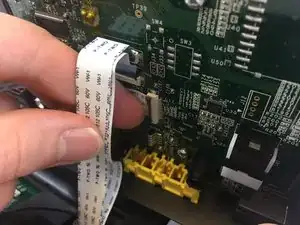

    • Disconnect the three ribbon cables from their insulation-displacement connectors by flipping up the black plastic clip.

    • Gently pull the ribbon cables out of their insulation-displacement connectors.

  5. KamBRkEkCsmhdmDW
    KamBRkEkCsmhdmDW
    bTXOFnB5KCrXaPtw

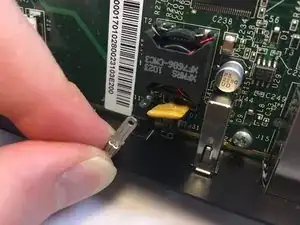

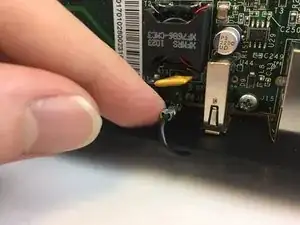

    • Disconnect the blade connector from the blade receptacle by gripping the exposed area of the blade connector.

    • Gently pull the blade connector out of the blade receptacle.

  6. wmOyF2gVXLklXk4r

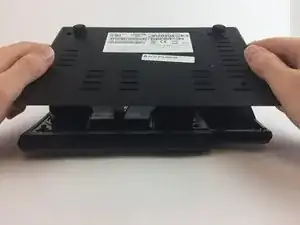

    • Gently lift up the lower case to separate it from the top case.

  7. 2H2t3M4NdkElwmLF
    • Use the Phillips #0 Screwdriver to remove the four Phillips head screws (6 mm) highlighted by the red circles.

  8. gWuGOXwdUHRQaXmV
    gWuGOXwdUHRQaXmV
    fx2MB2JKBhLhWrwF

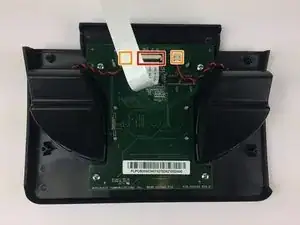

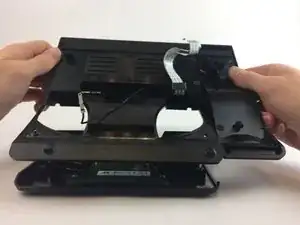

    • Gently lift up on the upper case to separate it from the keypad/speaker panel.

    • The ribbon cable is highlighted by the red rectangle.

    • The 2-pin JST connectors are highlighted by the orange squares.

  9. 3xWtvludi4We2IyU
    3xWtvludi4We2IyU
    h4b5jffmMDtgbonR
    eLMZ4cXuOfhGUY4r

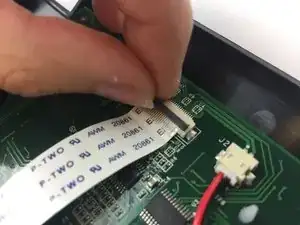

    • Disconnect the ribbon cable from its insulation-displacement connector by flipping up the black plastic clip.

    • Gently pull the ribbon cable out of its insulation-displacement connector.

  10. FFQFCVmucbGJomIM
    FFQFCVmucbGJomIM
    XFP5YYJh6GBIGt6e
    1AL3d4OdpcApSxpk

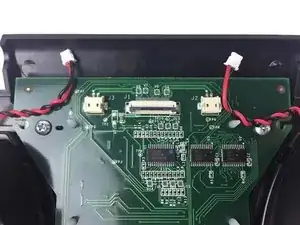

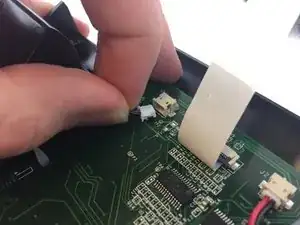

    • Disconnect the two white 2-pin JST connectors from the keypad/speaker circuit board by tugging gently until they release.

    Third photo in this collection may be unnecessary.

    Cason Fluharty -

  11. I14hoqZr4OJE6WiC
    I14hoqZr4OJE6WiC
    HCLO6nePWCw2N5Nq

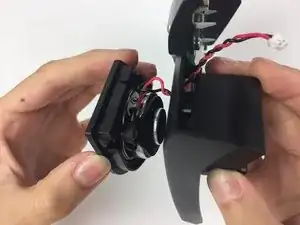

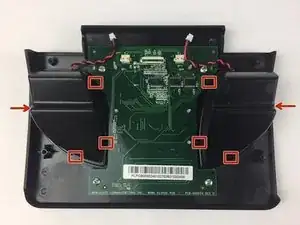

    • The red markers indicate the four plastic clips arranged around the base of each speaker housing.

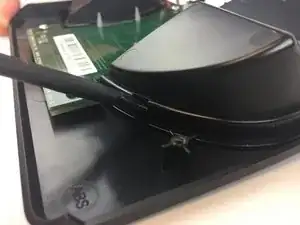

    • Use a plastic spudger to push in the four plastic clips.

  12. C1njk5rAPwavUqTP
    C1njk5rAPwavUqTP
    Dfm4eALCeErDBuRC

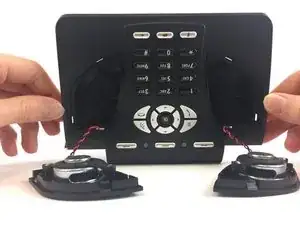

    • Once both speakers have been unclipped, gently pull the wire through the housing .

    First photo here may be unnecessary.

    Cason Fluharty -

  13. BLKkyX3Z6TyRcevp
    BLKkyX3Z6TyRcevp
    Ya3eqC6Vft3XS2Gw
    xHWBaKATJSW65Mwm

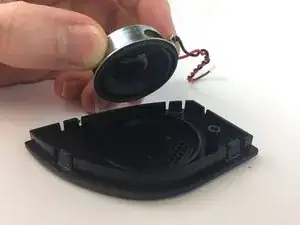

    • Use the Phillips #0 Screwdriver to remove the two Phillips head screws (6 mm)

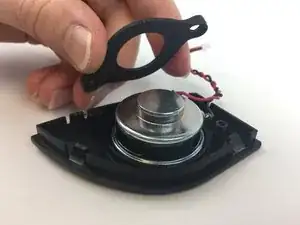

    • Gently lift up the black cover to expose the now freed speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
