AEE Mach 1 Battery Replacement

Geschrieben von: Patrick Lewis
  • Kommentare: 2
AEE Mach 1 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

20 Sekunden

Einleitung

This guide will show you how to properly remove and replace the battery from the AEE Mach 1 drone. It is important to first power off the device before beginning any repairs. Disassembly and replacement will not require any additional tools or skills. The process simply involves orienting the drone camera away from you, pressing the battery retainment tabs and pulling, followed by reinserting the new battery until hearing the tabs click.


  1. uT5FQNDGUr4XA6p1

    • Make sure that your device is powered off before doing any work.

    • The battery is located at the back of the drone, on the opposite end of the drone from the camera.

    • There are two tabs on the edge of each side of the battery.

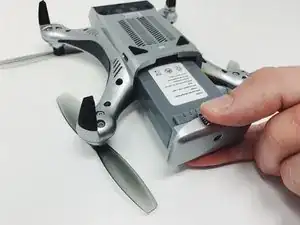

  2. UeG14WRwE3gPvBSH

    • To remove the battery, simply grip the battery by the tabs, press down on both tabs, and pull the battery out.

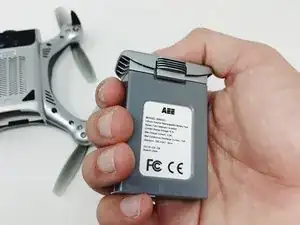

  3. m5LZGLdHh5yrxEND

    • To replace the battery, simply slide it back into its place until the tabs click back into place. If you are having trouble doing this, you may be putting it in upside down. Try flipping it over and trying again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
