Einleitung
The front and rear cameras can sometimes break or malfunction, and must then be replaced to continue to be able to take pictures and video.
Ersatzteile
-
-
Remove screws.
-

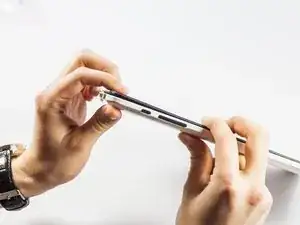

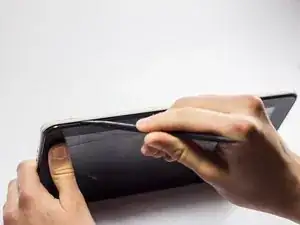

Insert spudger tool on the middle of the left side, between the white and black plastic.
-
Slide in a plastic opening tool and use it to further pull the back off.
-
Work your way around the edge of the tablet with the plastic opening tool and insert more as needed.
-

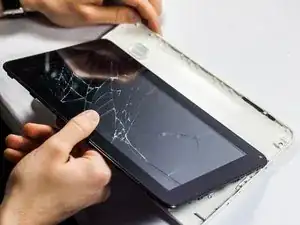

Pull off the back cover.
-
-
-

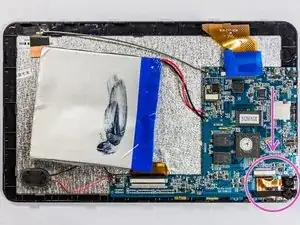

Locate the camera unit and note where it is attached to the motherboard.
-

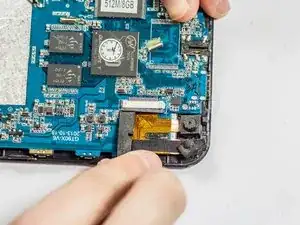

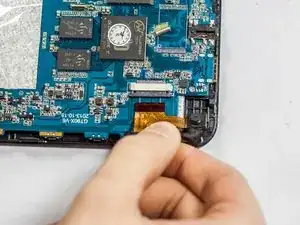

Grasp the camera unit with tweezers or fingers, and pull firmly to remove it from the adhesive holding it to the motherboard.
-

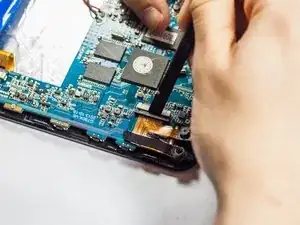

Using the spudger, carefully loosen the slot's plastic cover piece holding the ribbon cable in place.
-
Pull the ribbon cable out.
-
Remove the old adhesive with tweezers.
-
-
-
Apply a small square of new adhesive in the same spot as the old adhesive was previously.
-

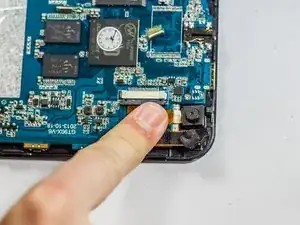

Gently slide the new camera unit's ribbon cable into the slot.
-
Press the plastic cover piece back in place with the spudger.
-

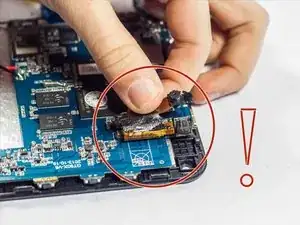

Firmly press the new camera onto the adhesive, making sure to line it up correctly.
-
-
-
Replace the back cover with the new camera unit in place.
-

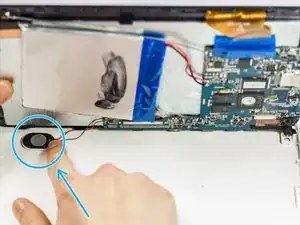

Gently press the speaker into place.
-
Replace the screws.
-
