Einleitung
The speaker can sometimes stop working and must be replaced to continue to hear noise from the tablet.
Ersatzteile
-
-

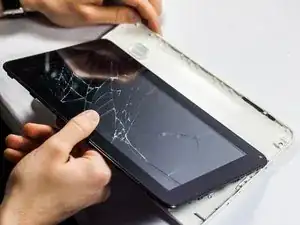

Remove screws.
-

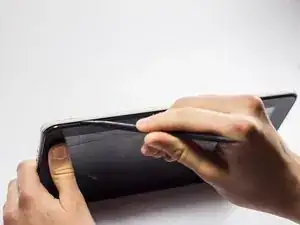

Insert spudger tool on the middle of the left side, between the white and black plastic.
-

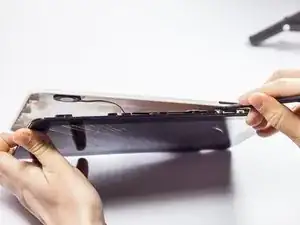

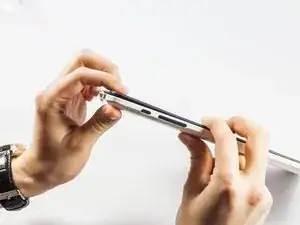

Slide in a plastic opening tool and use it to further pull the back off.
-
Work your way around the edge of the tablet with the plastic opening tool and insert more as needed.
-
Pull off the back cover.
-
-
-

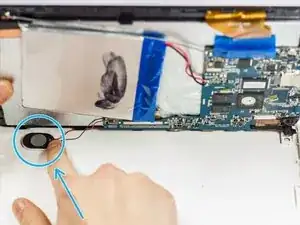

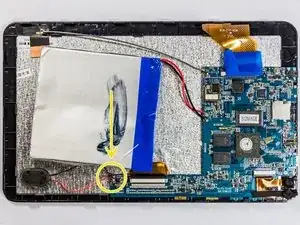

Locate the speaker solder points and note where it is attached to the motherboard.
-

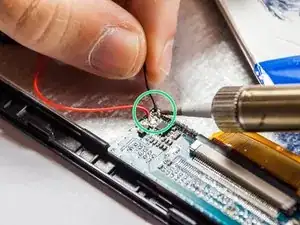

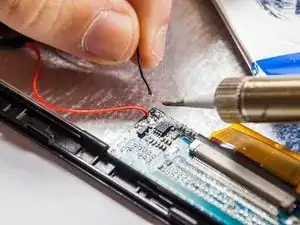

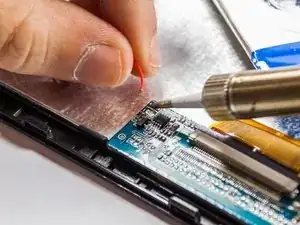

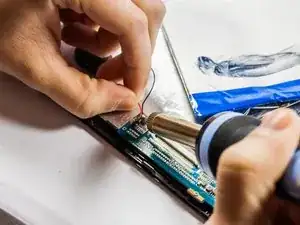

Solder the old speaker out of its mark. (Touch the tip of the solder iron to the soldering point).
-
-
-
Replace the back cover with the new rear speaker unit in place.
-
Gently press the speaker into place.
-
Replace the screws.
-
