AKASO KingPad A90 WiFi Antenna Replacement

Geschrieben von: Daniel Garcia
  • Kommentare: 0
AKASO KingPad A90 WiFi Antenna Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. N6YgrWeZMOAwJp6a
    N6YgrWeZMOAwJp6a
    diOfEGYbMQexBHyJ
    qaGGIa1BLHDx4oGm

    • Remove screws.

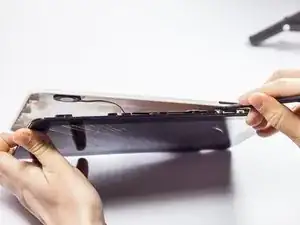

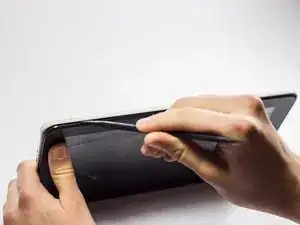

    • Insert spudger tool on the middle of the left side, between the white and black plastic.

    • Slide in a plastic opening tool and use it to further pull the back off.

    • Work your way around the edge of the tablet with the plastic opening tool and insert more as needed.

    • Pull off the back cover.

  2. 3R2J6ULm6M5lpNpU
    3R2J6ULm6M5lpNpU
    lgsIOhcIdRf5BLqU
    WtbJle1YdqqIWHC6

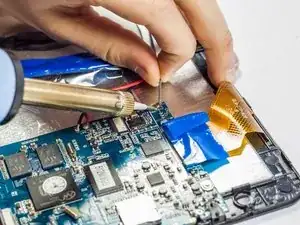

    • Plug in soldering iron and let it warm up for ten minutes.

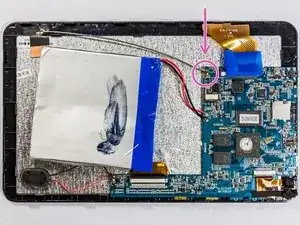

    • Locate the the soldering points of the antenna on the motherboard.

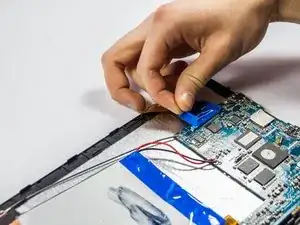

    • Peel back the protective tape that covers the display ribbon cable so it isn't too close to the soldering points.

    • Solder hardens and cools quickly; you don’t need to wait to move on to the next step.

  3. QCKgYNxRPsEfGN1X
    QCKgYNxRPsEfGN1X
    UMNfseOQwIlqgADm
    bkQwANdLjbFJqoyG

    • If you do not know how to solder, be careful and follow steps precisely because you could otherwise ruin the device.

    • With the new antenna locate the solder points.

    • Add solder to the solder points to allow soldering.

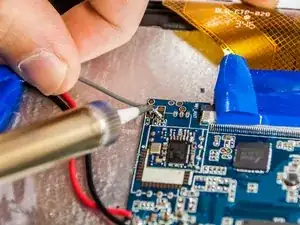

    • Place the antenna at each point and melt the solder point.

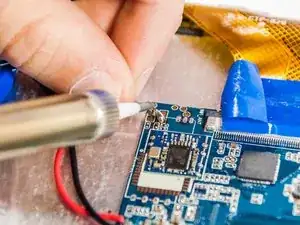

    • Place the antenna solder location into the melted solder blob and let it sit for about 2 seconds.

    • Repeat this step for each of the solder points.

  4. BioTMpMPDS2CKgag
    BioTMpMPDS2CKgag
    xYBDxKAcxIGkctoc
    bpyv2B5NsGFKfxyc

    • Replace the back cover with the new part in place.

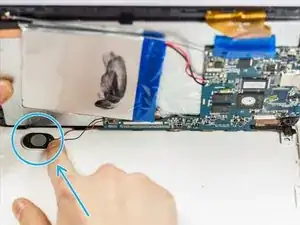

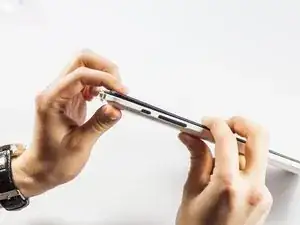

    • Gently press the speaker into place.

    • Don't let the volume rocker unit fall out of place.

    • Replace the screws.
