APS Tech 101629 Exhaust Fan Replacement

Geschrieben von: Patrick Meyer

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 35 Minuten

Einleitung

This repair guide will walk you through the steps to removing and replacing the fan of your APS Tech 101629 CD-Drive. Fans are easily replaced and the process for removing this fan is fairly simple.

First the casing, channel switch, and power switch will need to be removed.

Werkzeuge

Schritt 1

Pry all four of the plastic feet off the bottom of the enclosure using the iPod opening tool.

Schritt 2

Unscrew the four screws previously covered by the feet with a Phillips #1 screwdriver.

Schritt 3

Flip the device right side up.
Gently slide the casing upwards and off the hard drive.

Schritt 4

Flip device upside down again.
Gently pry the bottom gray casing away from the device.

Schritt 5

Rotate so the back of the device is facing you.
Gently pry the back casing away.
When the back casing is removed, the fan will become loose.

Schritt 6

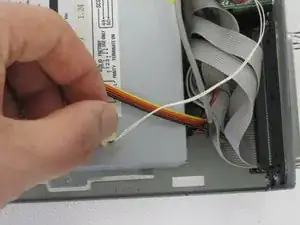

Find the conjoined ID cable wires that are colored black, orange, and yellow.
Lift white portion of cable wires to disconnect it.

Schritt 7

At this point, the fan is loose and can be easily moved but not disconnected.

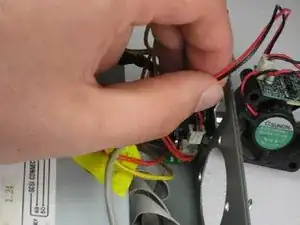

Using the spudger, depress the pressure holders at all four corners of the fan.

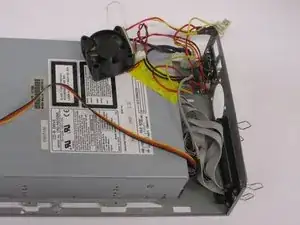

Take out the fan and its cords, by pulling it outward from its cavity within the device.

Schritt 8

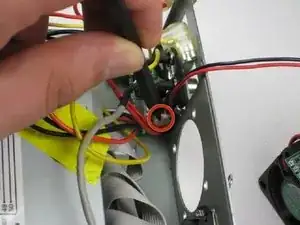

Depress 2 pressure holds on each side of the power switch.
Press out the back of the device.

Schritt 9

Remove all four 4 connections from the power switch.
Remember that the straight connections are on the far side, while the L-shaped connections are on the near side, and that both yellow connections are on top. This is helpful for reassembly.
These are very hard to get off, use patience and wiggling.
