APS Tech 101629 Internal Drive Component Replacement

Geschrieben von: Alexis Weckel
  • Kommentare: 0
APS Tech 101629 Internal Drive Component Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

This repair guide will walk you through the steps to removing and replacing the internal drive component of your APS Tech 101629 CD-Drive. First the external casing will need to be removed.

  1. fDlsMFELuavNmXsX
    fDlsMFELuavNmXsX
    wENWaGCLJCYrfjV3
    vIUXysHO1osi6MYA

    • Pry all four of the plastic feet off the bottom of the enclosure using the iPod opening tool.

  2. aXnC13l6CsmNSdMI
    aXnC13l6CsmNSdMI
    DYdGu4VnyRTOdarF

    • Unscrew the four screws previously covered by the feet with a Phillips #1 screwdriver.

  3. uaHqU3rVnrZQRvTo
    uaHqU3rVnrZQRvTo
    cCrI6AfHTFwWuSIN

    • Flip the device right side up.

    • Gently slide the casing upwards and off the hard drive.

  4. RikD2avOEMYnHOjj

    • Flip device upside down again.

    • Gently pry the bottom gray casing away from the device.

  5. jMXiEZmvyLJWqeaT
    jMXiEZmvyLJWqeaT
    lDoa1fW12J2AAfNb

    • Rotate so the back of the device is facing you.

    • Gently pry the back casing away.

    • When the back casing is removed, the fan will become loose.

  6. FqGhGsnWgK33JXUw
    FqGhGsnWgK33JXUw
    kGyXIrUfMMtOwlTu

    • Flip so device is upside down.

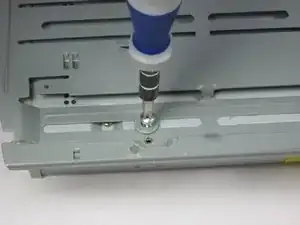

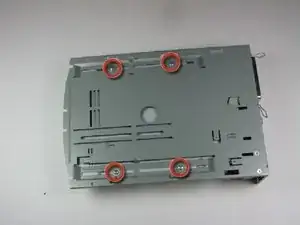

    • Remove 4 screws with Phillips #1 screw driver.

    • Be sure to save the washers that seperate the screws from the baseplate for reassembly.

  7. sObqHDVx3nHV1yKv
    sObqHDVx3nHV1yKv
    sSUV4BPsNtIINlkS

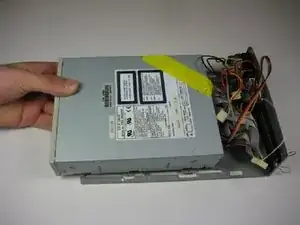

    • Slide the internal drive component away from the back of the device.

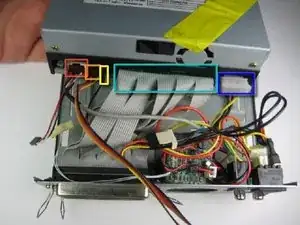

    • Remove the connections from the back of the internal component in the order of your choosing, we suggest left to right. The connections are:

    • Audio Connection

    • SCSI ID

    • Terminate On

    • SCSI Connection

    • DC Input (power)

Abschluss

To reassemble your device, follow these instructions in reverse order.
