APS Tech 101629 Power Switch Replacement

Geschrieben von: Alexis Weckel
  • Kommentare: 0
APS Tech 101629 Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

This repair guide will guide you through the steps to removing and replacing the power switch of your APS Tech 101629 CD-Drive.

First the external casing, and channel switch will need to be removed.

  1. fDlsMFELuavNmXsX
    fDlsMFELuavNmXsX
    wENWaGCLJCYrfjV3
    vIUXysHO1osi6MYA

    • Pry all four of the plastic feet off the bottom of the enclosure using the iPod opening tool.

  2. aXnC13l6CsmNSdMI
    aXnC13l6CsmNSdMI
    DYdGu4VnyRTOdarF

    • Unscrew the four screws previously covered by the feet with a Phillips #1 screwdriver.

  3. uaHqU3rVnrZQRvTo
    uaHqU3rVnrZQRvTo
    cCrI6AfHTFwWuSIN

    • Flip the device right side up.

    • Gently slide the casing upwards and off the hard drive.

  4. RikD2avOEMYnHOjj

    • Flip device upside down again.

    • Gently pry the bottom gray casing away from the device.

  5. jMXiEZmvyLJWqeaT
    jMXiEZmvyLJWqeaT
    lDoa1fW12J2AAfNb

    • Rotate so the back of the device is facing you.

    • Gently pry the back casing away.

    • When the back casing is removed, the fan will become loose.

  6. fRddXDyqPPHyXfu1
    fRddXDyqPPHyXfu1
    KSIAZLujLIylBIOx

    • Find the conjoined ID cable wires that are colored black, orange, and yellow.

    • Lift white portion of cable wires to disconnect it.

  7. f4VCPRtFDlNlbj1C
    f4VCPRtFDlNlbj1C
    RkRyN6MY6AhUPOs1
    ZaSLvfRTK1CIu4LA

    • At this point, the fan is loose and can be easily moved but not disconnected.

    • Using the spudger, depress the pressure holders at all four corners of the fan.

    • Take out the fan and its cords, by pulling it outward from its cavity within the device.

  8. mVYQQZqYZyc2wvot
    mVYQQZqYZyc2wvot
    jSgmLa5coGbuJBqo

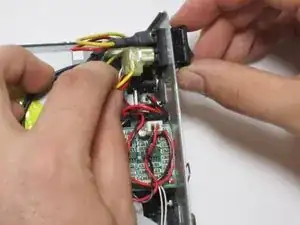

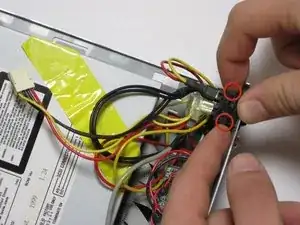

    • Depress 2 pressure holds on each side of the power switch.

    • Press out the back of the device.

  9. LIRFXYHtQlUXW1mB
    LIRFXYHtQlUXW1mB
    htp323e1xO3klPxL

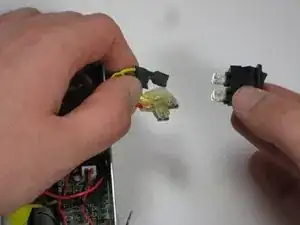

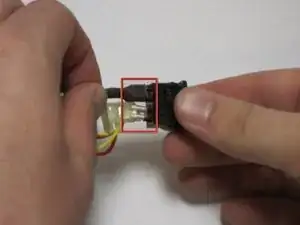

    • Remove all four 4 connections from the power switch.

    • Remember that the straight connections are on the far side, while the L-shaped connections are on the near side, and that both yellow connections are on top. This is helpful for reassembly.

    • These are very hard to get off, use patience and wiggling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
