ASUS Chromebook C100PA-RBRKT07 Trackpad Replacement

Geschrieben von: Lauren Schirle
  • Kommentare: 0
ASUS Chromebook C100PA-RBRKT07 Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 35 Minuten

Einleitung

Details to remove the trackpad of ASUS Chromebook Flip C100PA-RBRKT07

  1. UGjryEWbK2qPLggL

    • Use the T5 screwdriver to remove the nine 2.1 mm screws from the bottom of the device.

  2. 4cc1ZuiQjBCRCRnU

    • Use the iFixit opening tool to remove the 4 pads to reveal six 3.1 mm screws underneath.

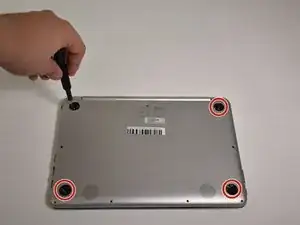

  3. IAjRMVT5Bi2GDRNM

    • Use the T5 screwdriver to remove the six 3.1 mm screws under the pads.

    • There might be a layer of tape that covers the screws. Remove the tape first with a pair of tweezers.

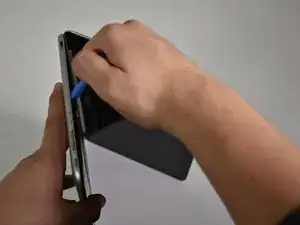

  4. LImlZgZG3qNdsnjq

    • Use the iFixit opening tool to remove the back of the laptop.

  5. n4GZU6T35tReXdgx

    • Use the blunt nose tweezers to separate the keyboard from the internal components.

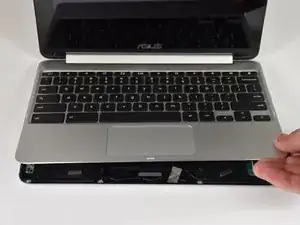

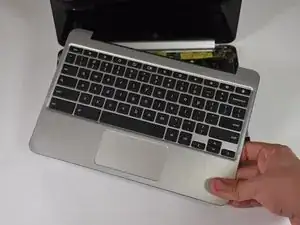

  6. ttTiVe3VwAMNZleh
    ttTiVe3VwAMNZleh
    hPJLoTe4A14mgJUo

    • Grip the keyboard and carefully pull it off the device.

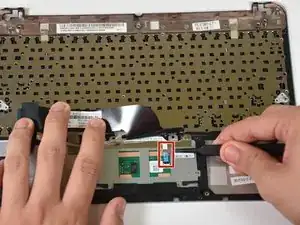

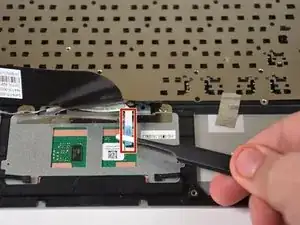

  7. mj5OkfGgULBxVliJ
    mj5OkfGgULBxVliJ
    ZpZCvVqPueGcRMiZ

    • On the back of the keyboard assembly, use the tweezers to pull the white cable from the track pad.

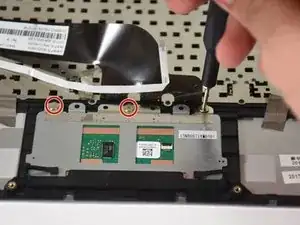

  8. 5gQ1fxpUtKgNL6Ob

    • Remove the three 1 mm screws from the track pad using the JIS 00 screwdriver.

  9. rU4bfkiYOiFbBLXy
    rU4bfkiYOiFbBLXy
    sm5xMDRFAM55Ylsy

    • Grip the track pad with the tweezers and slide it up and out of the keyboard assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
