ASUS Chromebook C100PA-RBRKT07 Volume Control Replacement

Geschrieben von: Lauren Schirle
  • Kommentare: 0
ASUS Chromebook C100PA-RBRKT07 Volume Control Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 8 Minuten

Einleitung

Details to remove the volume control of ASUS Chromebook Flip C100PA-RBRKT07

  1. UGjryEWbK2qPLggL

    • Use the T5 screwdriver to remove the nine 2.1 mm screws from the bottom of the device.

  2. 4cc1ZuiQjBCRCRnU

    • Use the iFixit opening tool to remove the 4 pads to reveal six 3.1 mm screws underneath.

  3. IAjRMVT5Bi2GDRNM

    • Use the T5 screwdriver to remove the six 3.1 mm screws under the pads.

    • There might be a layer of tape that covers the screws. Remove the tape first with a pair of tweezers.

  4. LImlZgZG3qNdsnjq

    • Use the iFixit opening tool to remove the back of the laptop.

  5. n4GZU6T35tReXdgx

    • Use the blunt nose tweezers to separate the keyboard from the internal components.

  6. DWqZMqfcRyxVre46

    • Use the tweezers to remove the white cable from the volume control component.

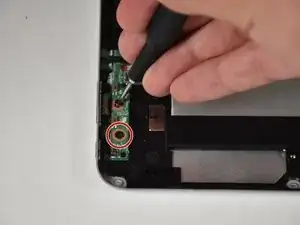

  7. MIwoCQx3REkeL35d

    • Remove the two 1.2 mm screws using the J00 size screwdriver.

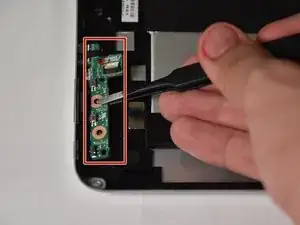

  8. wLAXXILUTZ4ot3FM

    • Grip the component using the tweezers and lift it out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
