ASUS Chromebook C200MA DS01 Battery Replacement

Geschrieben von: Christopher Lim
  • Kommentare: 0
ASUS Chromebook C200MA DS01 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 9 Minuten

Einleitung

This replacement guide will show you how to access and remove the battery in your Chromebook.

  1. QOqEWOE3ChjVEjFk

    • Before proceeding, power down your Chromebook. Close the display and lay it on a soft surface, top-side down.

    • Remove the five 8.4 mm Phillips #0 screws.

    • Remove the four 4.6 mm Phillips #0 screws.

  2. snNXDQ2grhFEgCeA

    • Use the plastic opening tool to gently work around the edge of the Chromebook until the back panel starts to lift off.

  3. qnsNoJntkABOhrAU

    • Remove the back panel by lifting it away from the Chromebook.

    • Some clicking will be heard as the panel is removed from the back, this is completely normal.

  4. NQYF6V6TnmG2FoSE
    NQYF6V6TnmG2FoSE
    UnCLUX1VRlSYjCIo
    gdWYZjfesf2rWH4c

    • To disconnect the battery, pinch the multi-color bundle cable with your thumb and forefinger and pull directly back.

  5. MCBdYlvZNFCtDVsU
    MCBdYlvZNFCtDVsU
    SGR1mDbJRHfTNMAg

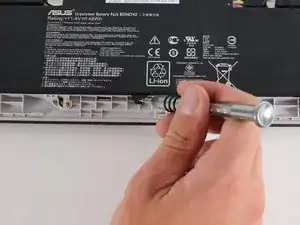

    • Remove the four 4.7 mm Phillips #0 screws that secure the battery to the Chromebook.

  6. O5pwVVZpQoifkHSh

    • Pull out the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
