ASUS Chromebook C200MA DS01 Motherboard Replacement

Geschrieben von: Christopher Lim
  • Kommentare: 0
ASUS Chromebook C200MA DS01 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will take you through a step-by-step process for the removal of your Chromebook’s motherboard.

  1. QOqEWOE3ChjVEjFk

    • Before proceeding, power down your Chromebook. Close the display and lay it on a soft surface, top-side down.

    • Remove the five 8.4 mm Phillips #0 screws.

    • Remove the four 4.6 mm Phillips #0 screws.

  2. snNXDQ2grhFEgCeA

    • Use the plastic opening tool to gently work around the edge of the Chromebook until the back panel starts to lift off.

  3. qnsNoJntkABOhrAU

    • Remove the back panel by lifting it away from the Chromebook.

    • Some clicking will be heard as the panel is removed from the back, this is completely normal.

  4. NQYF6V6TnmG2FoSE
    NQYF6V6TnmG2FoSE
    UnCLUX1VRlSYjCIo
    gdWYZjfesf2rWH4c

    • To disconnect the battery, pinch the multi-color bundle cable with your thumb and forefinger and pull directly back.

  5. stjRfWhhE2ZSStBr

    • Disconnect the USB board ZIF (zero insertion force) connector located towards the bottom left of the motherboard.

    • Flip the ZIF connector retaining flap up using either a spudger or your fingers.

    • Pull gently on the ribbon cable to disconnect it from the motherboard.

  6. asLwpgrQRTkqTRbV
    asLwpgrQRTkqTRbV
    y6WHHEnLOPgTuDCs
    ZlG6vyyRPpFYdQG3

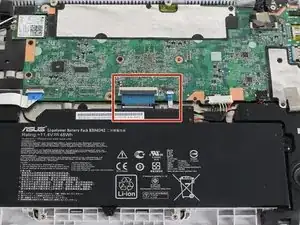

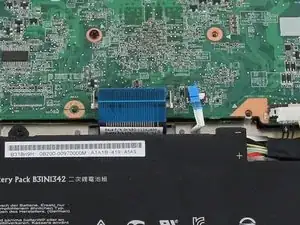

    • Disconnect the large keyboard and small touchpad ZIF connectors, both located in the middle of the bottom edge of the motherboard.

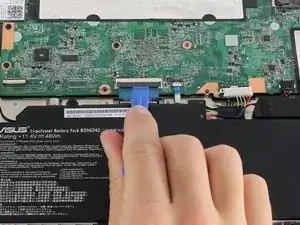

    • Flip both ZIF retaining flaps up using either a spudger or your fingers.

    • Gently pull on each ribbon cable to disconnect them from the motherboard.

  7. KdWUhiqQMgqcN44G
    KdWUhiqQMgqcN44G
    GNMMjnqUZtBUOUTP

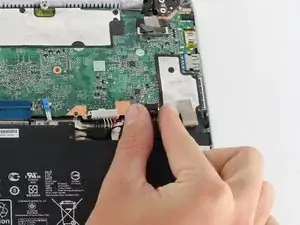

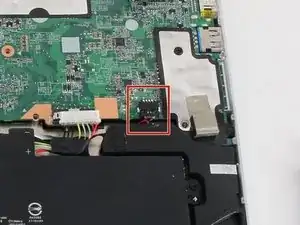

    • Disconnect the speaker's black bundled cable connector (the cable is white, black and red).

    • Pinch the black bundled cable connector between your thumb and pointer finger and pull.

  8. uKFeoeJ2UtM5bSKH
    uKFeoeJ2UtM5bSKH
    pIVOHxMkUwXaHeMV
    svHFQfJrbXZ4pN3c

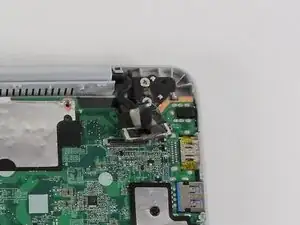

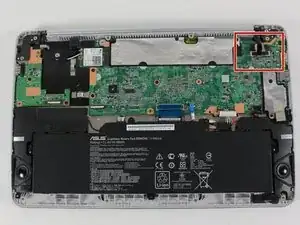

    • Disconnect the screen cable connector located towards the top right of the motherboard.

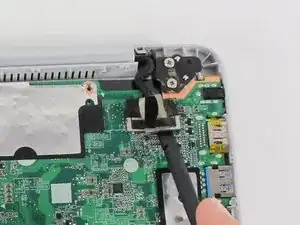

    • Using a spudger, gently pry up the sides of the connector.

    • Pull off the connector with your hands.

  9. anNDTAIej2QFFAMn
    anNDTAIej2QFFAMn
    ffQliIVN4aYFxiBA

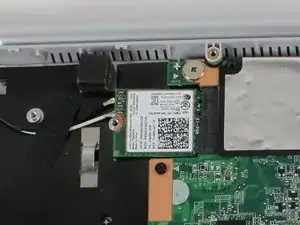

    • Disconnect the black and white antenna cable connectors for the WiFi card. The connectors look like small buttons on the ends of colored wires.

    • Gently pry the cable connectors off with your fingers or a spudger.

    • These connections are button-like and will have a little resistance when removing.

  10. hhwJlPRYWIwLIT1G

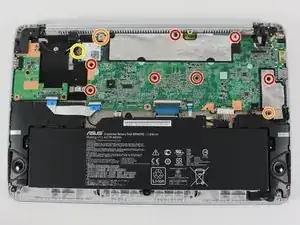

    • Remove the eight Phillips #0 4.7 mm screws.

    • Remove the Phillips #0 3.7 mm screw.

    • Remove the Phillips #0 2.8 mm screw.

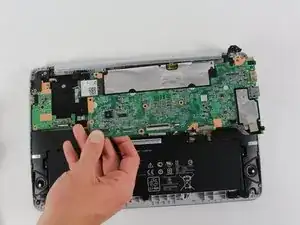

  11. PMcnsBMeZ4WjiVPP

    • Lift the motherboard from the Chromebook.

Abschluss

To reassemble your device, follow these instructions in reverse order.
