ASUS Chromebook C200MA DS01 Speaker Replacement

Geschrieben von: Christopher Lim
  • Kommentare: 0
ASUS Chromebook C200MA DS01 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will take you through a step-by-step process for the removal of your Chromebook’s speakers.

  1. QOqEWOE3ChjVEjFk

    • Before proceeding, power down your Chromebook. Close the display and lay it on a soft surface, top-side down.

    • Remove the five 8.4 mm Phillips #0 screws.

    • Remove the four 4.6 mm Phillips #0 screws.

  2. snNXDQ2grhFEgCeA

    • Use the plastic opening tool to gently work around the edge of the Chromebook until the back panel starts to lift off.

  3. qnsNoJntkABOhrAU

    • Remove the back panel by lifting it away from the Chromebook.

    • Some clicking will be heard as the panel is removed from the back, this is completely normal.

  4. NQYF6V6TnmG2FoSE
    NQYF6V6TnmG2FoSE
    UnCLUX1VRlSYjCIo
    gdWYZjfesf2rWH4c

    • To disconnect the battery, pinch the multi-color bundle cable with your thumb and forefinger and pull directly back.

  5. MCBdYlvZNFCtDVsU
    MCBdYlvZNFCtDVsU
    SGR1mDbJRHfTNMAg

    • Remove the four 4.7 mm Phillips #0 screws that secure the battery to the Chromebook.

  6. O5pwVVZpQoifkHSh

    • Pull out the battery.

  7. vTL4PFQUpHsAnILG
    vTL4PFQUpHsAnILG
    dWVZRWFnvvGCRnOV

    • Disconnect the speaker's black bundled cable connector on the motherboard.

    • The cables are red, white and black.

    • Pinch the black bundled cable connector between your thumb and pointer finger and pull.

  8. DZedjLKc4Ho3DuCP
    DZedjLKc4Ho3DuCP
    tNTQwtKCONdNUvMK

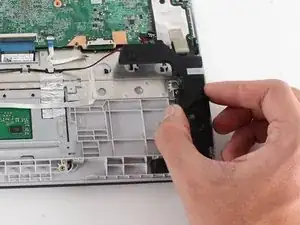

    • Using your hands or the small plastic opening tool, pry the right speaker from the Chromebook.

    • There are small adhesives under the speakers that will provide moderate resistance.

  9. LhtoPh1XUdUqdIow
    LhtoPh1XUdUqdIow
    e51CHnuET3HKyEGr

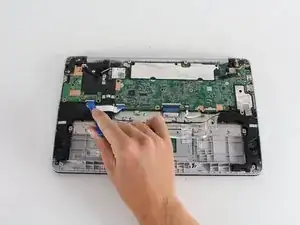

    • Disconnect the USB port ZIF(zero insertion force) connector that partially covers the left speaker.

    • Flip the ZIF retaining flap up using a spudger or your fingers.

    • Pull gently on the ribbon cable to remove it from the connector.

  10. jWNpatXT3JxDgoJw
    jWNpatXT3JxDgoJw
    OYLPqDXl6mbidSZ2

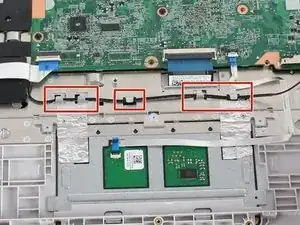

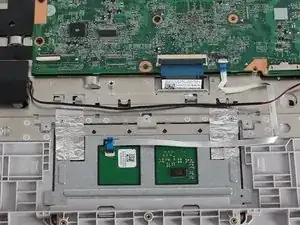

    • Unravel the connecting cord between the two speakers.

  11. lcbIZVfgFHpXbhdd
    lcbIZVfgFHpXbhdd
    RsupsydoYQKJEWBK
    P2iRrSiMEV3HSUJG

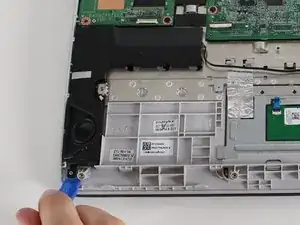

    • Using the small plastic opening tool, pry the left speaker from the Chromebook.

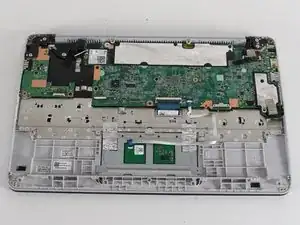

    • Remove the speakers.

    • There are small adhesives that will provide moderate resistance.

Abschluss

To reassemble your device, follow these instructions in reverse order.
