ASUS D550MA-DS01 CMOS Battery Replacement

Geschrieben von: redacted
  • Kommentare: 3
ASUS D550MA-DS01 CMOS Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

8 Minuten

Einleitung

The CMOS battery ensures that BIOS settings stay when your computer powers off. If the settings keep getting reset or the system time keeps changing, then it may be time to replace the CMOS battery.

  1. IatgNASQ3hXvWhkn
    IatgNASQ3hXvWhkn
    iiRdw62wNmKxi5BI

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Use a Philips #1 screwdriver to remove the nine screws from the back cover.

  2. lJ2GBLRuOdBFqLi1

    • Turn the laptop over and open the display.

    • Insert the flat edge of the spudger into the crease of the keyboard cover.

    • While the spudger is in the crease, carefully pry open the casing by sliding the spudger along the edge.

    • Do not use excessive force to pry open the lid. You should hear each plastic clip snap open as you run the spudger along the edge.

  3. IiePWMhuWqTJ4aKS
    IiePWMhuWqTJ4aKS
    WJjbCjHeECJhPDCg

    • Make sure that the entire cover has been released from the plastic clips.

    • Slowly lift the cover open from the front of the laptop, but do not completely remove it.

    • Note the locations of the three white and blue data cables connecting to the keyboard to the computer's main board.

    I need assistance. When I opened the cover, exposing the keyboard and main board I pulled the 3 blue and white data cables from the main board. How can I repair this? Someone please help!!!!!!

    Angela Rene'e Dortch -

  4. OZWdVhrDoBtyJgKC

    • If you are only replacing the battery, you can skip this step and the next. Shift the keyboard module away from the display and set it such that the fragile flex cables are not strained.

    • Disconnect the three data cables from the motherboard.

    • To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap. Carefully slide the unlocked cable out of the socket.

  5. Uv6bINfwu3V3KAtD

    • Remove the fully disconnected keyboard module from the laptop.

    No need to remove the keyboard. The ribbons are plenty long to give slack and allow access.

    hellcat -

    Good overall, thank you!

    hellcat -

  6. bvVQSKllrS6oKZjh
    bvVQSKllrS6oKZjh
    gKGEcQXFSOZngDLy

    • Do not use any metal tool to pry any type of battery. Doing so can puncture or short the battery, resulting in damage or injury.

    • Remove the two screws securing the battery to the laptop case with a Phillips #1 screwdriver.

  7. k1GDCkRsoVLSTr5l
    k1GDCkRsoVLSTr5l
    ERe5nBXqixIM6GNq

    • Lift the battery out and remove it:

    • The battery is connected to the motherboard on the left side.

    • Use your fingertips to evenly grip the battery on the left and right sides of the battery.

    • Pull straight up to lift the battery out of its place.

    • Do not use excessive force or attempt to pry the battery with any tools. Doing so will result in damage to the laptop.

  8. iC6kPCKmGTTRGXDK
    iC6kPCKmGTTRGXDK
    4v5f3mF3OCySQJPb

    • Remove the four screws that hold the hard drive in place with the Philips #1 screwdriver.

    • There are two screws connected to the motherboard and two screws connected directly to the case.

  9. JCdMtTehSOruC3OA

    • Remove the hard drive by sliding it to the right to disconnect it from the motherboard and lifting out.

    • Be sure to fully disconnect the hard drive from the motherboard to ensure that you do not damage the connectors.

    • If necessary, unscrew the old hard drive from the holster and screw the new one into the holster.

  10. jyKnEtKW5yjBAOvt
    jyKnEtKW5yjBAOvt
    KVPSOamDmnmZgxqq

    • Remove the single screw that is holding the drive in place using the Phillips #1 Screwdriver.

  11. Xsy2B46DOMHFLxbg

    • Slide the drive out to the right of the laptop to disconnect from the motherboard.

    • Lifting the drive straight out without sliding to the right will damage the motherboard.

  12. mUr42IG11K1KbgIY
    mUr42IG11K1KbgIY
    YggCEb5SFRP3uZX1

    • Remove the 9 screws from the motherboard using the Philips #1 screwdriver.

    • While unscrewing the screws, it may be helpful to use the tweezers to keep control of the screws.

  13. miYYyOXSiC5wbgZT
    miYYyOXSiC5wbgZT
    6uAGQ1caIGJVlhRj
    I1QlLhERVuDL3tEy

    • Disconnect the three cables attached to the motherboard.

    • Do not pull the cables by their wires. This can lead to damage to the cables.

    • The large, black cable is connected to the screen. Carefully wiggle the cable out by gripping the black tape with your fingers.

    • There may be clear tape holding the screen connector in place.

    • The cable for the fan and speaker use similar connectors. Use the black spudger or carefully grip the sides of each connector with your fingers to slowly pull them out.

  14. PRCxr3YEWvNbsiri

    • Pull the motherboard to the right to clear the peripheral connections of the laptop casing.

    • Lift the motherboard out of the laptop.

  15. 3thfT1hoIJA1Y5Gr

    • Locate the CMOS battery on the reverse side of the motherboard.

  16. hxrlwqFQTVjBI6aB
    hxrlwqFQTVjBI6aB
    r3u4DryoIuV13TAT

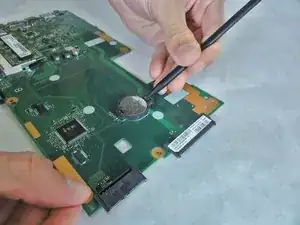

    • Place the narrow end of the black spudger in the small recess between the battery and its housing.

    • Gently slide in the spudger and pry the battery out.

    • The battery should spring out of the housing.

  17. XLAUGjAjvswHbOCM

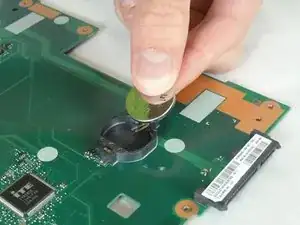

    • Lift the battery out of the housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
