ASUS D550MA-DS01 Power Button Replacement

Geschrieben von: Calvin Wieczorek
  • Kommentare: 3
ASUS D550MA-DS01 Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

1 Minute

Einleitung

The Power Buttons serves as the primary interface to boot up your computer. This guide will give you a step-by-step procedure on how to replace your Power Button in the case that it goes bad.

  1. IatgNASQ3hXvWhkn
    IatgNASQ3hXvWhkn
    iiRdw62wNmKxi5BI

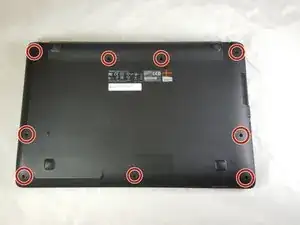

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

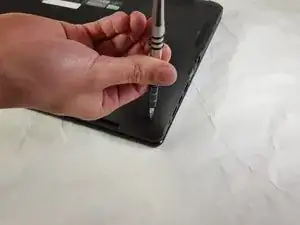

    • Use a Philips #1 screwdriver to remove the nine screws from the back cover.

  2. lJ2GBLRuOdBFqLi1

    • Turn the laptop over and open the display.

    • Insert the flat edge of the spudger into the crease of the keyboard cover.

    • While the spudger is in the crease, carefully pry open the casing by sliding the spudger along the edge.

    • Do not use excessive force to pry open the lid. You should hear each plastic clip snap open as you run the spudger along the edge.

  3. IiePWMhuWqTJ4aKS
    IiePWMhuWqTJ4aKS
    WJjbCjHeECJhPDCg

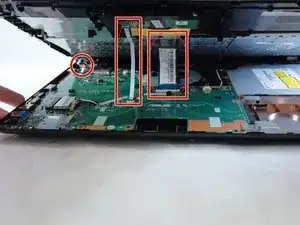

    • Make sure that the entire cover has been released from the plastic clips.

    • Slowly lift the cover open from the front of the laptop, but do not completely remove it.

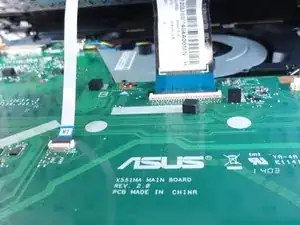

    • Note the locations of the three white and blue data cables connecting to the keyboard to the computer's main board.

    I need assistance. When I opened the cover, exposing the keyboard and main board I pulled the 3 blue and white data cables from the main board. How can I repair this? Someone please help!!!!!!

    Angela Rene'e Dortch -

  4. OZWdVhrDoBtyJgKC

    • If you are only replacing the battery, you can skip this step and the next. Shift the keyboard module away from the display and set it such that the fragile flex cables are not strained.

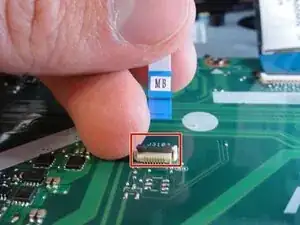

    • Disconnect the three data cables from the motherboard.

    • To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap. Carefully slide the unlocked cable out of the socket.

  5. Uv6bINfwu3V3KAtD

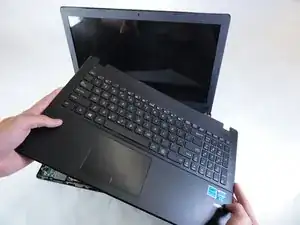

    • Remove the fully disconnected keyboard module from the laptop.

    No need to remove the keyboard. The ribbons are plenty long to give slack and allow access.

    hellcat -

    Good overall, thank you!

    hellcat -

  6. iIoXynbCQMute3fP
    iIoXynbCQMute3fP
    ZKWaXY6veSgFsgw5

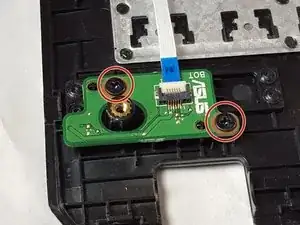

    • Lay the keyboard with the key-side down. The circuit for the Power Button is just beneath the location of the button.

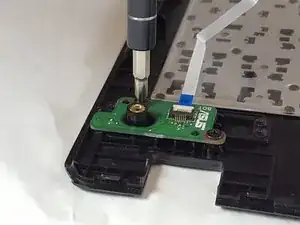

    • Unscrew the 2 screws holding the circuit in place, using the Philips #1 Screwdriver.

  7. 6YWERrwNPOP2YEsw

    • Lift upward and remove the circuit board for the Power Button from the Keyboard Module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
