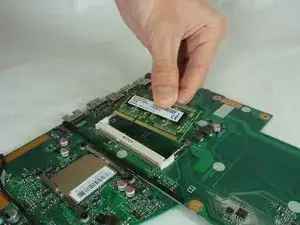

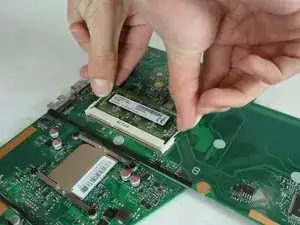

ASUS D550MA-DS01 RAM Replacement

Geschrieben von: redacted

Kommentare: 3

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

8 Minuten

Einleitung

Has your laptop given you the Blue Screen of Death? Are you ready to upgrade your memory? Use this guide to replace the memory in your laptop.

Werkzeuge

Schritt 1

Before you begin, be sure to turn off your laptop and unplug it from the outlet.
Use a Philips #1 screwdriver to remove the nine screws from the back cover.

Schritt 2

Turn the laptop over and open the display.
Insert the flat edge of the spudger into the crease of the keyboard cover.
While the spudger is in the crease, carefully pry open the casing by sliding the spudger along the edge.
Do not use excessive force to pry open the lid. You should hear each plastic clip snap open as you run the spudger along the edge.

Schritt 3

Make sure that the entire cover has been released from the plastic clips.
Slowly lift the cover open from the front of the laptop, but do not completely remove it.
Note the locations of the three white and blue data cables connecting to the keyboard to the computer's main board.

I need assistance. When I opened the cover, exposing the keyboard and main board I pulled the 3 blue and white data cables from the main board. How can I repair this? Someone please help!!!!!!

Angela Rene'e Dortch - 24/01/18

Schritt 4

If you are only replacing the battery, you can skip this step and the next. Shift the keyboard module away from the display and set it such that the fragile flex cables are not strained.
Disconnect the three data cables from the motherboard.
To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap. Carefully slide the unlocked cable out of the socket.

Schritt 5

Remove the fully disconnected keyboard module from the laptop.

No need to remove the keyboard. The ribbons are plenty long to give slack and allow access.

hellcat - 09/07/19

Good overall, thank you!

hellcat - 09/07/19

Schritt 6

Do not use any metal tool to pry any type of battery. Doing so can puncture or short the battery, resulting in damage or injury.
Remove the two screws securing the battery to the laptop case with a Phillips #1 screwdriver.

Schritt 7

Lift the battery out and remove it:
The battery is connected to the motherboard on the left side.
Use your fingertips to evenly grip the battery on the left and right sides of the battery.
Pull straight up to lift the battery out of its place.
Do not use excessive force or attempt to pry the battery with any tools. Doing so will result in damage to the laptop.

Schritt 8

Remove the four screws that hold the hard drive in place with the Philips #1 screwdriver.
There are two screws connected to the motherboard and two screws connected directly to the case.

Schritt 9

Remove the hard drive by sliding it to the right to disconnect it from the motherboard and lifting out.
Be sure to fully disconnect the hard drive from the motherboard to ensure that you do not damage the connectors.
If necessary, unscrew the old hard drive from the holster and screw the new one into the holster.

Schritt 10

Remove the single screw that is holding the drive in place using the Phillips #1 Screwdriver.

Schritt 11

Slide the drive out to the right of the laptop to disconnect from the motherboard.
Lifting the drive straight out without sliding to the right will damage the motherboard.

Schritt 12

Remove the 9 screws from the motherboard using the Philips #1 screwdriver.
While unscrewing the screws, it may be helpful to use the tweezers to keep control of the screws.

Schritt 13

Disconnect the three cables attached to the motherboard.
Do not pull the cables by their wires. This can lead to damage to the cables.
The large, black cable is connected to the screen. Carefully wiggle the cable out by gripping the black tape with your fingers.
There may be clear tape holding the screen connector in place.
The cable for the fan and speaker use similar connectors. Use the black spudger or carefully grip the sides of each connector with your fingers to slowly pull them out.
