ASUS D550MA-DS01 Wireless Network Card Replacement

Geschrieben von: Richard Johnson
  • Kommentare: 3
ASUS D550MA-DS01 Wireless Network Card Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

Wireless Network Interface Cards (NIC) allow your laptop to connect to WiFi networks. Over time, they may become damaged by heat or become outpaced by newer networks. Replacing the NIC is a simple procedure that can save you from scrapping your laptop!

  1. IatgNASQ3hXvWhkn
    IatgNASQ3hXvWhkn
    iiRdw62wNmKxi5BI

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Use a Philips #1 screwdriver to remove the nine screws from the back cover.

  2. lJ2GBLRuOdBFqLi1

    • Turn the laptop over and open the display.

    • Insert the flat edge of the spudger into the crease of the keyboard cover.

    • While the spudger is in the crease, carefully pry open the casing by sliding the spudger along the edge.

    • Do not use excessive force to pry open the lid. You should hear each plastic clip snap open as you run the spudger along the edge.

  3. IiePWMhuWqTJ4aKS
    IiePWMhuWqTJ4aKS
    WJjbCjHeECJhPDCg

    • Make sure that the entire cover has been released from the plastic clips.

    • Slowly lift the cover open from the front of the laptop, but do not completely remove it.

    • Note the locations of the three white and blue data cables connecting to the keyboard to the computer's main board.

    I need assistance. When I opened the cover, exposing the keyboard and main board I pulled the 3 blue and white data cables from the main board. How can I repair this? Someone please help!!!!!!

    Angela Rene'e Dortch -

  4. OZWdVhrDoBtyJgKC

    • If you are only replacing the battery, you can skip this step and the next. Shift the keyboard module away from the display and set it such that the fragile flex cables are not strained.

    • Disconnect the three data cables from the motherboard.

    • To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap. Carefully slide the unlocked cable out of the socket.

  5. Uv6bINfwu3V3KAtD

    • Remove the fully disconnected keyboard module from the laptop.

    No need to remove the keyboard. The ribbons are plenty long to give slack and allow access.

    hellcat -

    Good overall, thank you!

    hellcat -

  6. DDuIPyFMFUCf3MDR
    DDuIPyFMFUCf3MDR
    1JkBQgZEZ5qgQuNx
    LGs4x5MNDaQt5qqf

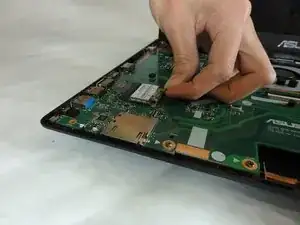

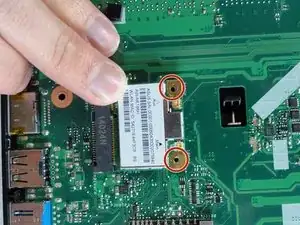

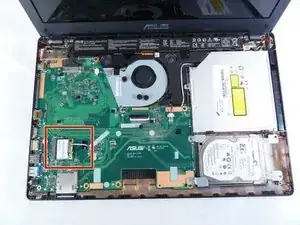

    • Locate the Network Interface Card (NIC) on the motherboard.

    • Note the orientation of the white and black wires on your NIC. The may connection differ from the picture.

    • Gently disconnect the white and black wires by pulling it off of the NIC card. These wires should come off easy.

    • If you are following these steps for the prerequisite to remove the motherboard, you do not need to completely remove the NIC. Just remove the wires. The proceeding step can be skipped.

  7. wOA5KYyoml4PWWlS
    wOA5KYyoml4PWWlS
    lEcMxYQKyWUFar3s

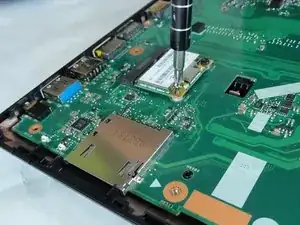

    • Remove the screws that are holding down the wireless network card with the Phillips #1 screwdriver.

    • After removing the screws, the NIC will lift up in a spring action.

  8. ELcm1YBRLomZ6bVI

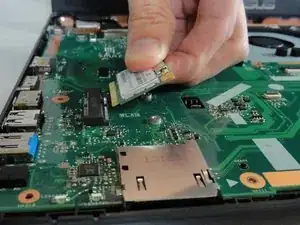

    • Gently pull out the NIC.

    • Do not use excessive force or wiggle the card out. The NIC should slide out easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
