Einleitung

One drop can mean the difference in having a usable tablet or not. That is why being able to replace a cracked or damaged screen is crucial to an electronics life span. Use this guide to replace the screen on your ASUS Eee Pad Transformer.

  1. huhern2sOPEGdkuG
    huhern2sOPEGdkuG
    l4Vh4UmSBDb6L4NE
    • Use T5 Torx Screwdriver to remove two 4.5 millimeter T5 screws on either side of the port on the bottom of the tablet.

    If you have a device with SIM card slot, remove SIM card first.

    Hans-Josef Hoffmann -

  2. akIPEmUwVK6DHRHl
    akIPEmUwVK6DHRHl
    NWFIirXbtoyl4vFn
    oPsftIREKjjmT4hR
    • Use the Plastic Opening Tool to pry between the main tablet body and the outer rim casing. Remove the outer rim casing by prying all the way around the device and pulling the rim upward.

    • The physical buttons are located on the outside of the rim on the right side, proceed with the guide to locate internal buttons.

  3. XkD1ItQaWHxvTW12
    • Remove the four 2 millimeter Phillips #00 screws at the corners of the tablet.

  4. qDTKMHfY2KICN1Pr
    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the front panel to the back panel found above the camera area, on the top portion of the tablet.

  5. kZsEXBCYUW1NkeLK
    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the front panel to the back panel found on the bottom portion of the tablet near the port.

  6. AOPZbHXhPfU3fche
    AOPZbHXhPfU3fche
    ra6NEVWkVq2kvacn
    • Remove back panel by pulling away from the remaining device.

  7. cMXSIFd4RxErE1Wf
    • Use Phillips #00 Screwdriver to remove four 3 millimeter screws found on the metal panel.

    TF101G has a flex print, probably the GSM antenna, glued on top of the metal panel. It is connected to a printed circuit board with a connector similar to that in step 8.

    Hans-Josef Hoffmann -

  8. LKtNaMFS3RDncIJV
    • Metal panel is glued to the battery. Remove with care.

    • Use Plastic Opening Tool to pry off the metal panel from the battery starting on the right side corners and working around the rest of the panel.

  9. ZnrXCAIQIPvnJ5eb
    • Do NOT pry the battery connector upward as shown in this photo. Instead, pull the connector straight out (in the direction of the wires).

  10. snD4cL6mrtCRWXmY
    snD4cL6mrtCRWXmY
    NMA2A21ecWqU2yCg
    xabyI1CWrqUycshS
    • Battery is glued to device. Remove with care.

    • Peel off tape from around the edges of the battery.

    • Insert Plastic Opening Tool into slot on side of battery found near the wire bundle.

    • Lift up the battery off of the device.

    e’ possibile avere le informazioni in italiano? Grazie

    Paolo Panacea -

  11. QdCbRxrJXHjeDLNP
    • Use a Phillips #00 Screwdriver to remove the six 3 millimeter screws securing the motherboard to the screen.

  12. JlbPYH6GEVo1Fncn
    JlbPYH6GEVo1Fncn
    AWCbkqFLABhRd3c2
    • Detach the Wifi and GPS antennas (three coaxial cables connected to the motherboard) using hands,metal spudger, or tweezers by lifting away from the device.

  13. RjASZ6rKWpGMgah4
    RjASZ6rKWpGMgah4
    kXKwyEsLJyMV2ZjI
    • Use fingers, plastic opening tool, or metal spudger to lift the clips to the ZIF connector. Remove the ribbon cables attached underneath.

  14. ONZ5EZGAWaiubTAB
    • Remove any tape that is holding down any free wires.

    • Carefully lift the motherboard and slide it out from underneath its constraints.

  15. 1l3p3o2TBLwMU5rE
    1l3p3o2TBLwMU5rE
    TRLIsHBbTKk1TMfL
    • Unclip the ribbon cable from the ZIF connector using a plastic opening tool or metal spudger.

    • Remove any taped on accessories

  16. kjHpsqUbnwEcyNKq
    • Use a Phillips #00 Screwdriver to remove the four 3 millimeter screws securing the two black ports at the bottom.

  17. mBtfeWSZGrr6WACG
    mBtfeWSZGrr6WACG
    oPubtAdsKKJhW1iL
    MZr3lUCxMLQZa4kK

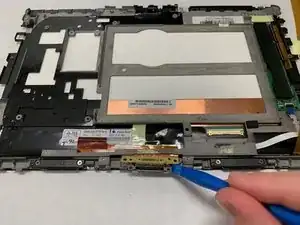

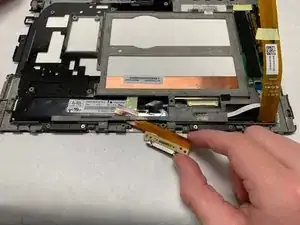

    • Use a Phillips #00 Screwdriver to remove the two 3 millimeter screws securing the charging port to the screen.

    • Carefully remove the charging port by lifting the metal end and carefully sliding the plastic attached underneath the grey screen constraint.

  18. YsKJklVYwOXV2xZc

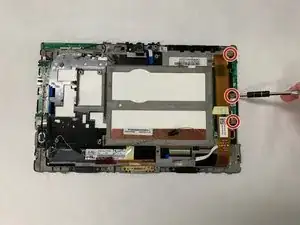

    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing volume button board.

  19. Ra6iEsvSwLqSBceL
    Ra6iEsvSwLqSBceL
    16sulYZeB4lv5jyW

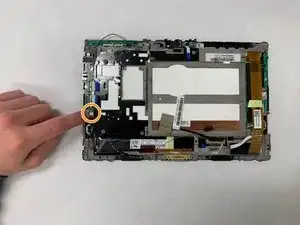

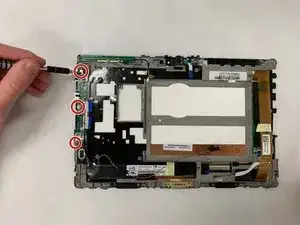

    • Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the headphone jack board.

    • Unclip the No-fuss ribbon cable connector using your fingernail or metal spudger.

  20. lkCRMXr3Q3cfa1oE
    lkCRMXr3Q3cfa1oE
    FSbDTZnDTpeUYQWt

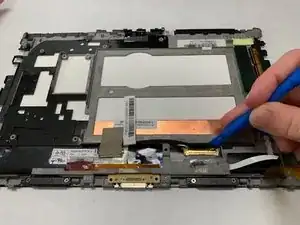

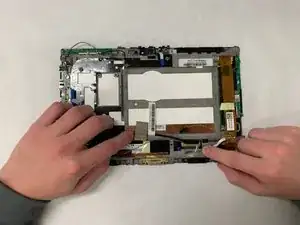

    • Use fingers, plastic opening tool, or metal spudger to lift the clip securing the display cable and remove by sliding it out.

  21. ODiWmK4h4QHLtc4B
    ODiWmK4h4QHLtc4B
    wMjrGc4cGyYG2UDR

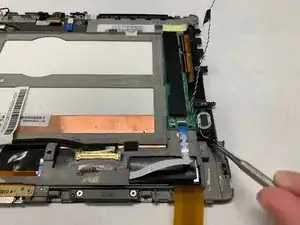

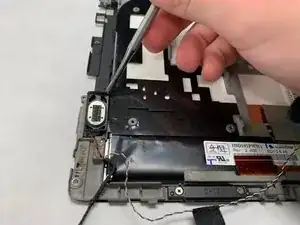

    • Use fingers, plastic opening tool, or metal spudger to lift the glued-in left and right speaker.

  22. tsPNpLe4JCEbEooH
    tsPNpLe4JCEbEooH
    jPXvtT1gtZLEoq3O
    G4hN3ZEcVswixtqZ

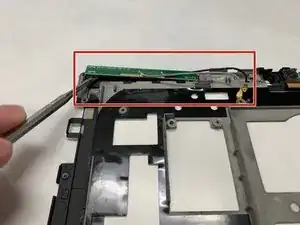

    • Detach the Wifi and GPS antenna from the screen. This piece is glued down so use a metal spudger to get under the piece and lift up.

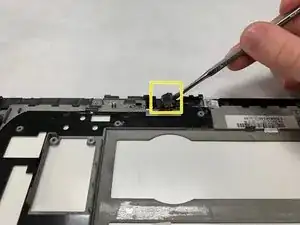

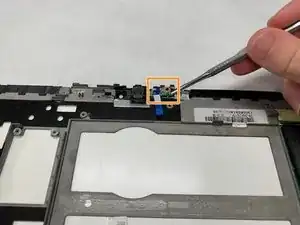

    • Use a metal spudger to lift up the small electric board next to the camera. This piece is glued down as well as secured by plastic pillars.

    • Using a metal spudger, lift the camera out of its spot. The camera is glued down.

  23. mIpUQDYtQfElIWsy
    mIpUQDYtQfElIWsy
    lhoCMadvfZ2rq6aH

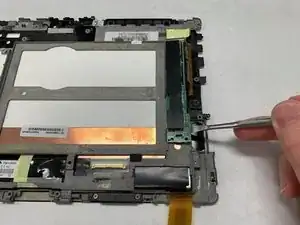

    • Detach the two ZIF connectors using your fingers, plastic opening tool, or metal spudger.

    • Using a metal spudger lift up the glued down motherboard.

  24. UBXosJrEbWIOVPAG

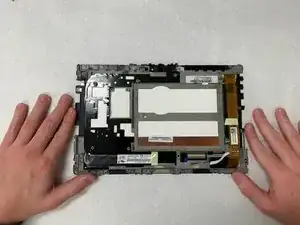

    • This is what the final screen should look like after everything is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
