Einleitung
Are the speakers in your ASUS Eee Pad Transformer no longer producing sound? If so, they need to be replaced. Here is the guide to replace the speaker set. All you need is a Phillips #0 Screwdriver and T5 Torx Screwdriver to remove the screws, a Plastic Opening Tool to remove the plastic border, and tweezers to remove the speakers and connection wire.
-
-
Use T5 Torx Screwdriver to remove two 4.5 millimeter T5 screws on either side of the port on the bottom of the tablet.
-
-
-
Use the Plastic Opening Tool to pry between the main tablet body and the outer rim casing. Remove the outer rim casing by prying all the way around the device and pulling the rim upward.
-
-
-
Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the front panel to the back panel found above the camera area, on the top portion of the tablet.
-
-
-
Use a Phillips #00 Screwdriver to remove the three 3 millimeter screws securing the front panel to the back panel found on the bottom portion of the tablet near the port.
-
-
-

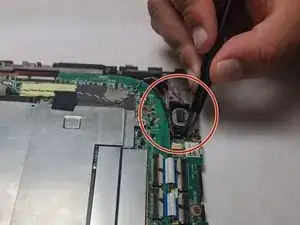

Use the tweezers to grab onto the speaker and lift gently up until the speaker is removed.
-
Use your fingers to gently slide the speaker under the orange strip.
-
-
-

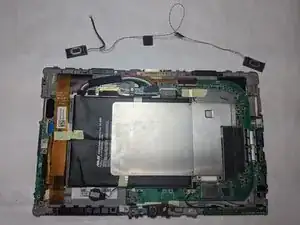

Use the tweezers to grab onto the speaker and gently lift it up until the speaker is removed from the device.
-
To reassemble your device, follow these instructions in reverse order.
If you have a device with SIM card slot, remove SIM card first.
