ASUS F550 RAM Replacement

Geschrieben von: Ryan
  • Kommentare: 3
ASUS F550 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

30 Minuten

Einleitung

  1. KKmSCMu5xGeFXktV
    KKmSCMu5xGeFXktV
    GV1pfTMafHceAcHB

    • Remove the battery, using release clips.

    • Ensure device has no residual power by attempting boot once battery is removed.

    • Remove either 2 (or 4 for a full teardown) 12mm phillips screws, then removing the bottom cover to gain access to the HDD and RAM.

    • Remove HDD and RAM cover

  2. cDB1dS1TZGyWUN3D
    cDB1dS1TZGyWUN3D
    VCLuVm2FDxhK4VsM

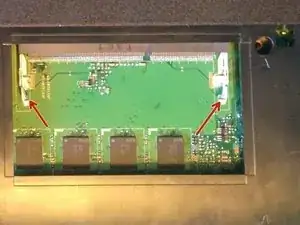

    • Release securing arms and remove RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ryan

Mitglied seit: 19/08/15

1414 Reputation

3 Kommentare

Pretty sure only 2 of the 4 screws need to be removed.

tobiaskuhn -

Can confirm only two screws required removal to enable access on my model F550C

Have successfully replaced HD once, but had slight issue getting it recognised

which is more of a BIOS issue, helps if you have a seperate bootable USB drive

but once recognised and OS installed, have several times swapped between the two

HDs (one Win8, one Linux - eventually plan to only use linux on this system).

Regards

Mike.

mihaly_k -

Yes only two need to be removed, however I initially wrote a tear down to gain access to the network card etc and the way ifix it is structured for guide creation these steps are in fact used in that longer guide. I've amended the instructions now so hopefully they are more clear now.

Ryan -
