ASUS FonePad 7 Vetro/Touch Replacement

Geschrieben von: Andrew
  • Kommentare: 0
ASUS FonePad 7 Vetro/Touch Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

  1. v5yf4KUPEjMIY4aq
    v5yf4KUPEjMIY4aq
    IVYBMdiM3KkEPIR1

    • Make sure your device is turned off. Then with a plastic opening tool, carefully remove the back panel by carefully working your way around the perimeter.

  2. LZIZI3FoKqirTCUH
    LZIZI3FoKqirTCUH
    1NwWkAuH1FLEkILb

    • Remove adesive strips.

    • Disconnect the battery connectors by carefully pulling down on them using a spudger or plastic opening tool.

  3. HGrxZSLTPWCMPFMu
    HGrxZSLTPWCMPFMu
    KtGdNghIvJYjuCpZ
    6aLTTVYZvcoKLeBj

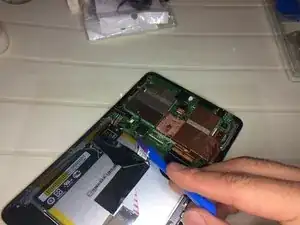

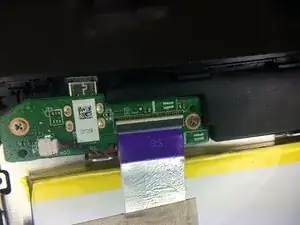

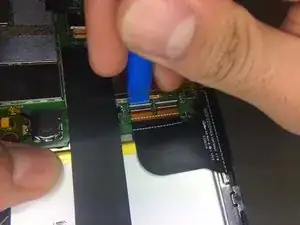

    • Disconnect Touch Connectors using a spudger or plastic opener tool.

    • Disconnect the ZIF connectors holding the battery.

    • You can also use your hand to remove ZIF connectors.

    • ZIF connectors are delicate so be careful when you are removing them.

  4. kaMrcHEYDIIXjUuU

    • Using a plastic opening tool carefully pry the battery loose. The battery is glued to the pad; slight pressure will be needed to remove the battery.

  5. Eoc3Diw1SsHqcOHx
    Eoc3Diw1SsHqcOHx
    5fYAHdQqDHWdiRRg

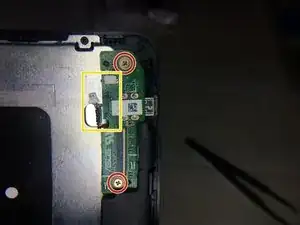

    • Disconnect cable

    • Remove the two Philips #0 screws from the power management board

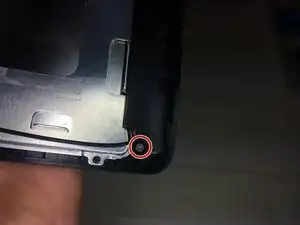

    • Remove Philips #0 screw

  6. RtAiuCQPInGRRIYy
    RtAiuCQPInGRRIYy
    xaCRCRLeeKngUyp6

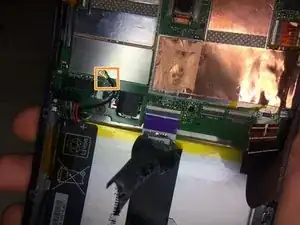

    • Remove GPS antenna with a spudger.

    • Disconnect the connector

  7. gHCIBSlmHEBM4Qq4
    gHCIBSlmHEBM4Qq4
    4Al1sdhLqHHHJsPW
    lJPeKiP4PANmuFMk

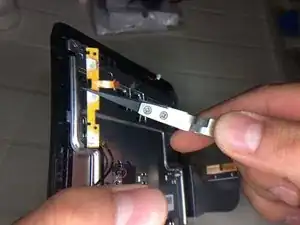

    • Remove the power and volume connector

  8. nKXFmgGVLJ15Lh6L
    nKXFmgGVLJ15Lh6L
    xDDcNXdjEKqF3rZ1

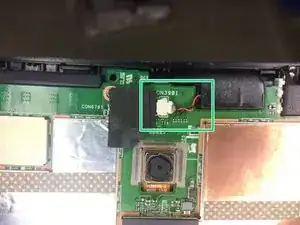

    • Disconnect Earpiece connector

  9. fELVyYHTXChPwgBw
    fELVyYHTXChPwgBw
    MebuVJGLRE1HQWyb

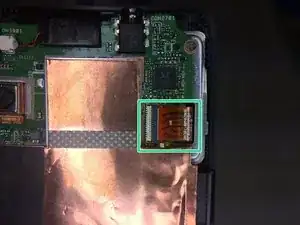

    • Remove the Display connector from motherboard.

  10. UsBTLyH1LN3sYtuQ

    • Remove 4screw Philips #0 from motherboard

  11. XHlyATG6S52yJYBE
    XHlyATG6S52yJYBE
    WbdPbXNf5kAE1pjH
    NRVyoyEHnVhejQyY

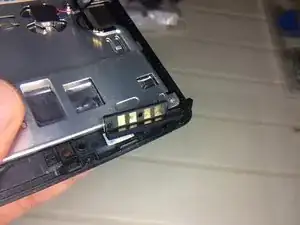

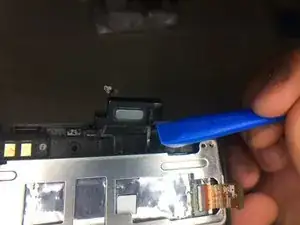

    • Remove Components

  12. jpn4x31qHkStALeC
    jpn4x31qHkStALeC
    1HLwcVEI3ZE33hLE

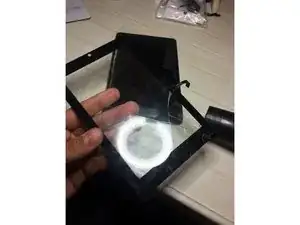

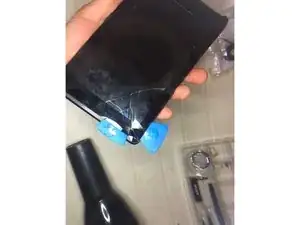

    • Inserisci qui la competenza.

  13. QuFgVdjNhahjBl2f

    • Inserisci qui la competenza.

Abschluss

Per rimontare il dispositivo, segui queste istruzioni in ordine inverso.
