The following guide will show you step by step how to replace the hard drive on the ASUS G73JH-BST Laptop.

The hard drive failure causes your computer booting failure, repeated program crashes, slow- down the system, freezes frequently, displays blue screen of death, hard drive making strange noises such as clicking or humming, corrupted data or etc. In some cases the failures can be fixed by troubleshooting.

Therefore, make sure to review the troubleshooting before you start using this instruction and check ASUS G73JH-BST7  supports HDDs before you buy a new HDD. Make sure to back up your hard drive If you can access it. And be sure to power off the laptop and unplug the power cord from the wall outlet.


  1. xOJ6YanKDRW5QVpD
    xOJ6YanKDRW5QVpD
    cCRFyjRebxmfGHDH

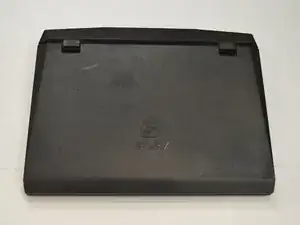

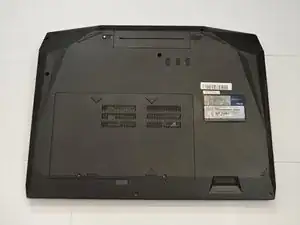

    • Flip the computer over, so that the bottom is facing up.

  2. wCdKKRNSSEOYcUQJ
    wCdKKRNSSEOYcUQJ
    4Lbi3RCvDrKXaqFD
    D2TLN45TOiYnfWoJ

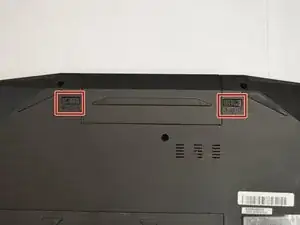

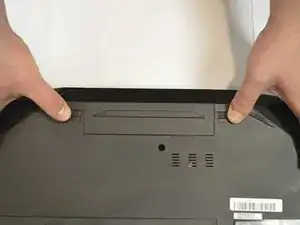

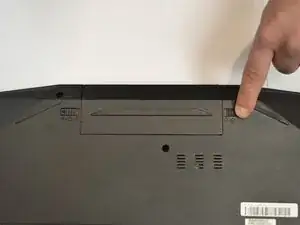

    • Slide the two tabs away from the battery.

    • The left tab will lock, but the right tab must be held away from the battery.

  3. gvRFeLYX1b3Mp4ZJ
    gvRFeLYX1b3Mp4ZJ
    B22YM2jAnYmTdTIJ
    fvdXGVJwWTmOsChq

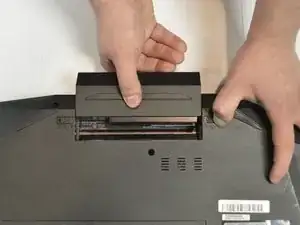

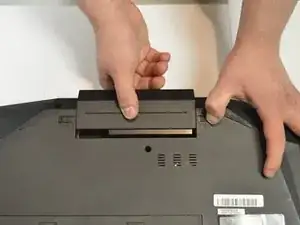

    • Use one hand to hold the non-locking tab in place, and use your other hand to pull the battery away from the computer.

  4. YFj1DwuAqWfsVKHI
    YFj1DwuAqWfsVKHI
    eyUFcCqfqDoxLLoq
    iY5BGBY1rI1VffGM
    • With the bottom of the computer facing up, remove the two 7.1 mm screws using a Phillips #00 screwdriver.

  5. 4IDeJ1TOJDCnN1iQ
    4IDeJ1TOJDCnN1iQ
    Uh2pDMNZIwWpAWN4
    MjZpBtMPsdYRpkMk
    • Carefully pry the panel away from the computer, by lifting with a finger.

    • There is a small tab where a finger will fit to lift the panel away from the computer.

  6. WrfHRGFVIJ5Ppt1Z
    WrfHRGFVIJ5Ppt1Z
    5c5MRxaLm3AOvXUE
    IZqdLYGOWXiIOl4Y

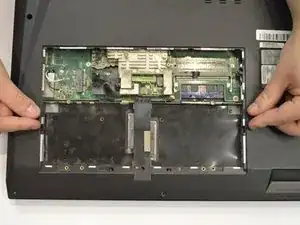

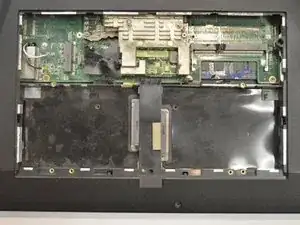

    • Gently pull on the tabs to lift the SD Hard Drives out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
