This guide will show you how to remove the back panel of an Asus K200MA laptop.
-
-

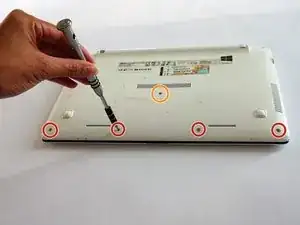

With the opening facing you, flip the laptop over and remove the following screws from the back panel:
-
Six 4mm Phillips screws using a Phillips #0 screwdriver.
-
One 12mm Phillips screw in the center using a Phillips #0 screwdriver.
-
-
-

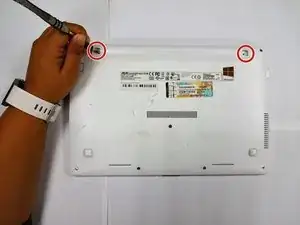

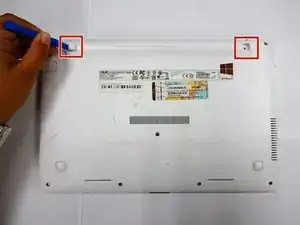

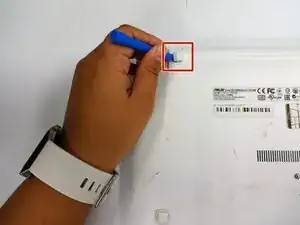

Using a plastic spudger, remove the two rubber stoppers closest to the hinge to reveal the screws underneath.
-
-
-

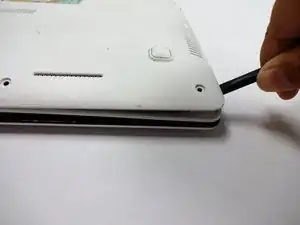

Using a plastic spudger (and a fair amount of force), pry the back panel up from the keyboard to separate.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
