Einleitung

This guide will assist in replacing the motherboard for an Asus K200MA laptop.

  1. 3slB2P4lkwY464Qp
    3slB2P4lkwY464Qp
    MuK2YocThXRK4ugK
    • With the opening facing you, flip the laptop over and remove the following screws from the back panel:

    • Six 4mm Phillips screws using a Phillips #0 screwdriver.

    • One 12mm Phillips screw in the center using a Phillips #0 screwdriver.

  2. IcJYYUC5DfbnRLaQ
    IcJYYUC5DfbnRLaQ
    MMJnc1H1MVHQRZbw
    • Using a plastic spudger, remove the two rubber stoppers closest to the hinge to reveal the screws underneath.

  3. yiniXHfNmajPNmhG
    • Remove the following screws:

    • Two 4mm Phillips screws using a Phillips #0 screwdriver.

  4. CMRpZVGjLBUJu4Cr
    CMRpZVGjLBUJu4Cr
    YnGDCxwsyvpLZ5Fw
    OpnhBGMtLeh2xiew
    • Using a plastic spudger (and a fair amount of force), pry the back panel up from the keyboard to separate.

    • You may have to use one spudger to wedge between the back panel and keyboard while using another to pry it open in a different spot.

  5. KqemhStxPk3jh5dK
    KqemhStxPk3jh5dK
    TByuoYsfTlI1AEOe
    • To disconnect the keyboard connectors from keyboard and back panel, gently pull wide keyboard connector out.

    • Gently pull the narrow connector away from the keyboard.

  6. MmRcUlWH4oi4XD6W
    MmRcUlWH4oi4XD6W
    lUOnRj3cssOdgQU1
    • Now that the keyboard connectors are unplugged, pull the keyboard off and away from the back panel hinges.

  7. lHkacUZxOKRHSKMA
    lHkacUZxOKRHSKMA
    BSqLvadjeGygKITC

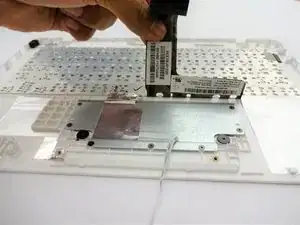

    • Lift the keyboard connector from the keyboard.

  8. RsUpLUfw2QObEuMN
    RsUpLUfw2QObEuMN
    Fbj4ZGbVj1ZMEU6Q

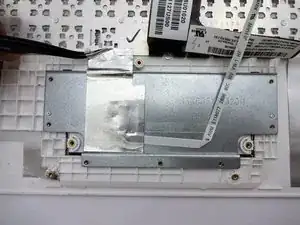

    • Lift the foil sheet.

  9. ZWmpoC3BaSXWULER
    ZWmpoC3BaSXWULER
    XZrBhZhZZCjorjLQ

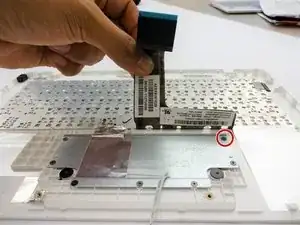

    • Remove the following screws:

    • Eight 3 mm screws using Phillips screwdriver.

    • Be sure to remove the screw underneath the keyboard connector.

  10. coStVL6shyNWI3rU
    • Remove the following screws:

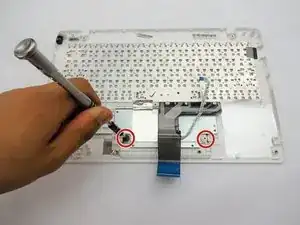

    • Two 2 mm screws using a Phillips #00 screwdriver.

  11. yDZTnbffIb2HwoTS
    yDZTnbffIb2HwoTS
    sQPyBWXssaufLaBS
    • Using a plastic spudger, remove the metal plate.

  12. 131ddCsKDOvVabjb
    131ddCsKDOvVabjb
    cTEILXciRrZsoTsL
    LbvjfaAhSyMnWKwV
    • Flip the keyboard over.

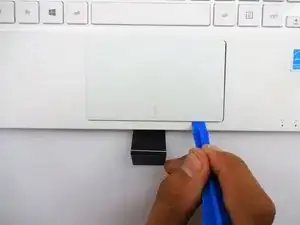

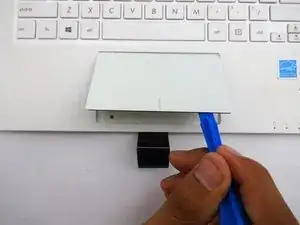

    • Using a plastic spudger, pry the track pad off the plastic piece underneath.

    • Don't be afraid to use some force in this step because the track pad and the plastic piece are glued together.

  13. cyKBNRpUBSPwHKKC
    cyKBNRpUBSPwHKKC
    vvnPBCgQE3nJ2eTg
    • Flip the computer over so that the side with the motherboard (large green piece) is laying face-up.

    • Remove the following screws from the middle and far ends of the battery:

    • Three 4mm Phillips screws using a Phillips #0 screwdriver.

    • The battery will be located closest to the screen.

  14. wSnC14ZE2I1rNIDR
    wSnC14ZE2I1rNIDR
    mnmYdHHEV3vp3TOI
    prI2mPJwAWR5nKSF
    • Gripping the wider left section, lift the battery up and away from computer.

  15. LVgn2pELUsIlfhRC
    LVgn2pELUsIlfhRC
    CoFTSZx1YIf34GCW
    • Locate the fan, two screws and two color coded wires in the bottom left corner of the computer.

  16. UU1oexm3pOV4BlbJ
    • Remove the following screws from the fan:

    • Two 4mm screws using a Phillips #0 screwdriver.

  17. RZdrnnHAwcarOuYU
    RZdrnnHAwcarOuYU
    WjCxf4WRcLWCQqjR
    • Firmly pull colored wires away from wire slot.

  18. thRElexIeUVOqcbq
    thRElexIeUVOqcbq
    uLIx2irrpJf5bhP5
    • After removing both the screws and color coded wires, lift fan out of place.

    • Tools such as spudgers or tweezers may be used for fan removal.

  19. 4CZxZMeimYtb4NS5
    4CZxZMeimYtb4NS5
    JBVhpVo2YXAaCb6N
    • Remove the following screws:

    • Four 4mm Phillips screws using a Phillips #0 screwdriver.

  20. AldYL4pStKgamy4S
    AldYL4pStKgamy4S
    fJhIoyaL3IuVQVLW
    • Remove by sliding hard driving right and away from the computer using the tag on the right side.

  21. H5QpHnZOrvOGry5T
    H5QpHnZOrvOGry5T
    IoBnRcnGsaLOHFLf
    • Locate and remove the following screws on the motherboard:

    • Eighteen 4mm Phillips screws using a Phillips #0 screw driver.

  22. pu3FnSbcpbBySPGJ

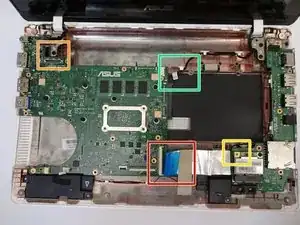

    • Locate all 4 connectors.

    • One connector will be a ribbon, a second will be color codded, a third will be a single gold cable, and a fourth will be a wide vertically placed connector.

  23. Gt3iG4YFChEtdSbc
    Gt3iG4YFChEtdSbc
    GikbTI5AZamYB16T
    KJmBBwUCNpfH32sL

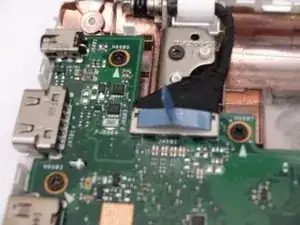

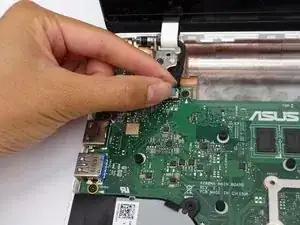

    • Use the blue ribbon to vertically pull the connector away from the mother board.

    • A firm amount of force will be required.

  24. PavffdTKj1xtFeku
    PavffdTKj1xtFeku
    TTchQQuq4uyDuGwZ

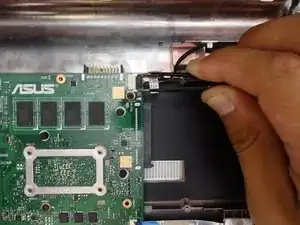

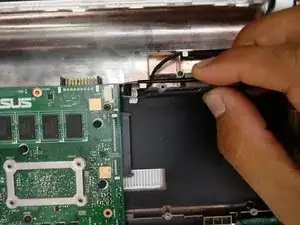

    • Pull the connector horizontally away from the socket.

  25. aAxSvNDhrQlKxBBa
    aAxSvNDhrQlKxBBa
    YDvZVdaPB625VyB2

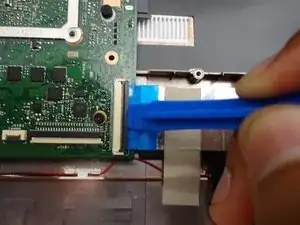

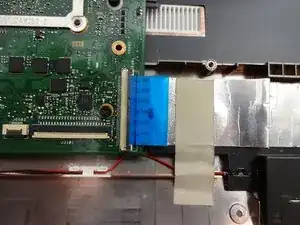

    • Lift the latch upwards to release the computer ribbon connector.

  26. TWLmuG6aPInNvjRi
    TWLmuG6aPInNvjRi
    ZVnct1qVFiMA64sK

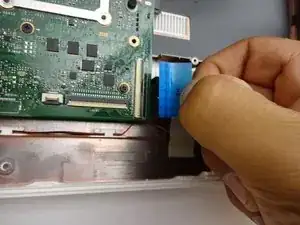

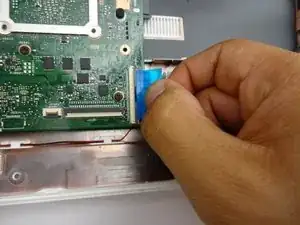

    • Horizontally pull the computer ribbon cable away from latch.

  27. uTIJN4OwiShGcCUG
    uTIJN4OwiShGcCUG
    2IbblQjjnNTU1tOh

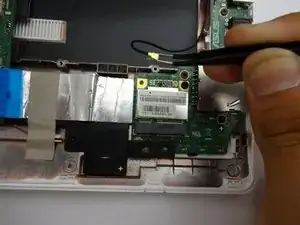

    • Vertically pull the cable from the head away from the placement.

  28. TmXSepJGaB6SW1fj
    TmXSepJGaB6SW1fj
    OWPDZiYMojEeLui5
    DCvPIHf4DHVcLvja

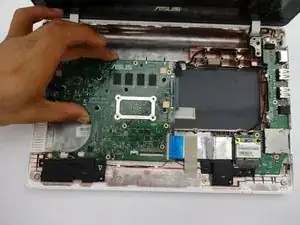

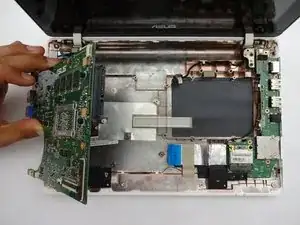

    • Once all screws and connectors are removed, gently lift the motherboard from computer.

    • Removing motherboard does not require firm force.

    • To prevent damage, DO NOT use tools to remove the motherboard.

  29. ZcyE6ZYKsC5FI4oe
    ZcyE6ZYKsC5FI4oe
    PwLfQgKRqvfro3AO

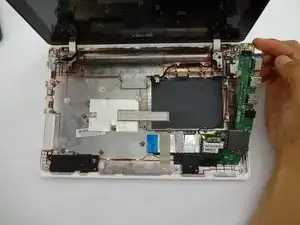

    • Remove the final piece of the motherboard on the right-hand side of the keyboard shell.

Abschluss

To reassemble your device, follow these instructions in reverse order.
