ASUS K53E-BBR1 Hard Drive Replacement

Geschrieben von: Matthew Merlo
  • Kommentare: 0
ASUS K53E-BBR1 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will tell you how to replace your hard drive, by opening up the bottom of the laptop. It is relatively simple, and only requires a screwdriver. Before doing this, you should back up all your information stored on the laptop.

  1. LTH3HCJ2rkZwsLeK

    • Flip the laptop over so you can see the battery.

  2. E4RVb5UkL1I4xHaU

    • Slide the lock on the right side of the battery to the right. If done correctly the slider will stay in place and there will be a red indicator.

  3. p4IIQVafTwKCtG6R
    p4IIQVafTwKCtG6R
    6Ibhwa6capp5oCPe
    CiFI3B3ZBNoxoLEY

    • Slide the other sliding lock on the left side of the battery to the left, and with your other hand slide the battery out from the laptop.

  4. QjGN1JQOBhlKNcKI
    QjGN1JQOBhlKNcKI
    AbjLHxH2JGPdMlXw

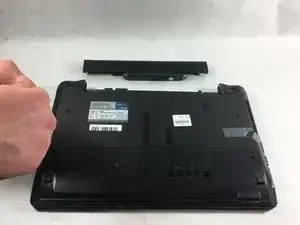

    • Remove the two 4mm Phillips #0 screws on either side of the laptop.

  5. JfASDCCxyMkrpVmo
    JfASDCCxyMkrpVmo
    cB5QpBxHZEhItRW5

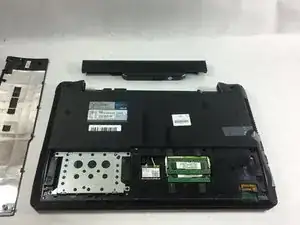

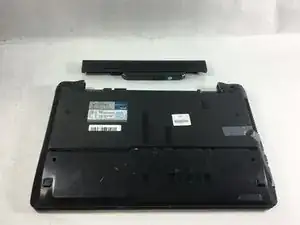

    • Slide the back panel towards you until it stops.

    • Lift the panel up out of the laptop casing.

  6. aHMHykfyN1EQQvlt

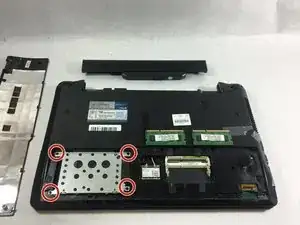

    • Remove the four 3mm Phillips #0 screws holding the hard drive in place.

  7. iagKHFvX2FS3Un13

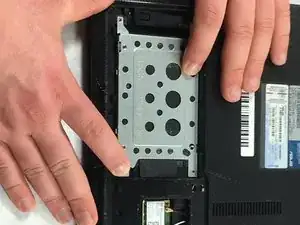

    • Disconnect the hard drive from the laptop by sliding it towards the outside edge.

  8. LPDoQlMBWTKRbmSm
    LPDoQlMBWTKRbmSm
    lqylALdx5PCgYJ2j

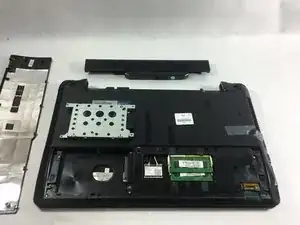

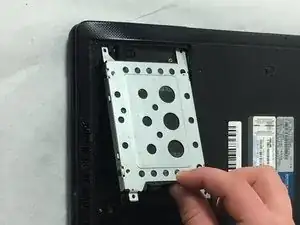

    • Grab hold of the black cloth tab and pull the hard drive out from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
