ASUS K53E-BBR1 Keyboard Replacement

Geschrieben von: Paulo Fortes
  • Kommentare: 0
ASUS K53E-BBR1 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

2 - 5 Minuten

Einleitung

This guide is intended to demonstrate how to replace a malfunctioning keyboard on the ASUS K53-E-BBR1. You will need an opening tool to remove the keyboard. Also be cautious of the ribbon cable connecting the keyboard to the laptop.

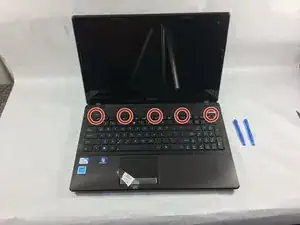

  1. CKB5A4QVVBYZI3Av

    • Lift the monitor up so that the keyboard is visible.

    • You will notice five spots on the top of the keyboard where the iFixit opening tool should be placed.

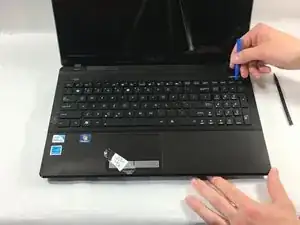

  2. 1KYKokPjAAhDmKjj
    1KYKokPjAAhDmKjj

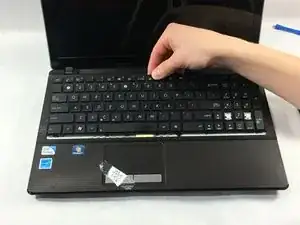

    JHX3fGWBxJpMLBBC
    DZyhMe5vEOB6aCEW

    • Use the iFixit opening tool on each of the designated spots to pry the keyboard apart from the palm rest.

    • You will hear a light "pop" sound each time you pry the keyboard.

    • Once the keyboard is loose, do not pull keyboard far (more than 3 inches) apart from the from the palm rest. There is a "bus" connector attached to the bottom.

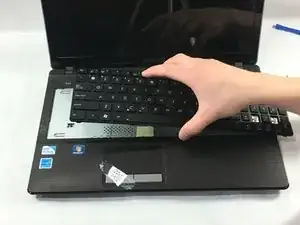

  3. gFnDUirGETjwLVs4

    • Carefully disconnect the "bus" connector from the laptop. Press on it with your thumb/index finger and slide it right along the surface of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
