Einleitung
This guide will tell you how to open up your laptop and replace your RAM. It is relatively simple and only requires a screwdriver.
Werkzeuge
-
-

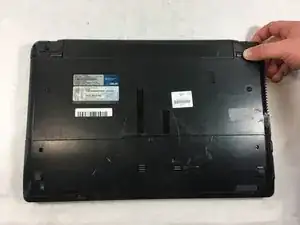

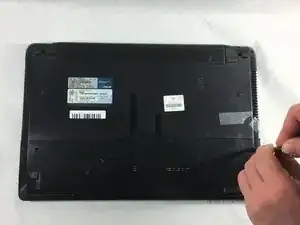

Slide the lock on the right side of the battery to the right. If done correctly the slider will stay in place and there will be a red indicator.
-
-
-

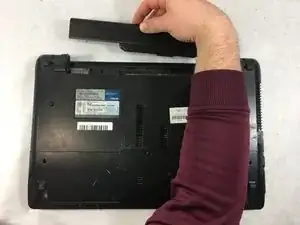

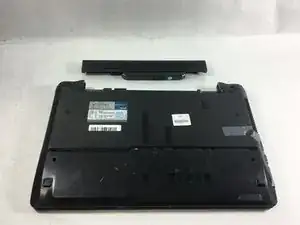

Slide the other sliding lock on the left side of the battery to the left, and with your other hand slide the battery out from the laptop.
-
-
-

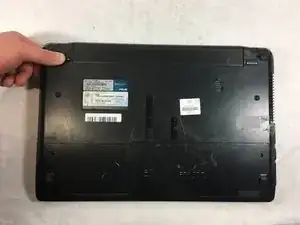

Slide the back panel backwards until it stops.
-

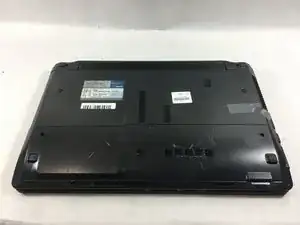

You can now lift the panel up and out of the laptop casing.
-
-
-

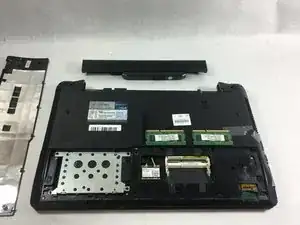

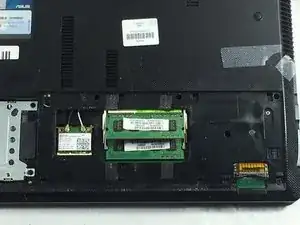

The RAM is now visible.
-

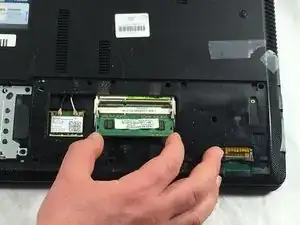

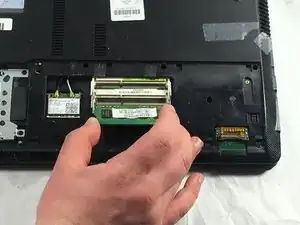

Remove the RAM by pressing out on both tabs visible on each side of the RAM.
-

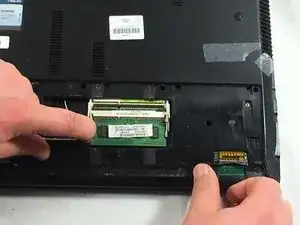

To work the tabs, take your finger tips and press outwards from the indents on the RAM.
-
-
-

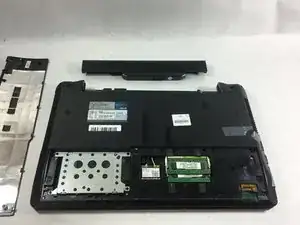

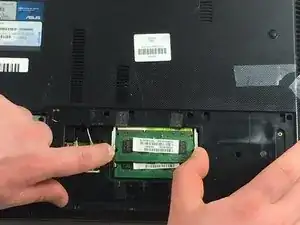

The RAM is now angled up and you can remove the RAM by pulling it out in the direction it is facing.
-

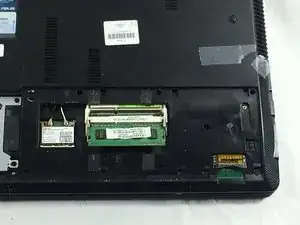

Gently Pull the RAM out of its connector without pushing down or pulling up.
-
To reassemble your device, follow these instructions in reverse order.
