ASUS MeMO Pad 7 (ME572C) Speakers Replacement

Geschrieben von: Efe Guldogan

Kommentare: 6

ASUS MeMO Pad 7 (ME572C) Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will show you how to replace the speakers for an Asus MeMO Pad 7. If you want to listen a music or watch a video and the speakers are not working properly, this guide will help you to replace both speakers on the tablet.

Werkzeuge

Schritt 1

Make sure your device is turned off. Then with a plastic opening tool, carefully remove the back panel by carefully working your way around the perimeter.
The panel will be glued on and requires pressure to open.

Schritt 2

After removing the rear panel, use a plastic openning tool to remove the frame of the tablet.
Start in the middle of the top side and insert a plastic opening tool between the screen and the frame.
Carefully run the plastic opening tool along all the edges of the tablet.

Schritt 3

When you take the rear panel and the frame out, place the rear panel and the frame away from the device.

You do not need to separately remove the back and the frame. You can do it in 1 step if you start around the screen and remove the frame and back together.

Visegradi Istvan - 22/12/18

Where can I find rear panel please help?

Simeon Tembo - 15/09/19

Exact, on peut déposer le volet arrière en 1 seul fois. Commencer sans outil, juste avec les mains en forçant légèrement sur un angle inférieur (droit ou gauche peut importe) afin de déboîter un premier clips-plastic. Puis avec un outil fin en plastique (pas de métal de préférence !) faire le tour de l’écran afin de déboîter tous les clips-plastic. Merci pour ce post.

Loïc MALECOT - 28/03/20

To keep the frame notches intact, pry the frame first sideways, then to the back, lifting the outside notches of the frame over the inside notches of the device.

My rear panel seems welded together with the frame, so came off as a whole. I noticed 8 inside/device notches of the total 4x6 notches broke in the process.

Before disassemble, I noticed in the middle on the longer side, next to the power button, already a gap, through which I saw the copper shining of the sidekeys part. Maybe because of temperature expansion or strain of the elastic corner clips of the sleeve I used.

Eduard - 04/08/20

Correction: “To keep the frame notches .. device.” = “Notches on the plastic motherboardchassis are snapped over notches of the outside frame locking both together. To keep the chassis notches intact, .. chassis.“

Eduard - 06/08/20

Schritt 4

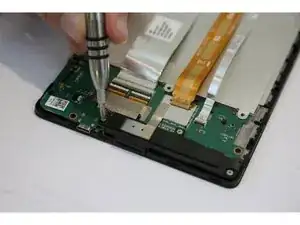

Disconnect the ZIF connectors to release the data cables holding the battery in. Use tweezers to do this.
You can also use your hand to remove ZIF connectors.
ZIF connectors are delicate so be careful when you are removing them.

Schritt 5

Find the place where the battery connector is. Disconnect the battery connectors by carefully pulling up on them using a spudger or plastic opening tool.

Schritt 6

Using a plastic opening tool carefully pry the battery loose. The battery is glued to the pad; slight pressure will be needed to remove the battery.
The casing of the battery is soft and can easily tear. Tearing can lead to the chemicals in the battery to leak out.

Schritt 7

After removing the battery from the device, locate the volume connectors on the side of the device.

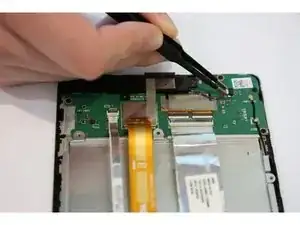

Using tweezers, carefully remove the volume connectors and place it to the side.

Schritt 8

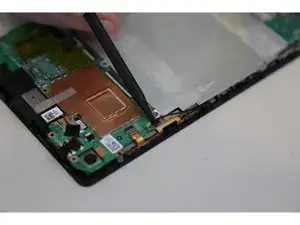

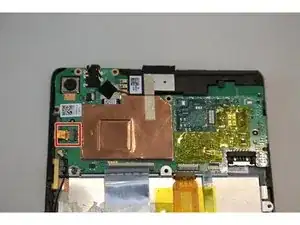

Locate the GPS antenna. Pry off the GPS antenna cable with a spudger.

Schritt 9

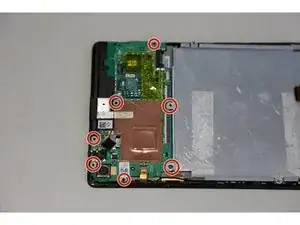

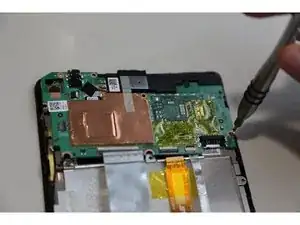

Locate seven 2mm Phillips #0 screws attaching the motherboard to the pad. Remove the screws with a Phillips #000 screwdriver.
Place your screws somewhere you will remember they are at.

There were eight screws on both of the motherboards i just swapped. The last one would be in the top left of the diagram.

mesanos - 15/01/18

Schritt 10

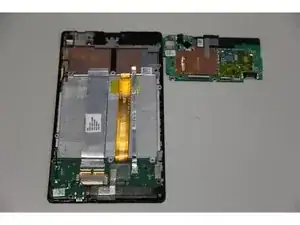

Once all the screws are taken out, you can remove the motherboard. Carefully, take the motherboard out with a plastic opening tool.

Schritt 11

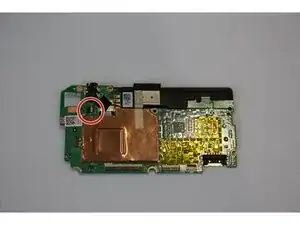

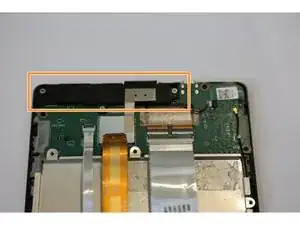

Locate the speaker connector on the motherboard.

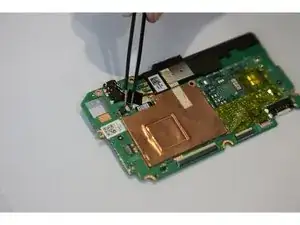

Using tweezers, carefully remove the speaker connector.

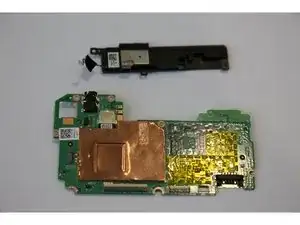

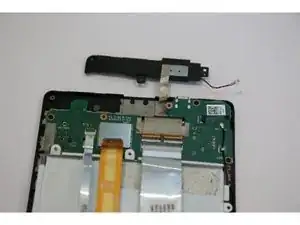

After removing the speaker connector, you can easily take the speaker out.
Because the speaker is on the motherboard, be careful not to damage any other parts.
There are two speakers on the tablet

Schritt 12

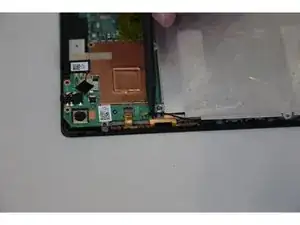

Locate the second speaker on the left side of the tablet.
Locate three 2mm Phillips #0 screws attaching the speaker to the pad. Remove screws with a Phillips #000 screwdriver.
While you are removing the screws, do not put pressure on the tablet. You may damage the touch screen.
Place your screws somewhere you will remember they are at.
