Einleitung
This guide will show you how to remove and replace the laptop's CD/DVD Drive. This may be necessary if your drive suffers some sort of hardware failure such as not ejecting or the inability for it to read disks.
Werkzeuge
-
-
Turn the laptop off and unplug all cables.
-
Flip over so the bottom is facing you.
-
Remove the ten 3mm Torx T5 screws from the bottom cover.
-
-
-
Use a spudger to wedge between the laptop and bottom cover—lift upwards to pry open.
-
Run the spudger along the perimeter of the bottom cover to remove.
-
-
-

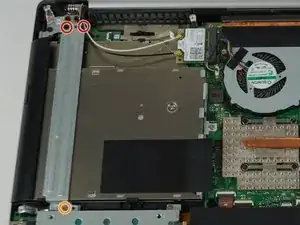

Remove the two 4mm black Phillips #1 screws from the top of the CD/DVD bracket.
-
Remove the single 4mm silver Phillips #1 screw from the bottom of the CD/DVD bracket.
-
Remove the CD/DVD bracket.
-
To reassemble your device, follow these instructions in reverse order.
