ASUS N550JK-DS71T Laptop RAM stick Replacement

Geschrieben von: Steven Hahn
  • Kommentare: 0
ASUS N550JK-DS71T Laptop RAM stick Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

7 Minuten

Einleitung

This guide will show how to remove and replace the RAM on your Asus N550JK-DS71T laptop.

  1. cbeDDuEwmvDxMA2H
    cbeDDuEwmvDxMA2H
    XmEA6XNWGATlJ52M

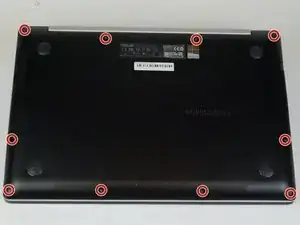

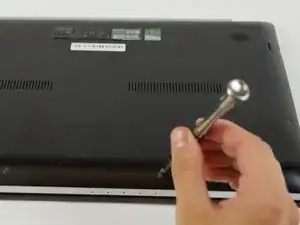

    • Turn the laptop off and unplug all cables.

    • Flip over so the bottom is facing you.

    • Remove the ten 3mm Torx T5 screws from the bottom cover.

  2. 5mHYKtFjMQvJnjHg
    5mHYKtFjMQvJnjHg
    4WvvowAY3lSHvKMQ

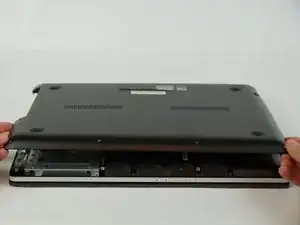

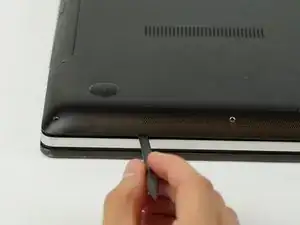

    • Use a spudger to wedge between the laptop and bottom cover—lift upwards to pry open.

    • Run the spudger along the perimeter of the bottom cover to remove.

  3. utkVhDnmIVCwmNH4
    utkVhDnmIVCwmNH4
    vDg6KSpIUg4EIhmg

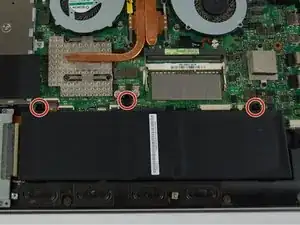

    • Remove the three 4mm JIS #0 screws from the battery.

  4. jYjR2OaeY1BYnEQY
    jYjR2OaeY1BYnEQY
    qqFHN4ugSEay2EO6

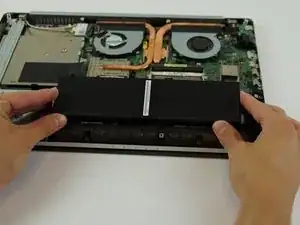

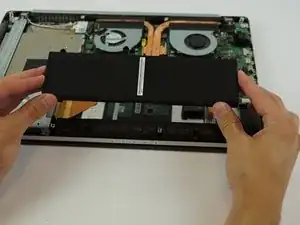

    • Using both hands, lift the battery vertically out of the device.

  5. 13qJEmWcSyOEbsIt

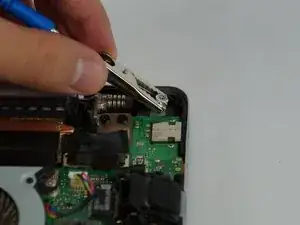

    • Put on anti-static wristband and attach clip-end to any metal screw insert.

    • The wristband is recommended when working closely with circuit boards due to potential static discharge.

  6. 54vHNdQkd5vYJfxH
    54vHNdQkd5vYJfxH
    IcclkKDhaspHKJ1Q
    eOwEOVsKRtoXHVgE

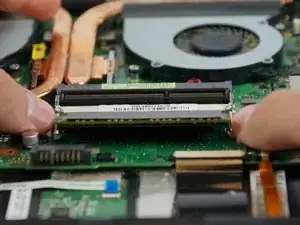

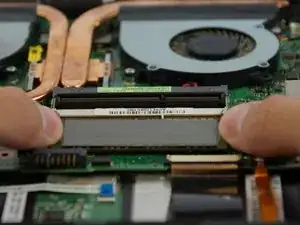

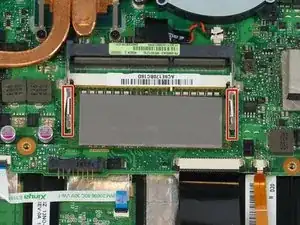

    • The RAM will be secured by two metal clips surrounded by white plastic.

    • Spread the metal clips and the RAM stick will pop up. Then gently remove the RAM stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
