ASUS N56JN Laptop Hard Drive Replacement

Geschrieben von: Sebastian Jordan
  • Kommentare: 2
ASUS N56JN Laptop Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

Whether your hard drive died, you need more space, or need faster speeds, this guide will show you how to replace the hard drive in your ASUS N56JN Laptop.

  1. cJRGKqs6Fh11ZKa4
    cJRGKqs6Fh11ZKa4
    ClH4PCfRveR2uiUi
    FDgJYYYbvbw66wCU

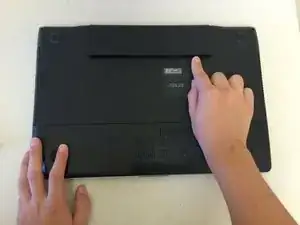

    • To prevent injury, make sure the laptop is unplugged before removing the battery.

    • To prevent data loss, make sure the laptop has fully shut down before removing the battery.

    • Pull the switch on the back of laptop in the direction of the arrow.

    • If done correctly the battery should pop out. Lift the battery to remove it.

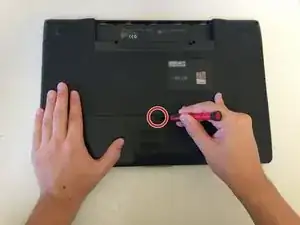

  2. Lig6LSMB4sR3aX15
    Lig6LSMB4sR3aX15
    vaHs5PMhSPSQiWkK

    • Use the screwdriver to remove the rubber cap on the top of the backplate.

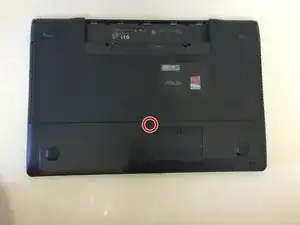

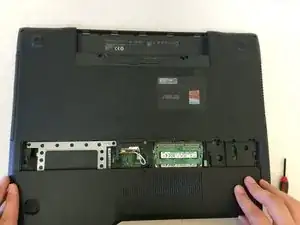

  3. Sc1p1RymMcmf5Dqk
    Sc1p1RymMcmf5Dqk
    xG2GDgXCOAD6gqyY
    IclWZwPoPRDGZKIH

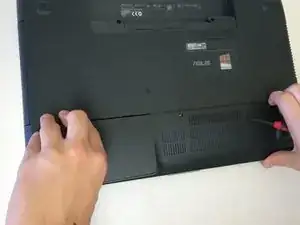

    • Remove the screw that was uncovered.

    • Pull the backing plate away from the laptop.

    • This will take a fair amount of force.

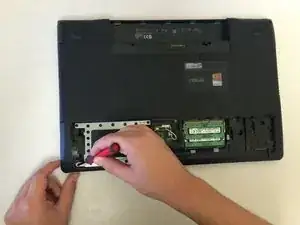

  4. J4ic3jJl5gKtnGRO
    J4ic3jJl5gKtnGRO
    LRCOInswYZR1oBKR
    AOSqvpwVmZpanygg

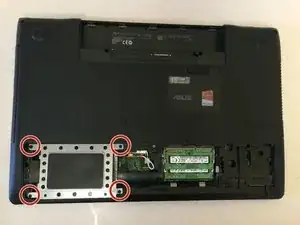

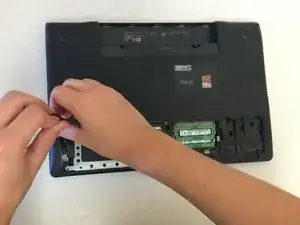

    • Remove the four screws located in the corners of the metal bracket.

    • Three of the four screws are the same size. The exception is the bottom left screw, which is significantly shorter. Make sure to put the short screw where it belongs when re-assembling.

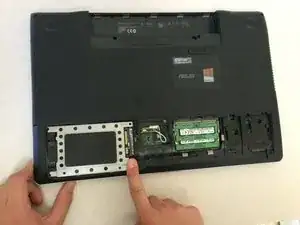

  5. TOZoyQxTaZK32pln
    TOZoyQxTaZK32pln
    DWuHXxxZ5JgKnT53
    k1ggHjfNrX2ff2Zl

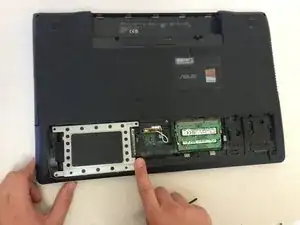

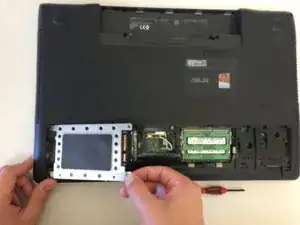

    • Push the hard drive away from the center until fully disconnected.

    • Lift the hard drive from the bottom right tab to remove it from the laptop.

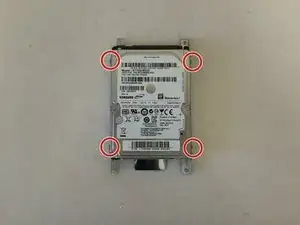

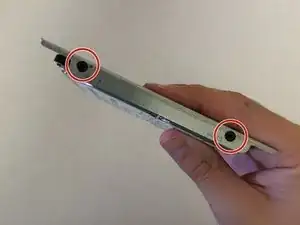

  6. dbntVrTVwNJcAMfc
    dbntVrTVwNJcAMfc
    PJWsfoGWQKKx1Zfb
    vPFIl3sFIRFAgtKp

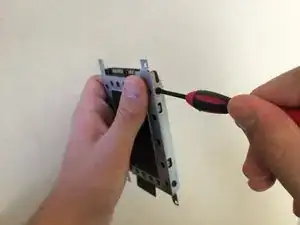

    • Remove the four screws on the side of the hard drive and bracket.

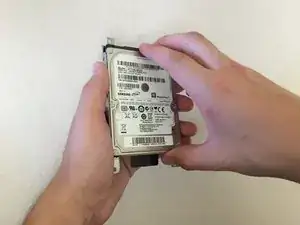

  7. 1y3PWgNQylarXFC4
    1y3PWgNQylarXFC4
    L4fdngJF3GVTcKNy

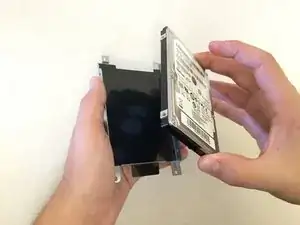

    • Remove the hard drive from the bracket.

  8. AkUYjBnI3s2KGHgo
    AkUYjBnI3s2KGHgo
    n6y1ZelqOWCnbveE

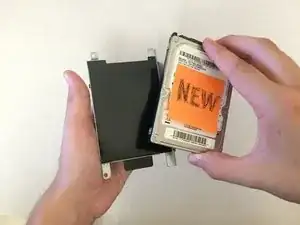

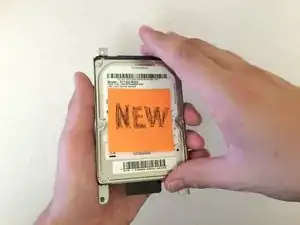

    • Insert the new hard drive into the bracket.

Abschluss

To reassemble your device, follow instructions 1-6 in the reverse order.
