ASUS N56JR-MH71 Optical Drive Replacement

Geschrieben von: Ruben Lopez
  • Kommentare: 0
ASUS N56JR-MH71 Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 - 5 Minuten

Einleitung

If your optical drive is damaged or if you wish to upgrade it, this guide will show you how to replace the optical drive. A metal spudger will be a tool used for this guide.

  1. kNu5XmP16CGdQske
    kNu5XmP16CGdQske
    ZsAEIDOaQc45vnFy

    • Push the battery latch.

  2. XU5vvKOTZir2B5Z1

    • Keep the battery latch held while you remove the battery.

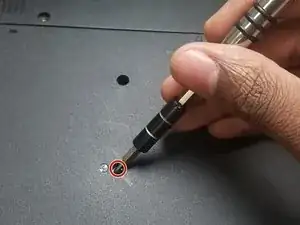

  3. R5w55TiZyUfPQ1jI

    • Remove the one screw above the battery port.

    • This device was missing its screws on the back cover when we received the device. As a result, we do not know what head type the screws are, along with their lengths.

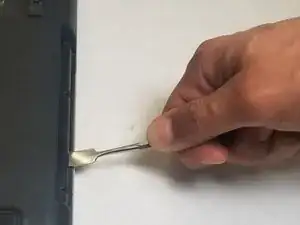

  4. lPECuj4Kdq4cSpWW

    • Use a metal spudger to dislodge the optical drive from the connector.

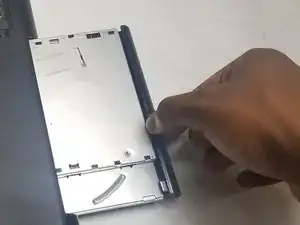

  5. bVKS1PqFnwNLmb3h

    • Pull out the optical drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
