Einleitung

Replace the battery from your PadFone X.

  1. YfpoSxDkrDSwopac
    YfpoSxDkrDSwopac
    KBK2qnjPv3lXgXDp

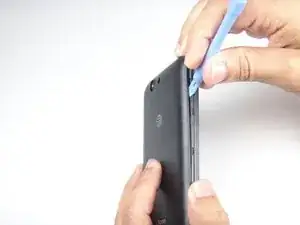

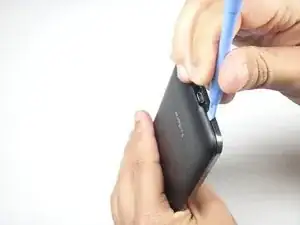

    • Using the blue plastic opening tool, insert the tip into the crease between the back cover and the phone and pry it upwards.

    • Work your way around the phone until the entire back cover is loose.

  2. gR5GwErVPS1iU6xn
    gR5GwErVPS1iU6xn
    C2SMN425NgxTTiFl

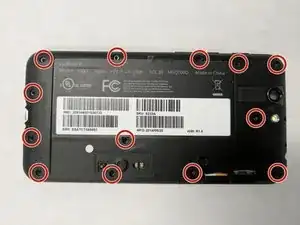

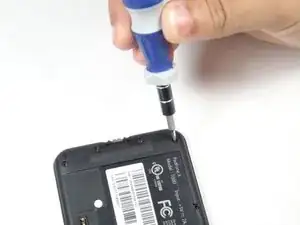

    • Remove the 13 - 3.6 mm screws using the Torx T5 bit in the screwdriver.

  3. VdcEWh1fOhmXqCvy
    VdcEWh1fOhmXqCvy
    sDOkpRWxBxtGhpxh

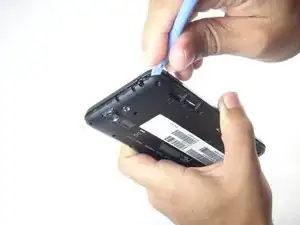

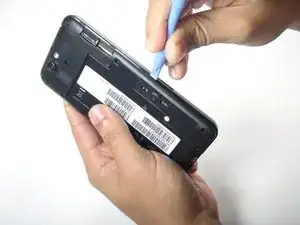

    • Using the blue plastic opening tool, insert the tip into the crease between the mid-frame and the phone and pry it upwards.

    • Work your way around the phone until the entire back cover is loose and remove the mid-frame.

  4. lNwNNxAVTZIQeall
    lNwNNxAVTZIQeall
    6NpfRSXpCqsENLPQ

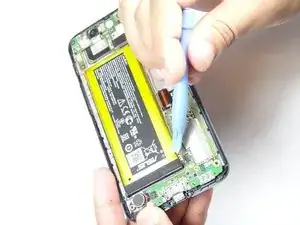

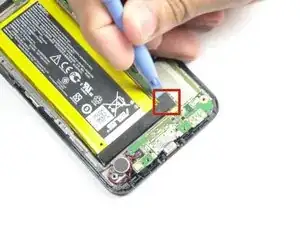

    • Using the blue plastic opening tool, gently disconnect the battery cable from the motherboard.

    • Applying too much force may damage the connector.

  5. HwlWpdaqQUZKDIjO
    HwlWpdaqQUZKDIjO
    2SL4XNPPQ5IVQebg

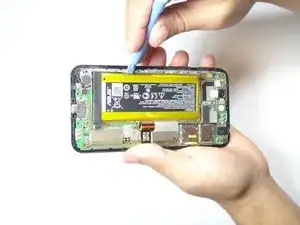

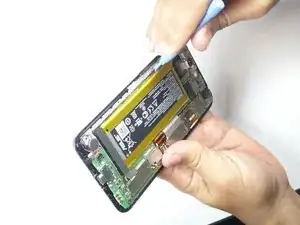

    • Use the blue plastic opening tool to pry the battery pack from the phone. Pry along edge away from the motherboard as this might damage the motherboard.

    • The battery pack is held on by double sided tape, you will have to apply some force when prying out the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
