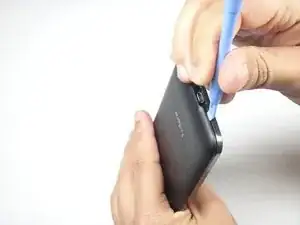

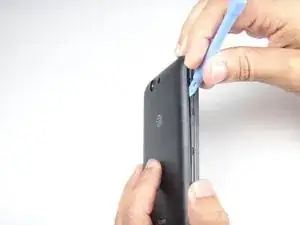

Einleitung

  1. XD5eBQUZwaKwnXmI
    XD5eBQUZwaKwnXmI
    1qy4TeTGe1bfitnE
    • Using the blue plastic opening tool, insert the tip into the crease between the back cover and the phone and pry it upward.

    • Work your way around the phone until the entire back cover is loose.

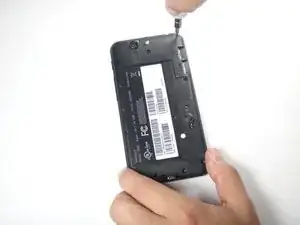

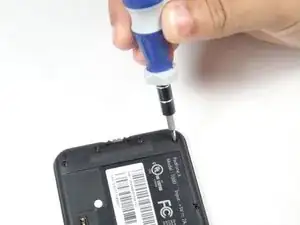

  2. KC6xVvsR2fpZlSjf
    KC6xVvsR2fpZlSjf
    aVyKysKvk6T6uRun
    DjVplBXg3k1MteJZ

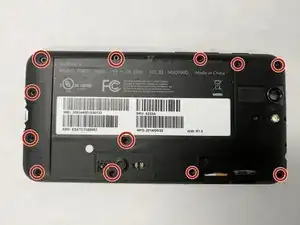

    • Remove the thirteen 3.6 mm screws using the torx T5 bit in the screwdriver.

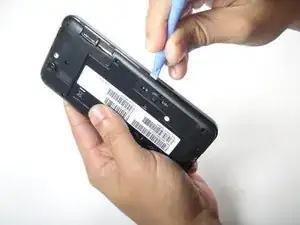

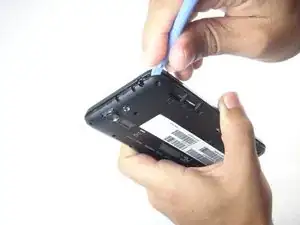

  3. bL6WwBKN6Tua6UFk
    bL6WwBKN6Tua6UFk
    MtNDv3WNuVJRRNkt
    • Using the blue plastic opening tool, insert the tip into the crease between the mid-frame and the phone and pry it upwards.

    • Work your way around the phone until the entire back cover is loose and remove the mid-frame.

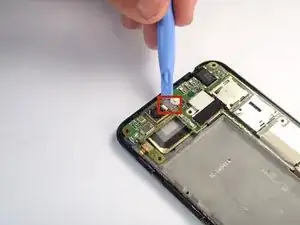

  4. KRLANojld4prAEWl
    • Use the blue plastic opening tool to gently pry the camera connector up from its socket on the motherboard.

    • Applying too much force may damage the connector.

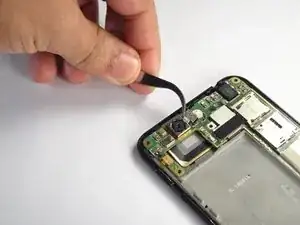

  5. DrGP1u1uHcFaAUGY
    • Using the tweezers, remove the rear camera from the Padfone X.

    • The camera is lightly glued to the motherboard. You may need to use a plastic opening tool to loosen the adhesive under the camera.

  6. LtdQhTse6S4DLKfI
    • Once the camera has been pulled out, replace the old camera with a new camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
