ASUS PadFone X Station Docking Connector Replacement

Geschrieben von: Daniel
  • Kommentare: 0
ASUS PadFone X Station Docking Connector Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

30 - 45 Minuten

Einleitung

You will be looking for water damage on the USB connector and replacing the 1413 USB/ANT docking connector.

  1. IUwYeJRpjKYEVT22
    IUwYeJRpjKYEVT22
    MMGBNewDq6d1ctdZ

    • Using the plastic opening tools, insert it into the edge and pry open.

    • Use hands to help pull the back off from the front if needed.

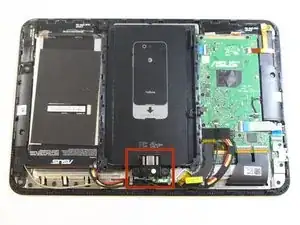

  2. ZtpiHiG5IRLMBKPx
    ZtpiHiG5IRLMBKPx
    U4DFPc2CyJXT2jrH

    • Locate the CON101

    • The white sticker indicates water exposure. White=none, Red=Exposure

  3. VHvbXZNP5U3mcvjE

    • Remove two Phillips screws

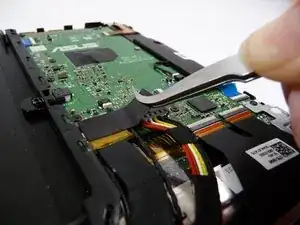

  4. kaPWiGiUVxQH1gXT
    kaPWiGiUVxQH1gXT
    NZmJ5FHVXfkNALPW

    • Locate P92L on CON1504

    • Gently peel back and remove plastic tape

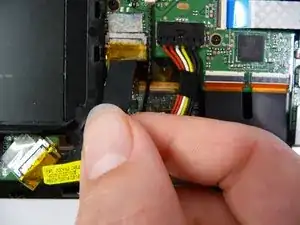

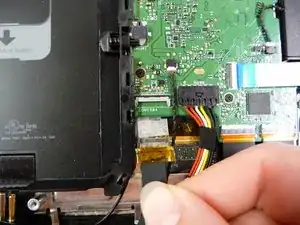

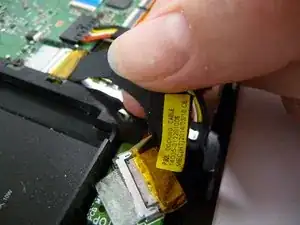

  5. 31pUkrHXvtlSFgRY
    31pUkrHXvtlSFgRY
    PmwEi4U6tOWoZfMW
    G246xwP1LnSBxYRH

    • Gently Pull P92L With Fingers From CON1504

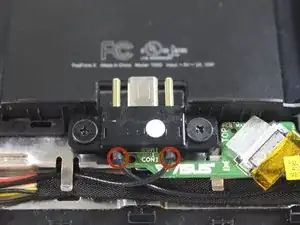

  6. uR4ChgTqoqfAXRZx

    • These are the antenna wires.

    • Trace these wires to locate the two antennas.

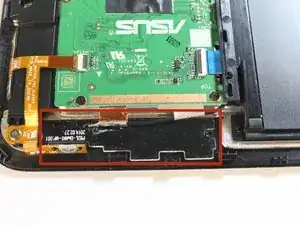

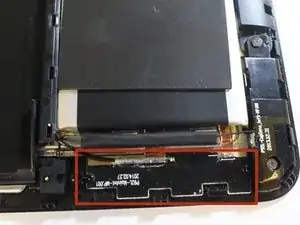

  7. YiP5nlAJqK1Srbxo
    YiP5nlAJqK1Srbxo
    GQCQuxKYIe1laksQ

    • Locate the two antennas

    • Desolder the two antenna wires

Abschluss

To reassemble your device, follow these instructions in reverse order.
