ASUS PadFone X Station USB Charging Port Replacement

Geschrieben von: Daniel
  • Kommentare: 1
ASUS PadFone X Station USB Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. IUwYeJRpjKYEVT22
    IUwYeJRpjKYEVT22
    MMGBNewDq6d1ctdZ

    • Using the plastic opening tools, insert it into the edge and pry open.

    • Use hands to help pull the back off from the front if needed.

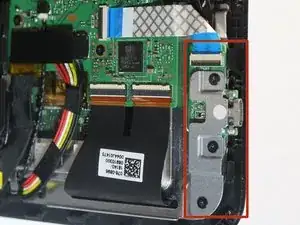

  2. jgI2GW3WbdMunJac
    jgI2GW3WbdMunJac
    yOBATrDiBaANIghR

    • Locate CON2002

    • Check water indicator on USB Charging Port

    • A white indicator means there is no water damage. A red indicator means there was water damage.

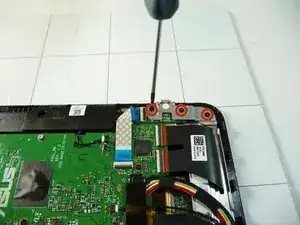

  3. xxBQjEvOHbdKwBK2

    • Locate and remove three Phillips screws

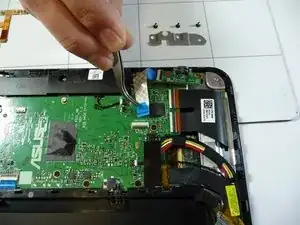

  4. dboJXBDXCegJrE5E

    • Use a pair of tweezers to disconnect E893821

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Daniel

Mitglied seit: 07/10/14

338 Reputation

Ein Kommentar

Does anyone have any idea where a replacement USB port can be found. Mine isnt water damaged but rather one of the pins broke off and its hanging out of the cable. Now the phone will not charge.

rich -
