ASUS Padfone X mini Station Front Camera Replacement

Geschrieben von: Nuri Syahirah Mohd Safian
  • Kommentare: 1
ASUS Padfone X mini Station Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 30 Minuten

Einleitung

Is your device selfie camera failing to take photos? Probably it is time to get a new front camera. Use this manual to replace the front camera lens assembly.

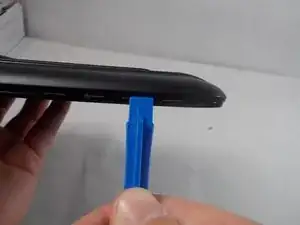

  1. gKFkZRbqRThskU3l

    • Insert the plastic opening tool between the edge of the screen and the back cover.

    • Gently pry them apart. Use hands to pull them apart if necessary.

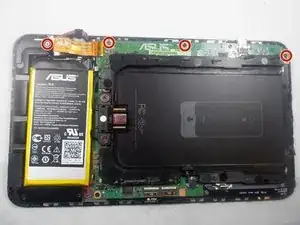

  2. GPFElHINmfTL6gD5

    • Use a Phillips #00 screwdriver to remove the three 2.5mm screws that secure the speaker case to the motherboard.

    • Remove all tape covering the screws before removing them.

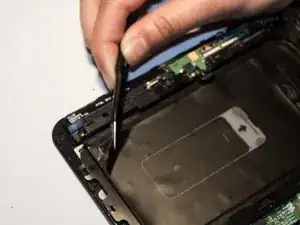

  3. bxyFKd1yMdjYX1hp

    • Use tweezers to remove cover sticker on the dock station.

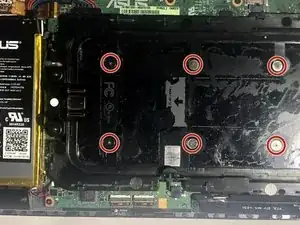

  4. XXY1mdcZXPoaZC21

    • Use a Phillips #000 screwdriver to remove the six 0.6mm screws that secure the dock station case to the motherboard.

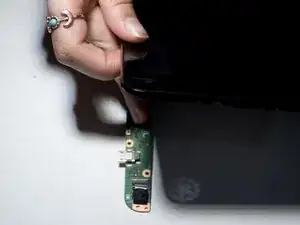

  5. ylSxPwxKKcgETEnK

    • Flip the device upwards.

    • Gently push the right side of motherboard down away from the dock station.

    • Do not push the motherboard so hard as it is still attached to a connector. Excessive force applied might cause external damage to it.

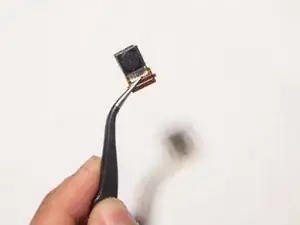

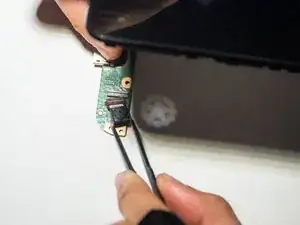

  6. sKlVIPdKGXALmGgp
    sKlVIPdKGXALmGgp
    mUiiZV3NXSMZEs6U

    • Use tweezers to detach the camera from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
